| Manufacturer | Skoda |
|---|---|
| Model | W 200 HC |
| Year | 1989 |
| Location | India
|
Manufacturer: Skoda
Model: W 200 HC

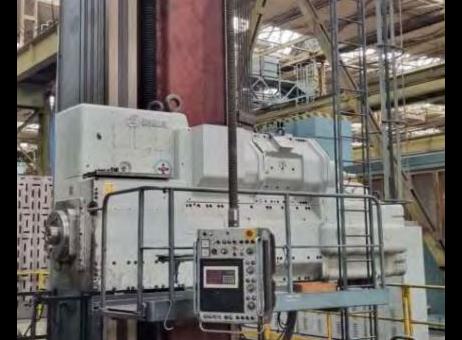

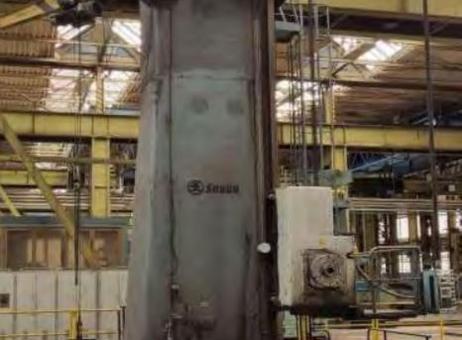

Type: Horizontal floor boring machine
Overview:
This listing describes a Skoda W 200 HC horizontal floor boring machine imported from the Skoda plant in Czechia. The machine is shown in the available documentation as having been imported in 2023 and commissioned in April 2025. The current description lists the machine’s condition as excellent and well-maintained and notes compliance with international quality standards.
Key technical specifications:
- Ø boring spindle: 200 mm
- Toolholder for boring spindle: ISO 60
- Spindle speed: 0,8 – 800 U/min
- Main drive power: 77 kW
- Max. torque (milling spindle): 35.000 Nm
- X-axis (cross movement of the column): 8.000 mm
- Y-axis (headstock movement perpendicular): 5.120 mm
- Z-axis (support sleeve excavation): 1.600 mm
- W-axis (boring spindle movement): 400 mm
- Total displacement of drill carriage (Z + W): 2.000 mm
- Support sleeve dimensions: 520 x 540 mm
- Width of bed guide: 2.000 mm
Feed ranges:
- Drilling feed range (Z; W): 0,75 – 3.000 mm/min
- Milling feed range (X; Y): 0,75 – 6.000 mm/min
Electrical / site requirements:
- Voltage / frequency: 380V / 50Hz
- Total power requirement: 180 kW
- Space requirements (approx. L x W x H): ~ 16 x 6 x 8,3 mm
Additional information and options:
- Machine is equipped with ball screws and is described as convertible to CNC.
- Digital readout (DRO) present on X, Y and Z axes as stated.

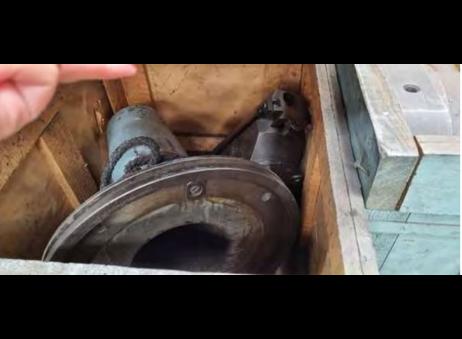

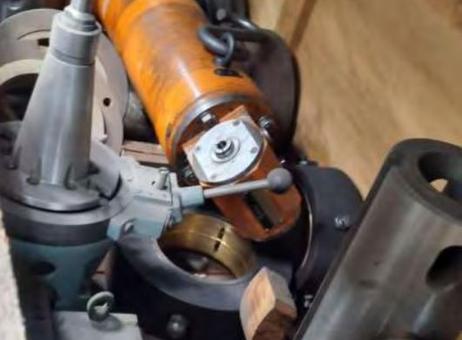

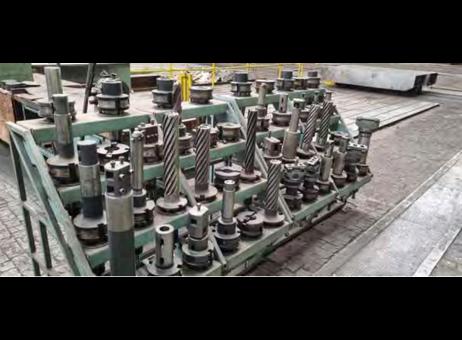

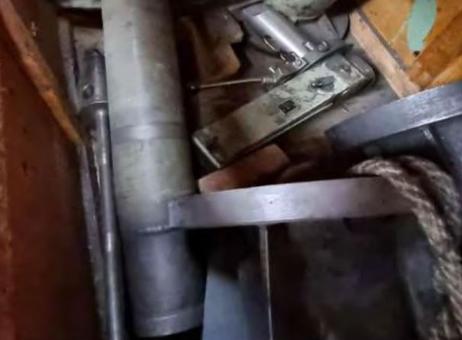

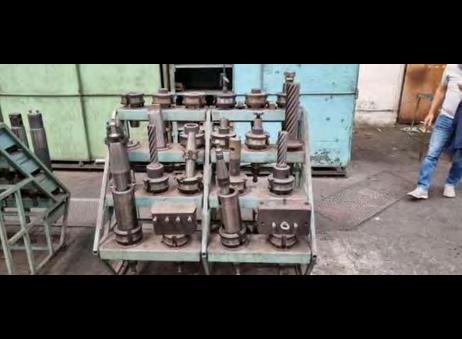

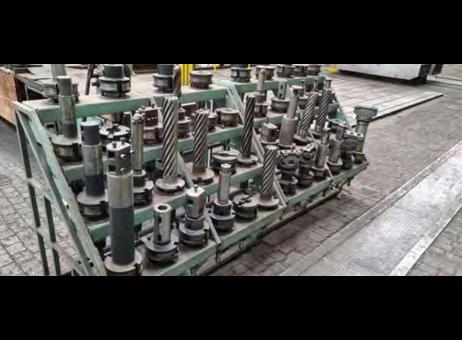

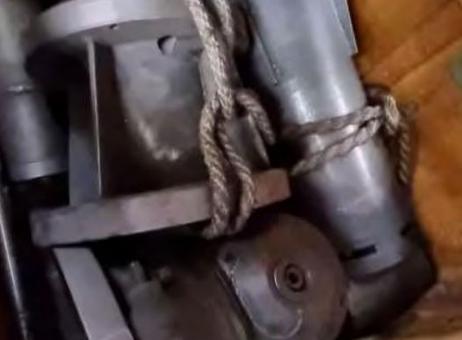

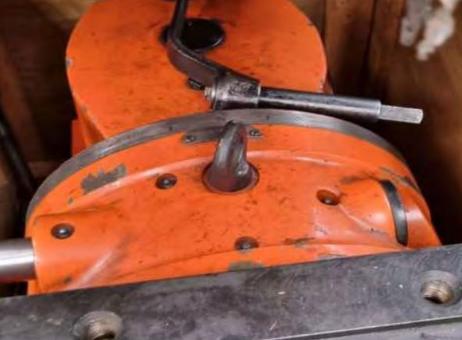

- Optional accessories listed: 8 milling heads of different configurations and a set of 70 miscellaneous tools for various operations.

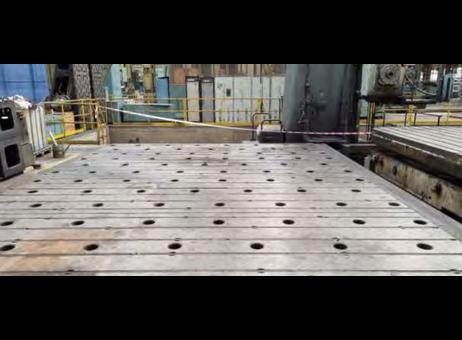

- Floor plates: four pieces, each 1850 mm wide x 5600 mm long.
- Rotary table can be supplied at additional cost, per the current listing.
Notes:
Information above is taken from the current product details provided for this unit. No additional testing, operational guarantees, or refurbishment claims are made beyond what is stated in the listing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Skoda
Model W 200 HC
Technical specifications:
Ø Boring spindle: 200 mm
Toolholder boring spindle: ISO 60
Spindle speed: 0,8 – 800 U/min
Main drive power: 77 kW
Max. Torque (Milling spindle): 35.000 Nm
Driveways:
X- Axis (cross movement of the column): 8.000 mm
Y- Axis (headstock movement perpendicular): 5.120 mm
Z- Axis (support sleeve excavation): 1.600 mm
W-Axis (boring spindle movement): 400 mm
Total displacement of drill carriage (Z+W): 2.000 mm
Support sleeve dimensions: 520 x 540 mm
Width of bed guide: 2.000mm
Feed range
Drilling feed range (Z; W): 0,75 – 3.000 mm/min
Milling feed range (X;Y) 0,75 – 6.000 mm/min
Electrical version:
(Voltage/frequency: 380V/50Hz
Total power requirement: 180 kW
Space requirements approx.(L x W x H): ~ 16 x 6 x 8,3 mm
Type: Horizontal Floor Boring Machine
Origin Imported Directly from Skoda Plant in Czechia
Year of Import: 2023
Commissioned in April, 2025
Current Condition: Excellent, well-maintained, and compliant with international quality standards
Operational Status: Fully functional and production-ready
Additional Information
- Machine has Ball Screw and can be easily converted to CNC.
- Machine has DRO in X, Y & Z Axis presently.
Accessories (Optional)

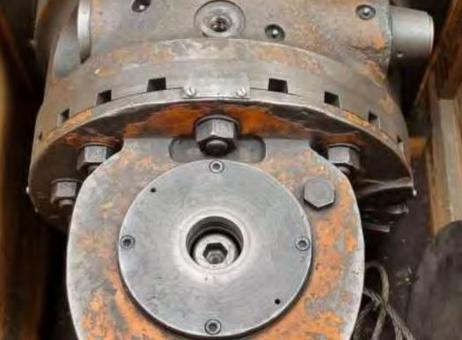

- 8 milling heads of different configurations.

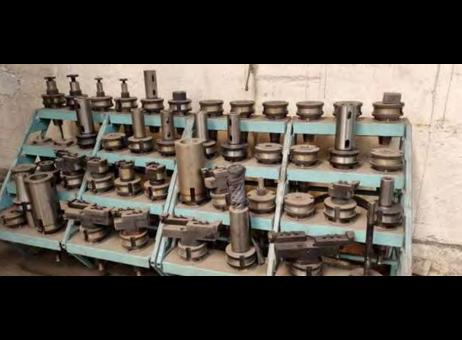

- 70 miscellaneous tools for different operations.
Floor Plates
- 1850 mm Wide X 5600 mm Long = 4
NOTE: The information contained herein is provided in good faith, but however due to unforeseen errors or omissions cannot be binding as to accuracy.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
