Contact us to receive an offer.
| Manufacturer | Škoda |
|---|---|
| Model | W 200 H + N |
| Year | 1983 |
| Location | Czech Republic
|
| Category | Borers - floor type boring machines |
| Spindle diameter | 200 mm |
| Spindle motor power | 77 kW |
| Overhauled | no |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | in production |
| Last availability date | 26/10/2026 |
| Product id | P220831002 |
| Language |
Škoda W 200 H + N
Desková vyvrtávačka Škoda W 200 H + N
Škoda W 200 H + N
Škoda W 200 H + N Plattenbohrwerk
Škoda W 200 H + N
Škoda W 200 H + N Floor type boring machine
Mandrinadora Škoda W 200 H + N
Aléseuse à montant mobile Škoda W 200 H + N
Škoda W 200 H + N
Škoda W 200 H + N
Alesatrice a montante mobile Škoda W 200 H + N
Škoda W 200 H + N
Škoda W 200 H + N
Używana wytaczarka Škoda W 200 H + N
Škoda W 200 H + N
Škoda W 200 H + N
Škoda W 200 H + N Горизонтально-расточной станок
Škoda W 200 H + N
Škoda W 200 H + N
Zemin tipi borverk makinesi Škoda W 200 H + N
|

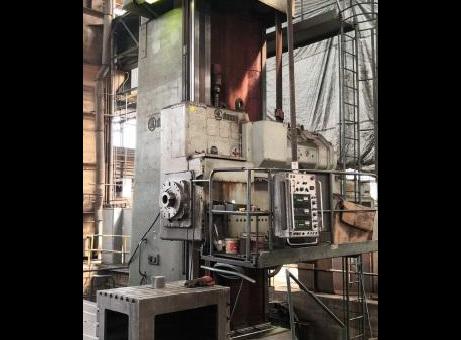

This Škoda W 200 H + N is a floor-type boring machine manufactured in 1983, designed for heavy-duty machining tasks. It features a large base plate measuring 12,800 mm in length and 5,665 mm in width, providing a stable and spacious work area. The machine is equipped with a vertical spindle capable of handling a spindle diameter of 200 mm, driven by a powerful 77 kW electric motor. The spindle operates within a speed range of 0.8 to 630 revolutions per minute, allowing for versatile machining operations including drilling and milling.
The spindle taper is M 120, with a maximum drilling depth of 2,000 mm and a maximum quill extension of 1,600 mm. The machine supports a variety of thread types, including metric and Whitworth, with thread sizes ranging from 0.5 to 12 mm metric and 1 to 28 turns per inch for Whitworth threads. The spindle vertical travel on the stand is 3,150 mm, while the stand travel on the bed extends up to 6,000 mm, accommodating large workpieces.

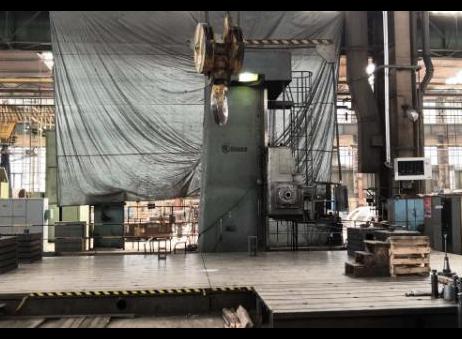

The feed rates vary between 0.63 to 2,500 mm/min for drilling and milling and up to 4,000 mm/min for other feed operations. The machine includes a wide, flat worktable and is equipped with an overhead hoist system, facilitating the handling of heavy parts. A vertical column structure supports the spindle head, which features a control panel mounted on the right side.

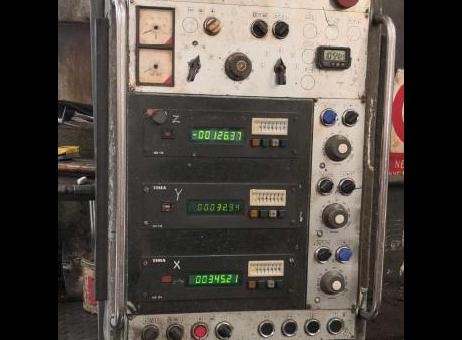

The control panel is fitted with multiple dials, switches, and digital readouts for X, Y, and Z axes, with values displayed to assist in precise machining. It also includes a red emergency stop button for safety. The machine is currently located in an industrial warehouse environment; it shows some signs of use such as dust and surface wear with minor rust, but no visible severe damage. Delivery terms are to be agreed upon.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Working spindle diameter 200 mm Spindle taper M 120 Maximum spindle drilling depth 2,000 mm Maximum quill extension 1,600 mm Spindle revolutions in the range 0.8 – 630 min-1 Feeds in the range: drilling and milling 0.63 – 2,500 mm/min 0.63 – 4,000 mm/min Spindle electric motor power 77 kW Threads: metric Whitworth 0.5 – 12 mm 1 – 28 turns/1“ SPINDLE VERTICAL TRAVEL ON STAND 3,150 mm STAND TRAVEL ON BED 6,000 mm DIMENSION BASE PLATES 12,800 x 5,665 mm DELIVERY TERMS The machine is currently in operation. Delivery date as agreed.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 480 |
| Last activity | Oct. 30, 2026 |
Working spindle diameter 200 mm Spindle taper M 120 Maximum spindle drilling depth 2,000 mm Maximum quill extension 1,600 mm Spindle revolutions in the range 0.8 – 630 min-1 Feeds in the range: drilling and milling 0.63 – 2,500 mm/min 0.63 – 4,000 mm/min Spindle electric motor power 77 kW Threads: metric Whitworth 0.5 – 12 mm 1 – 28 turns/1“ SPINDLE VERTICAL TRAVEL ON STAND 3,150 mm STAND TRAVEL ON BED 6,000 mm DIMENSION BASE PLATES 12,800 x 5,665 mm DELIVERY TERMS The machine is currently in operation. Delivery date as agreed.
