Contact us to receive an offer.
| Manufacturer | ŠKODA |
|---|---|
| Model | W 160 G |
| Year | 1978 |
| Location | Czech Republic
|
| Category | Borers - floor type boring machines CNC |
| CNC | MEFI |
| X travel | 6000 mm |
| Y travel | 2500 mm |
| Z travel | 1250 mm |
| Spindle taper | |
| Spindle diameter | 160 mm |
| Overhauled | no |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | dismantled |
| Last availability date | 30/10/2026 |
| Product id | P230425040 |
| Language |
ŠKODA W 160 G
Desková vyvrtávačka CNC ŠKODA W 160 G
ŠKODA W 160 G
ŠKODA W 160 G CNC Plattenbohrwerk
ŠKODA W 160 G
Floor type boring machine ŠKODA W 160 G
Mandrinadora CNC ŠKODA W 160 G
Aléseuse à montant mobile CNC ŠKODA W 160 G
ŠKODA W 160 G
ŠKODA W 160 G
Alesatrice a montante mobile CNC ŠKODA W 160 G
ŠKODA W 160 G
ŠKODA W 160 G
Wytaczarka CNC ŠKODA W 160 G
ŠKODA W 160 G
ŠKODA W 160 G
ŠKODA W 160 G Горизонтально-расточной станок с ЧПУ
ŠKODA W 160 G
ŠKODA W 160 G
CNC zemin tipi borverk makinesi ŠKODA W 160 G
|
The ŠKODA W 160 G is a large floor-type boring machine manufactured in 1978. It features a MEFI control system and is designed for heavy-duty machining tasks. The machine has a spindle drive power of 55 kW, with a spindle diameter of 160 mm and a taper size of M 100. The spindle operates at speeds ranging from a minimum of 2 revolutions per minute up to a maximum of 800 revolutions per minute. It offers a maximum boring depth of 1600 mm and a spindle extension length of 1250 mm.
The machine's mechanical feed travels are 6000 mm along the X-axis, 2500 mm along the Y-axis, and 1250 mm along the Z-axis. The maximum feed rate for each axis is 3200 mm per minute. The base dimensions of the machine are 8000 mm in length and 5500 mm in width, providing a stable and spacious platform for machining operations. The travel of the stand on the bed is also 6000 mm.

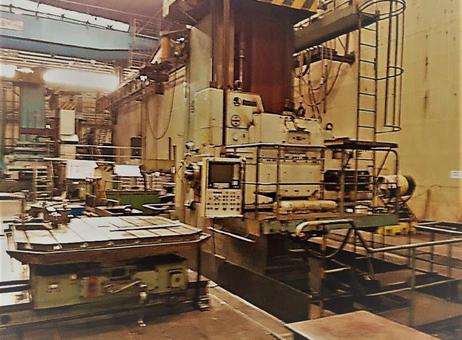

This floor-type boring machine includes an angled head as part of its equipment, enhancing its versatility for various machining tasks. The worktable is equipped with T-slots, allowing for secure clamping of workpieces during operation. A safety railing and an access ladder are installed on the right side of the machine to facilitate safe access and operation.

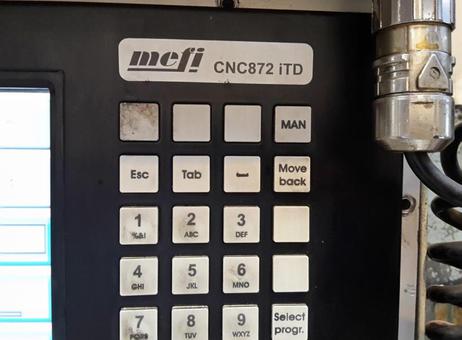

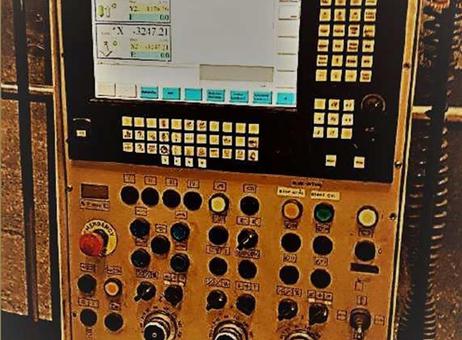

The machine appears used but structurally intact, showing some surface discoloration consistent with normal wear. The control panel is mounted on the front side for convenient operation. Overall, the ŠKODA W 160 G is a robust and sizeable machine suitable for industrial boring applications requiring precision and power.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Type: W 160 G Producer: ŠKODA Made in: 1978 Characteristic: Control system: MEFI Power of the spindle drive: 55 kW Minimum rotary speed of the spindle: 2 1/min Maximum rotary speed of the spindle: 800 1/min
Travel length X-axis (mechanical feed): 6000 mm Travel length Y-axis (mechanical feed): 2500 mm Travel length Z-axis (mechanical feed): 1250 mm Maximum feed rate in X-axis: 3200 mm/min Maximum feed rate in Y-axis: 3200 mm/min
Maximum feed rate in Z-axis: 3200 mm/min
Taper: M 100 Spindle diameter: 160 mm Maximum boring depth: 1600 mm Spindle extension: 1250 mm Base size: 8000 x 5500 mm Travel of the stand on the bed: 6000 mm Equipment: 1x angled head
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 1158 |
| Last activity | Oct. 30, 2026 |
Type: W 160 G Producer: ŠKODA Made in: 1978 Characteristic: Control system: MEFI Power of the spindle drive: 55 kW Minimum rotary speed of the spindle: 2 1/min Maximum rotary speed of the spindle: 800 1/min
Travel length X-axis (mechanical feed): 6000 mm Travel length Y-axis (mechanical feed): 2500 mm Travel length Z-axis (mechanical feed): 1250 mm Maximum feed rate in X-axis: 3200 mm/min Maximum feed rate in Y-axis: 3200 mm/min
Maximum feed rate in Z-axis: 3200 mm/min
Taper: M 100 Spindle diameter: 160 mm Maximum boring depth: 1600 mm Spindle extension: 1250 mm Base size: 8000 x 5500 mm Travel of the stand on the bed: 6000 mm Equipment: 1x angled head
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
