| Manufacturer | Sharman |
|---|---|
| Model | 4,000 x 3,500 mm |
| Year | 1985 |
| Location | Spain
|

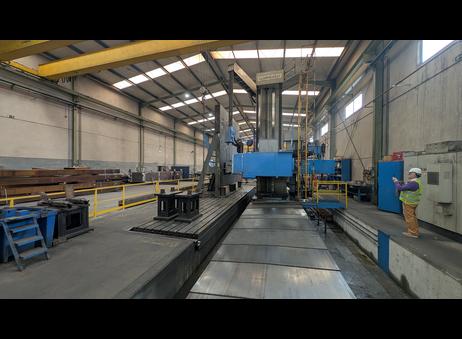

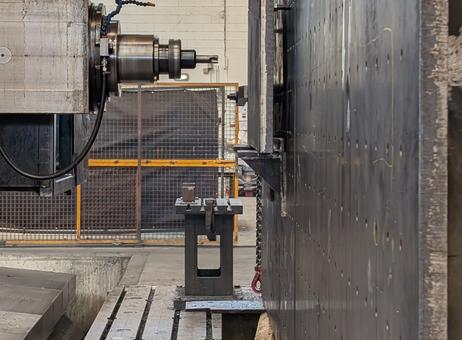

This Sharman floor-type boring machine, model 4,000 x 3,500 mm, manufactured in 1985, is designed for heavy-duty machining tasks. It features extensive travel capabilities with an X-axis travel of 14,300 mm, a Y-axis travel of 4,100 mm, and a Z-axis travel of 1,000 mm via the RAM, complemented by an additional 900 mm quill travel. The spindle diameter is 150 mm, powered by a 55 kW motor, suitable for demanding machining operations.

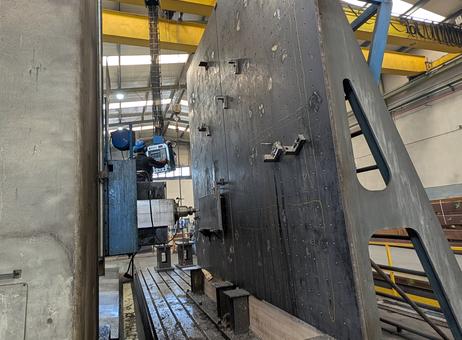

The machine's worktable measures 4,000 mm in length and 3,500 mm in width, supported by a hydrostatic rotation system with a double pinion and driven by a 22 kW rotation motor. It can accommodate a maximum workpiece weight of up to 60,000 kg (60 tons), making it ideal for large and heavy components. Two mounted base plates, each measuring 6,000 x 2,000 mm, are included to support workpieces.

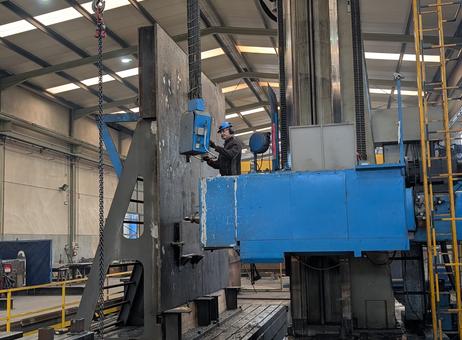

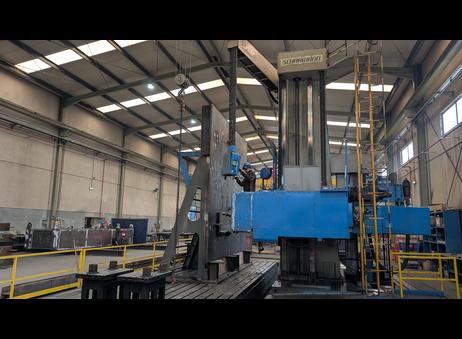

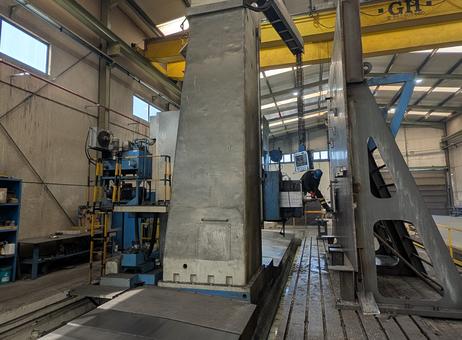

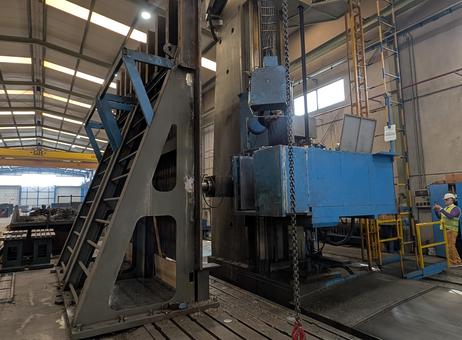

The CNC system installed is a Fagor 8055, which provides precise control over machining processes. The machine is equipped with a vertical column bearing the Sharman branding, and a horizontal arm featuring a chain hoist with a hook, facilitating handling of heavy parts. A staircase is attached to the side of the machine, providing access to upper sections for operation or maintenance.

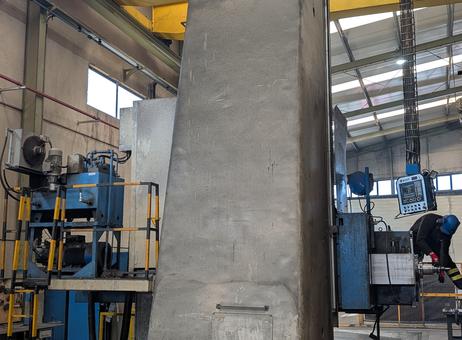

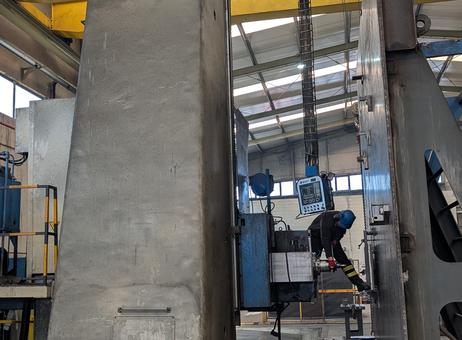

The control panel is suspended from the arm with visible cable connections, allowing operator interaction with the CNC system. The machine is situated in an industrial workshop environment and shows signs of use, including scratches and wear on the column surface, but no major damage is apparent. An operator wearing personal protective equipment is observed working on the machine, indicating operational readiness.
This robust Sharman boring machine is suitable for heavy industrial machining applications requiring large travel ranges and substantial workpiece capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL SPECIFICATIONS
Machine
• Brand: Sharman
• Model: Unknown (no nameplate)
• CNC: Fagor 8055
• X-axis travel: 14,300 mm
• Y-axis travel: 4,100 mm
• Z-axis travel: 1,000 mm (RAM) + 900 mm (quill)
• Spindle diameter: 150 mm
• Carriage travel (W-axis): 2,500 mm
• Spindle motor power: 55 kW
Table
•
Dimensions: 4,000 x 3,500 mm
•
Rotation system: Hydrostatic with double pinion
•
Rotation motor: 22 kW
•
Maximum load capacity: 60 tons
•
Mounted base plates: 2 units of 6,000 x 2,000 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What are the dimensions of this Sharman floor type boring machine?
This Sharman floor type boring machine has dimensions of 4,000 x 3,500 mm.
Is this machine a CNC type?
This equipment is a CNC machine.
When was this Sharman floor type boring machine manufactured?
This Sharman floor type boring machine was manufactured in 1985.
What is the longitudinal travel of this machine?
This machine has a longitudinal travel of 2,000 mm.
What is the capacity of this equipment?
This equipment has a capacity of 30 tons.
What control features does this Sharman floor type boring machine have?
This Sharman floor type boring machine features independent machine control with Afagor 8025 on two axes.
Is this machine currently operational?
This machine is currently operational.
Can this equipment be inspected and visited?
This equipment is available for inspection and visits.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
