| Manufacturer | SCM |
|---|---|
| Model | SI 5 |
| Year | 2019 |
| Location | Germany
|
| Category | Saws - Miscellaneous wood saws (mitre saws, cut-off saws) |
| Cutting width | 1500 mm |
| Cutting height | 200 mm |
| Engine power | 9 kW |
| Weight | 1259 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 22/10/2026 |
| Product id | P261022174 |
| Language |
Трион за дърво SCM SI 5
Pila na dřevo SCM SI 5
SCM SI 5 Træsav
SCM SI 5 Holzbearbeitungssäge
Πριόνι ξύλου SCM SI 5
SCM SI 5 Wood saw
Sierra para madera SCM SI 5
Scie à bois SCM SI 5
Pila za drvo SCM SI 5
SCM SI 5 Faipari fűrész
Sega per legno SCM SI 5
SCM SI 5 Medienos pjūklas
SCM SI 5 Houtzaag
Piła do drewna SCM SI 5
Serra para madeira SCM SI 5
Ferăstrău pentru lemn SCM SI 5
SCM SI 5 Пила по дереву
Testera za drvo SCM SI 5
SCM SI 5 Träsåg
Ahşap testeresi SCM SI 5
|

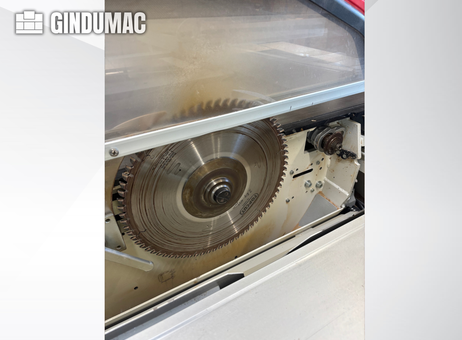

SCM SI 5 panel saw, manufactured in 2019, with a 1500 mm cutting width and a maximum cutting height of 200 mm at 90°. The machine has a 9 kW main motor and weighs 1259 kg. It is configured with a 3800 mm sliding table, allowing format cuts up to 3800 × 3200 mm, according to the supplied specifications. The saw blade swivels up to 46°, with a maximum cutting height of 130 mm at 45°. Blade speeds are listed as 2500, 3500 and 5000 RPM, and the scoring saw speed is 8500 RPM. The listed blade diameters are up to 550 mm without a scoring blade and up to 450 mm with one.

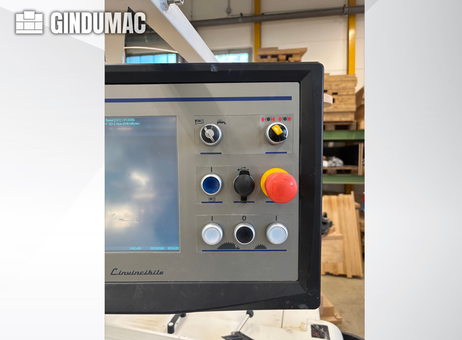

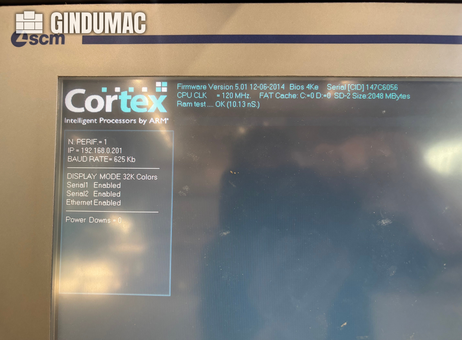

The machine is equipped with an EASY TOUCH 7 electronic control unit, with storage for up to 999 programs. The described controlled axes include main saw height and tilt, plus programmed positioning of the rip fence or scoring unit. The programmed rip fence uses a THK guide and recirculating ball screw, with a stated speed of 25 m/min. The Pro-Lock blade clamping system provides keyless riving-knife adjustment.

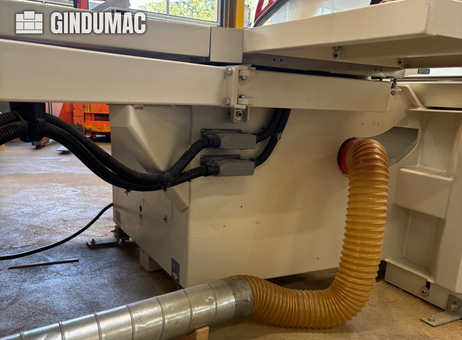

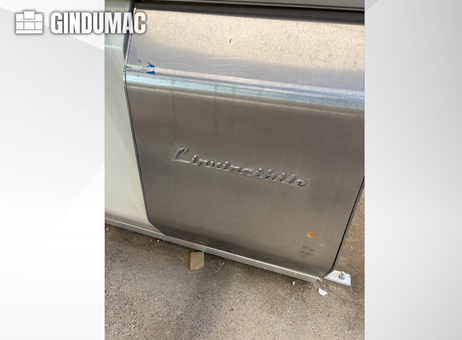

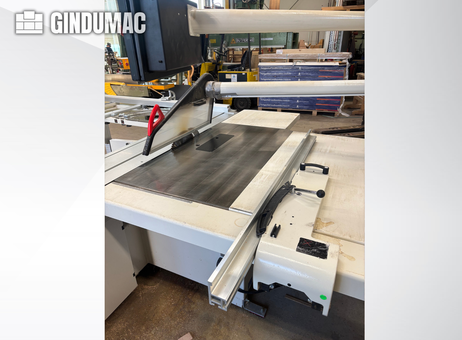

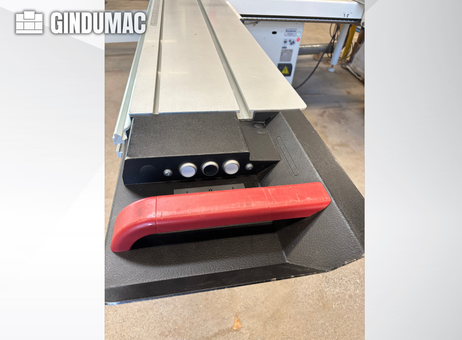

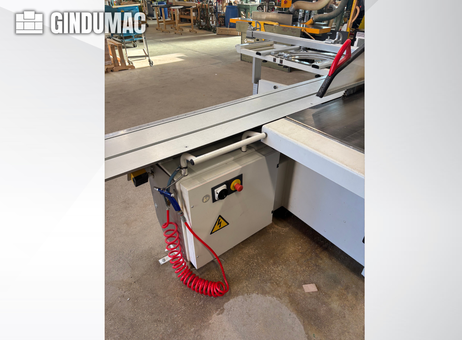

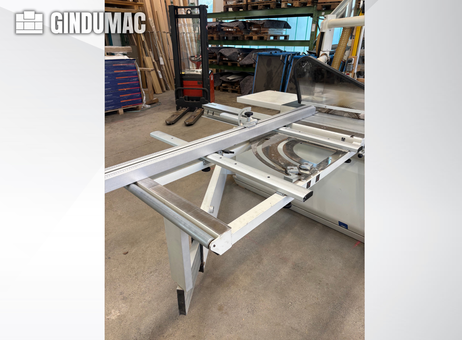

Visible equipment includes the sliding table, aluminum crosscut fence and guide rail, adjustable stop, rip fence, blade guard and dust-extraction connections. A control panel, push-button housing and operating lever are also present. The table, rails, cabinet, blade area and painted surfaces show scuffs, dust and other signs of use. The supplied specifications list a 400 V, three-phase electrical connection at 50 Hz, a 22 A current and a scoring motor power of 0.9 kW.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This SCM SI 5 panel saw was manufactured in 2019. It features a maximum cutting height of 200 mm at 90° and a sliding table version of 3800 mm, allowing for format cuts up to 3800 x 3200 mm. The machine is equipped with an "EASY TOUCH 7" electronic control unit, enabling up to 999 storable programs. If you are looking to get high-quality cutting capabilities, consider the SCM SI 5 panel saw we have for sale. Contact us for further details.- Controlled Axes: Up to 3 axes (Main Saw Height, Main Saw Tilt, Programmed Rip Fence / Scoring Unit positioning)
- Voltage: 400 V
- Phases: 3 ~
- Current: 22 A
- Frequency: 50 Hz
- Short-circuit current (Icc): 12 kA
- Main Motor Power: 9 kW (12 HP) at 50Hz (with automatic star-delta starter)
- Scoring Motor Power: 0.9 kW (S6-40%)
- Main Saw Blade Diameter: Up to 550 mm (without scoring blade); up to 450 mm (with scoring blade)
- Max. Cutting Height at 90°: 200 mm
- Max. Cutting Height at 45°: 130 mm
- Saw Blade Swivel: 46°
- Saw Blade Speeds: 2500 / 3500 / 5000 RPM
- Scoring Saw Speed: 8500 RPM
- Cutting Width at Rip Fence: 1500 mm
- Sliding Table Version: 3800 mm (Format cuts up to 3800 x 3200 mm)
- Exhaust Socket Diameters: 120 mm (on frame), 100 mm (on saw blade guard)
- Fence System: Programmed rip fence with THK guide and recirculating ball screw (25 m/min speed), fully swingable under the table
- Blade Clamping: "Pro-Lock" system for quick clamping of main saw blade with keyless riving knife adjustment
Machine Weight: 1259 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
