| Manufacturer | SANGIACOMO |
|---|---|
| Model | T250 RCE |
| Year | 2008 |
| Location | Slovenia
|
SANGIACOMO T250 RCE mechanical stamping/forging press, manufactured in 2008. General machine information: manufacturer SANGIACOMO, model T250 RCE, year 2008, and an approximate machine weight of 22,000 kg. The press has a ram stroke specification of 220 mm and is CE marked.

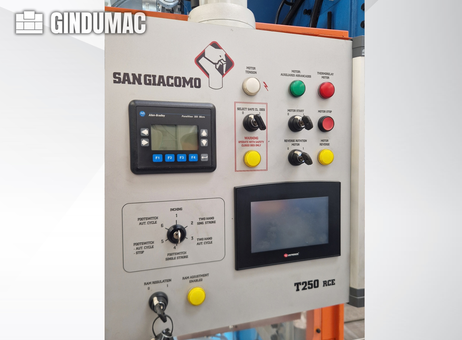

Configuration and operator interface: the machine is fitted with a main control console that includes green start and red stop pushbuttons and a yellow emergency stop. A PanelView 300 Micro (Allen-Bradley) operator display is mounted on the console. Additional labeled controls are present near the panel (labels observed include MOTOR TENSION and MOTOR AUXILIARES ARRANCADOS).

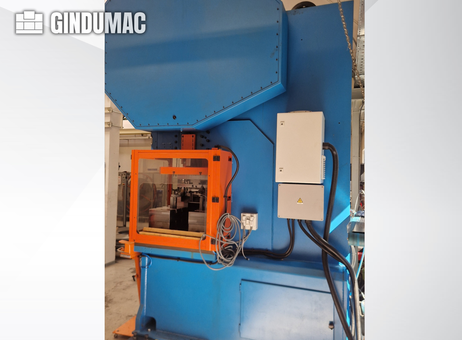

Safety and guarding: the press is equipped with an orange protective guarding/frame along the lower front and a guarded work area at the lower section. A stacked signal light (red/yellow/green) is installed on the pillar.

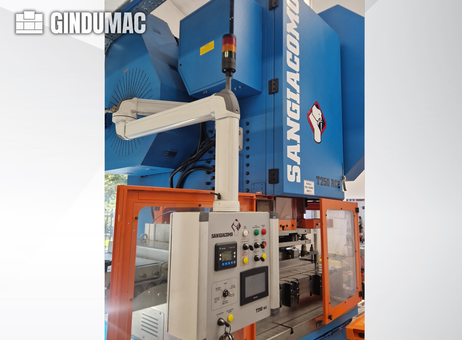

Accessories and attachments: the machine is fitted with a white articulated assist/robotic arm attached to the frame. Cabling and hoses are routed along the machine base. A ventilation/perforated circular panel is fitted on the side of the main housing.

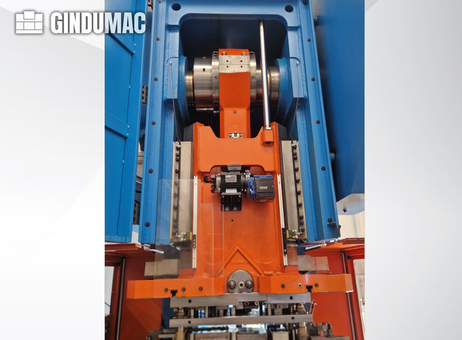

Tooling area and construction: the press features a robust welded blue framework with riveted plates and multiple securing bolts around the housing. The tooling/open cavity area includes an orange guiding element and a rotating spindle/chuck-style assembly inside the opening. Fastening points and securing hardware are visible around the tooling area.
Condition notes: visible external components and guards are present as described. No statements are made about operational condition, testing, or warranty.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Mechanical stamping press manufactured in 2008. This SANGIACOMO T250 RCE features a nominal force of 250 t and an adjustable stroke ranging from 15 to 220 mm. It has a maximum die surface of 800 × 1,450 mm and a closed die maximum height of 662.5 mm. If you are looking to get high-quality stamping capabilities, consider the SANGIACOMO T250 RCE machine we have for sale. Contact us for further details.Adjustable stroke: 15–220 mm
Ram adjustment: 100 mm
Stop position: T.D.C.
Stroke rate: 20 / 42 / 50 strokes/min
Maximum insertions per minute: 18
Maximum die surface: 800 × 1,450 mm
Closed die maximum height: 662.5 mm
Closed die minimum height: 460 mm
Maximum upper die weight: 300 kg
Flywheel speed: 176 / 370 / 441 rpm
Stop time: 206 ms
Safety distance at 1.6 m/s: 330 mm
Total installed power: 22.37 kW
Supply voltage: 400 V
Auxiliary circuit voltage: 24 V
Required working air pressure: 5.5–6 bar
CE marked: Yes
Machine Weight: 22000 kg
Max. Stroke: 8 mm
Stamping Force: 2500 Kn
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
