Contact us to receive an offer.
| Manufacturer | RONCHI |
|---|---|
| Model | ROTOTECH EXACTA |
| Year | 2000 |
| Location | Italy
|

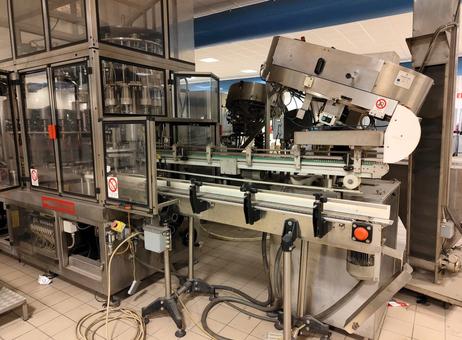

The RONCHI ROTOTECH EXACTA is an automatic bottling line designed for filling and capping bottles ranging in size from 100 ml to 1000 ml, suitable for various sectors including pharmaceutical, chemical, cosmetics, food, dietary, and medical device manufacturing. This line consists of two main machines: the Rototech 180/8, which functions as an unscrambler and orientator, and the Exacta RM, responsible for filling and capping operations.

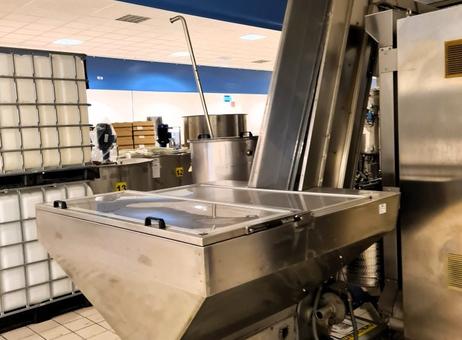

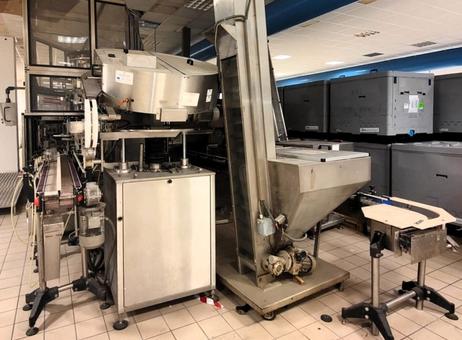

The system begins with bottles being fed in bulk into a hopper via an elevator, where mechanical devices ensure proper positioning within selectors. The orienting unit uniformly aligns the bottles as per user requirements. Bottles are then spaced and transferred through an entry star to an orienting carousel that positions them correctly before they proceed to the filling stage.

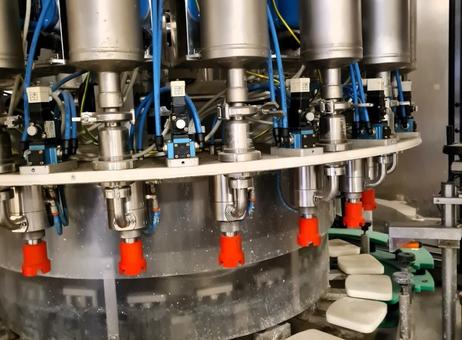

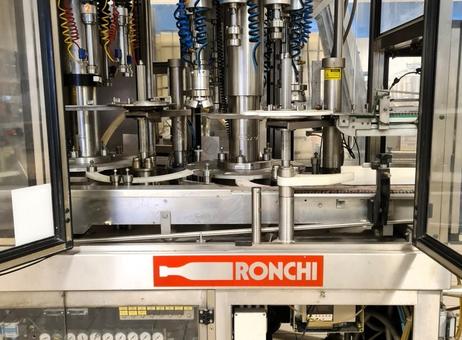

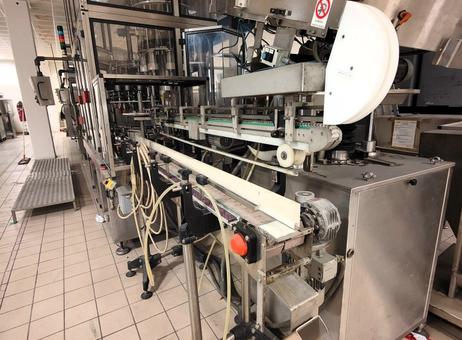

The filling and capping monoblock receives bottles via a conveyor belt and auger system. During operation, lifting plates cyclically raise and lower to center the dispensing nozzles into each bottle for precise filling. After filling, bottles move to the capping station where caps are positioned and applied by capping heads. Once capped, bottles are returned to the conveyor belt for exit.

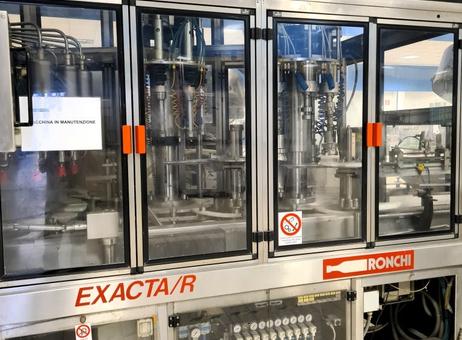

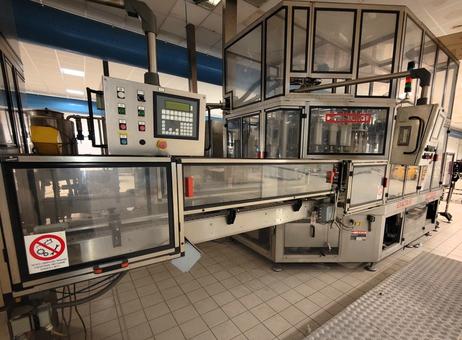

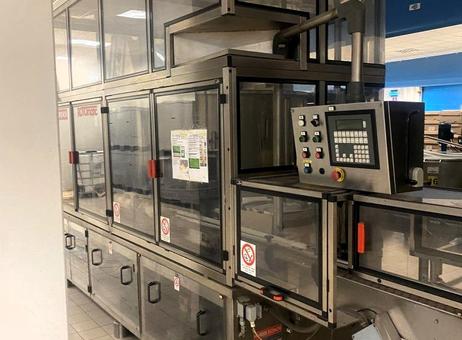

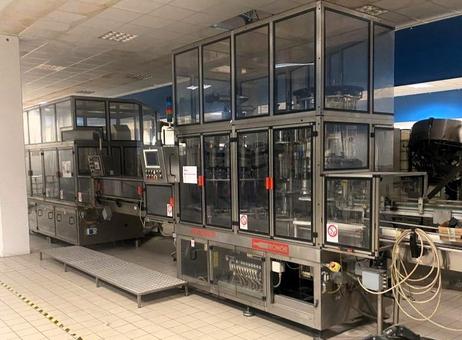

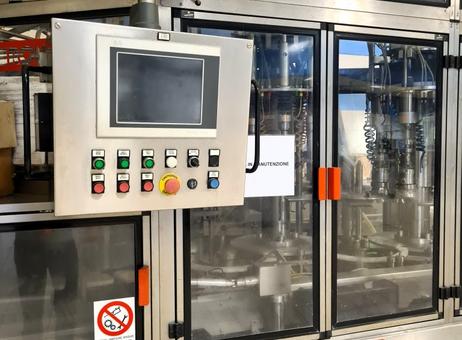

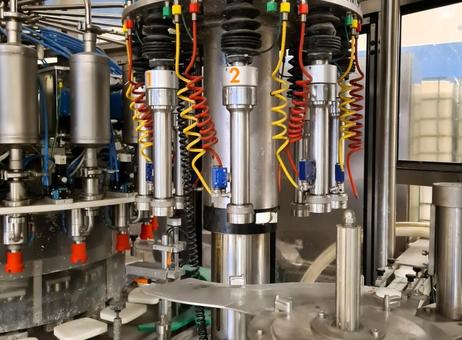

The Exacta machine measures 2200 x 3750 x 3000 mm and weighs approximately 4000 kg. It operates on 380 volts at 50 Hz with a power consumption of 20 kW. The equipment features a metal frame with transparent protective panels, several safety signs including no smoking and no hand access warnings, and emergency stop buttons to ensure operator safety. Control panels with buttons, numeric keypads, LCD displays, and touchscreen interfaces allow for efficient machine operation. The machine appears clean and well-maintained, with visible pneumatic or hydraulic tubing and multiple filling heads within the enclosure.
This bottling line from the year 2000 offers a comprehensive solution for automated bottle handling, filling, and capping with a focus on safety and operational control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DESCRIPTION:
Automatic line for filling and capping bottles. The complete Ronchi line allows to manage different formats on customer request from a minimum of 100 to a maximum of 1000 ml. It is essentially composed of 2 machines and 2 production processes: unscrambler/orientator, and filling with capping.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
The line is composed of 2 main machines: the Rototech 180/8 (unscrambler/orientator) and the Exacta Rm (filling/capping). The bottles are fed in bulk into the hopper by means of the elevator; from here they are pushed towards the selectors. Inside the hopper, special mechanical devices ensure that the bottles are properly housed inside the selectors that support them up to the point of fall where they are placed on the exit star. The orienting unit performs the function of uniformly orienting the bottles according to the user's wishes. The containers arriving from the unscrambler are spaced and introduced into the orientor by means of the entry star which positions them consecutively under the gripping heads of the orienting carousel. The correctly oriented bottles are returned to the exit star to be sent for filling. The containers arriving on the conveyor belt are spaced and introduced into the monoblock by means of an auger, from which they pass to the entry star which positions them on the lifting plates. During rotation the plates rise and lower cyclically, allowing the centering and introduction of the dispensing nozzle into the bottle. Once the filling operation is complete, the bottle is transferred to the filler and capper by means of the central star. The loading star ensures that the caps are perfectly positioned under the capping heads, from where they are picked up and applied to the bottle of the heads themselves. Once the capping phase is complete, the bottle is extracted from the monoblock and repositioned on the conveyor belt of the same exit.
Year: 2000
TECHNICAL DATA - ROTOTECH
Dimensions mm 2650 x 3500 x 3000
Weight Kg 2600
Power Kw 10
Voltage Volt 380
Frequency Hz 50
TECHNICAL DATA - EXACTA
Dimensions mm 2200 x 3750 x 3000
Weight Kg 4000
Power Kw 20
Voltage Volt 380
Frequency Hz 50
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 1275 |
| Last activity | Oct. 27, 2026 |
DESCRIPTION:
Automatic line for filling and capping bottles. The complete Ronchi line allows to manage different formats on customer request from a minimum of 100 to a maximum of 1000 ml. It is essentially composed of 2 machines and 2 production processes: unscrambler/orientator, and filling with capping.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
The line is composed of 2 main machines: the Rototech 180/8 (unscrambler/orientator) and the Exacta Rm (filling/capping). The bottles are fed in bulk into the hopper by means of the elevator; from here they are pushed towards the selectors. Inside the hopper, special mechanical devices ensure that the bottles are properly housed inside the selectors that support them up to the point of fall where they are placed on the exit star. The orienting unit performs the function of uniformly orienting the bottles according to the user's wishes. The containers arriving from the unscrambler are spaced and introduced into the orientor by means of the entry star which positions them consecutively under the gripping heads of the orienting carousel. The correctly oriented bottles are returned to the exit star to be sent for filling. The containers arriving on the conveyor belt are spaced and introduced into the monoblock by means of an auger, from which they pass to the entry star which positions them on the lifting plates. During rotation the plates rise and lower cyclically, allowing the centering and introduction of the dispensing nozzle into the bottle. Once the filling operation is complete, the bottle is transferred to the filler and capper by means of the central star. The loading star ensures that the caps are perfectly positioned under the capping heads, from where they are picked up and applied to the bottle of the heads themselves. Once the capping phase is complete, the bottle is extracted from the monoblock and repositioned on the conveyor belt of the same exit.
Year: 2000
TECHNICAL DATA - ROTOTECH
Dimensions mm 2650 x 3500 x 3000
Weight Kg 2600
Power Kw 10
Voltage Volt 380
Frequency Hz 50
TECHNICAL DATA - EXACTA
Dimensions mm 2200 x 3750 x 3000
Weight Kg 4000
Power Kw 20
Voltage Volt 380
Frequency Hz 50
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The RONCHI ROTOTECH EXACTA is an automatic bottling line designed for filling and capping bottles ranging in size from 100 ml to 1000 ml, suitable for various sectors including pharmaceutical, chemical, cosmetics, food, dietary, and medical device manufacturing. This line consists of two main machines: the Rototech 180/8, which functions as an unscrambler and orientator, and the Exacta RM, responsible for filling and capping operations.
The system begins with bottles being fed in bulk into a hopper via an elevator, where mechanical devices ensure proper positioning within selectors. The orienting unit uniformly aligns the bottles as per user requirements. Bottles are then spaced and transferred through an entry star to an orienting carousel that positions them correctly before they proceed to the filling stage.
The filling and capping monoblock receives bottles via a conveyor belt and auger system. During operation, lifting plates cyclically raise and lower to center the dispensing nozzles into each bottle for precise filling. After filling, bottles move to the capping station where caps are positioned and applied by capping heads. Once capped, bottles are returned to the conveyor belt for exit.
The Exacta machine measures 2200 x 3750 x 3000 mm and weighs approximately 4000 kg. It operates on 380 volts at 50 Hz with a power consumption of 20 kW. The equipment features a metal frame with transparent protective panels, several safety signs including no smoking and no hand access warnings, and emergency stop buttons to ensure operator safety. Control panels with buttons, numeric keypads, LCD displays, and touchscreen interfaces allow for efficient machine operation. The machine appears clean and well-maintained, with visible pneumatic or hydraulic tubing and multiple filling heads within the enclosure.
This bottling line from the year 2000 offers a comprehensive solution for automated bottle handling, filling, and capping with a focus on safety and operational control.
