Contact us to receive an offer.
| Manufacturer | Rockwell Baird |
|---|---|
| Model | 28 |
| Year | |
| Location | United Kingdom
|
| Category | Spring machines - multislide / formers / coilers |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 24/01/2026 |
| Product id | P230823114 |
| Language |
Rockwell Baird 28
Stroj na výrobu pružin Rockwell Baird 28
Rockwell Baird 28
Rockwell Baird 28 Federmaschine
Rockwell Baird 28
Rockwell Multi Slide Metal Forming Multiform Machine With Various Tooling
Formadora de resorte Rockwell Baird 28
Machine à ressorts Rockwell Baird 28
Rockwell Baird 28
Rockwell Baird 28
Molla per stampo Rockwell Baird 28
Rockwell Baird 28
Rockwell Baird 28
Maszyna do produkcji sprężyn Rockwell Baird 28
Rockwell Baird 28
Rockwell Baird 28
Rockwell Baird 28 Оборудование для производства пружин
Rockwell Baird 28
Rockwell Baird 28
Yay makinesi Rockwell Baird 28
|
The Rockwell Baird Model 28 Multislide Spring Machine is designed for precision wire forming and spring manufacturing. It accommodates a maximum wire diameter of 3/32" and standard coil stock width of 3/4". The machine features a No. 2 roll straightener and can handle a maximum feed length of 6" (7 1/4" without feed stops). It operates at speeds up to 200 revolutions per minute, making it suitable for efficient production runs.
The standard stroke lengths with cams include a 1" front slide, 7/8" rear slide, 1 5/8" side slides, and 5/8" vertical motion. The opening in the bed measures 4 3/4" by 4 1/2", and the diameter of the cam shafts is 1 9/16". The machine occupies a floor space of 54" by 44" and weighs approximately 1010 lbs.

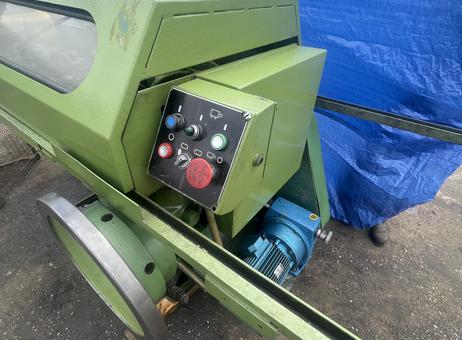

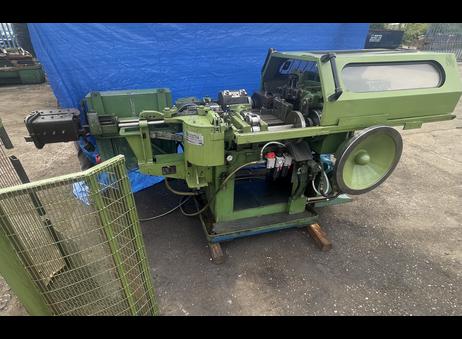

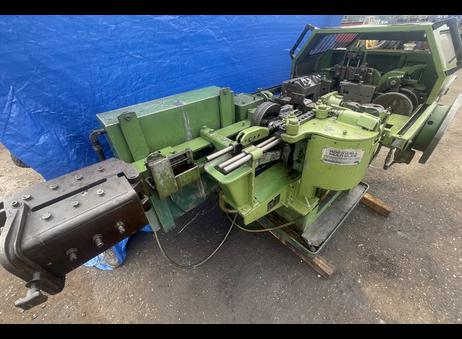

This unit is painted green and includes a large flywheel located on the right side. It is equipped with pneumatic or hydraulic components near the base, featuring pressure gauges and filters. The control panel includes push buttons and an emergency stop button for operational safety. An electric motor painted blue is mounted beneath the control panel.

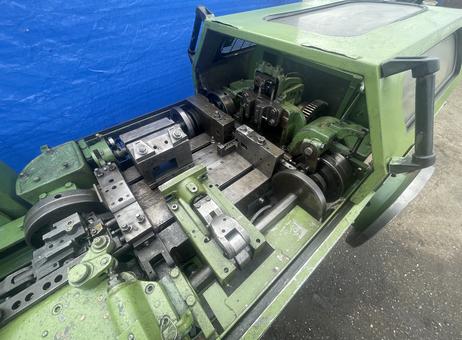

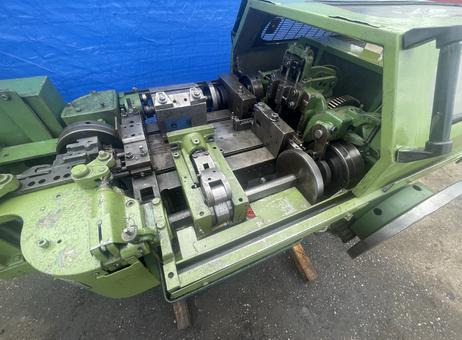

The working area contains metal slides, clamps, and rollers, with a protective mesh guard integrated into the machine housing. A safety cage or guard is present but currently detached and positioned in front of the machine. Metal parts show signs of use, including wear marks, scratches, and some surface rust on gears.

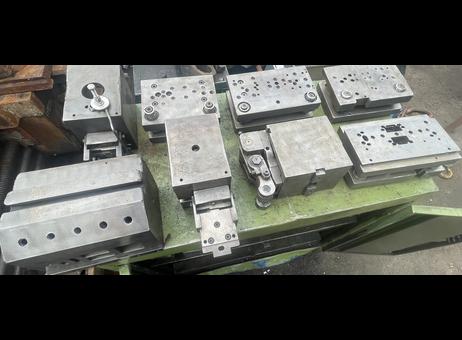

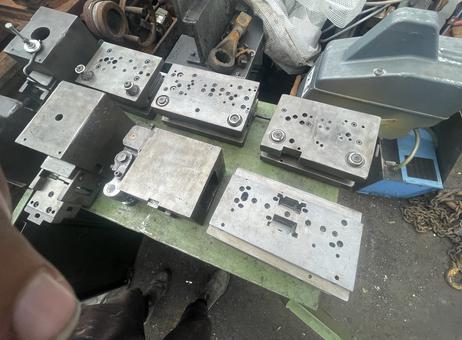

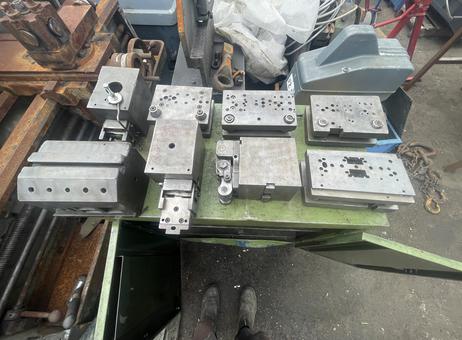

Included with the machine is a set of metal tooling plates or dies of various shapes and configurations. These tooling plates exhibit wear and minor surface rust but appear to be in serviceable condition. Overall, the machine is structurally intact with visible signs of use such as paint wear and dirt consistent with normal industrial operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
BAIRD (ROCKWELL) #28 MULTISLIDE SLIDE
Maximum Wire Diameter......3/32"
Standard Width Coil Stock..........3/4"
Roll Straightener Size........No. 2
Maximum Feed Length.......6" (7 1/4" w/o feed stops)
Operating Speed............200 rpms
Standard Stroke With Cams
Front Slide.........1"
Rear Slide.............7/8"
Side Slides..........1 5/8"
Vertical Motion......5/8"
Opening in Bed............4 3/4" x 4 1/2"
Diameter of Cam Shafts.............1 9/16"
Floor Space........54" x 44"
Weight........1010 lbs.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 9 |
| Last activity | Sept. 3, 2026 |
BAIRD (ROCKWELL) #28 MULTISLIDE SLIDE
Maximum Wire Diameter......3/32"
Standard Width Coil Stock..........3/4"
Roll Straightener Size........No. 2
Maximum Feed Length.......6" (7 1/4" w/o feed stops)
Operating Speed............200 rpms
Standard Stroke With Cams
Front Slide.........1"
Rear Slide.............7/8"
Side Slides..........1 5/8"
Vertical Motion......5/8"
Opening in Bed............4 3/4" x 4 1/2"
Diameter of Cam Shafts.............1 9/16"
Floor Space........54" x 44"
Weight........1010 lbs.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
