Contact us to receive an offer.
| Manufacturer | QUASER |
|---|---|
| Model | MV 204 CE/12 |
| Year | 2007 |
| Location | Spain
|
This Quaser MV 204 CE/12 vertical machining center, manufactured in 2007, is designed to handle a variety of precision machining tasks. It features a spacious worktable measuring 1400 x 700 mm, capable of supporting a maximum part weight of 1800 kg, allowing for the machining of heavy and sizable components. The machine offers substantial travel distances across its axes: 1200 mm on the X-axis, 700 mm on the Y-axis, and 610 mm on the Z-axis, providing flexibility for complex machining operations.

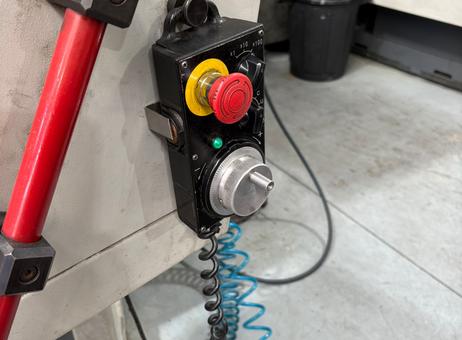

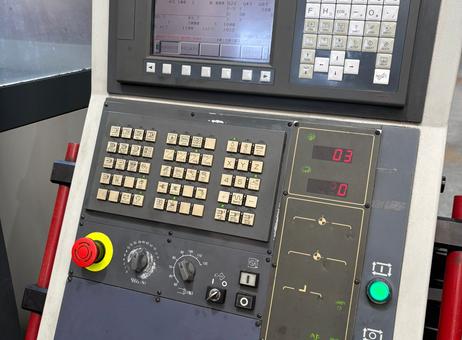

Equipped with a BT-40 spindle taper, the spindle can reach speeds up to 12,000 rpm, suitable for a wide range of cutting applications. The control system is a FANUC Mill i, complemented by an electronic handwheel for precise manual adjustments. Tool management is facilitated by a random tool changer with 30 tool pockets, enabling efficient tool changes and minimizing downtime.

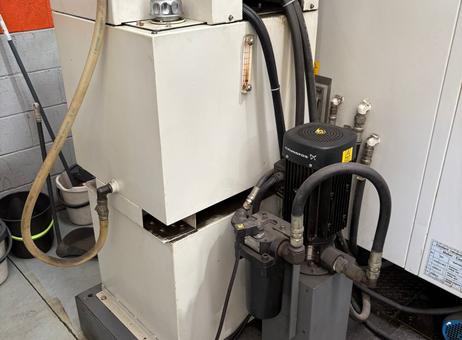

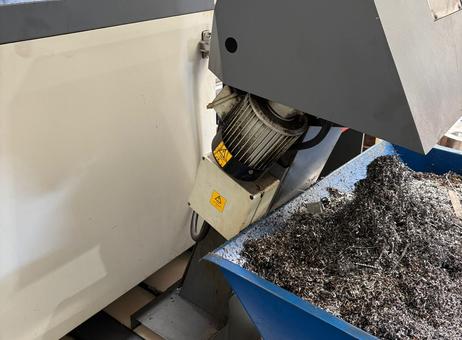

Chip management is addressed with two transverse screw-type conveyors and one longitudinal hinged-type conveyor, ensuring effective removal of machining debris. The machine also includes an internal cooling system with a high-pressure pump to maintain optimal cutting conditions.

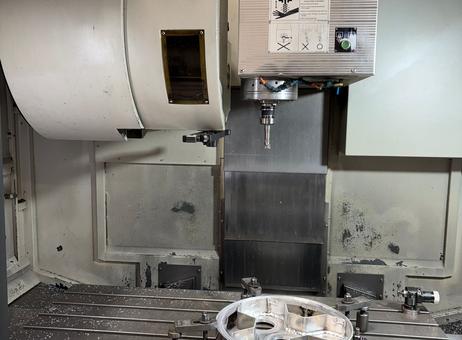

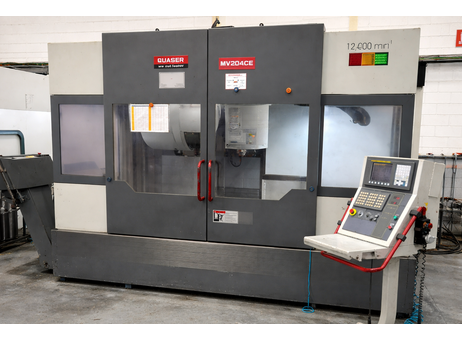

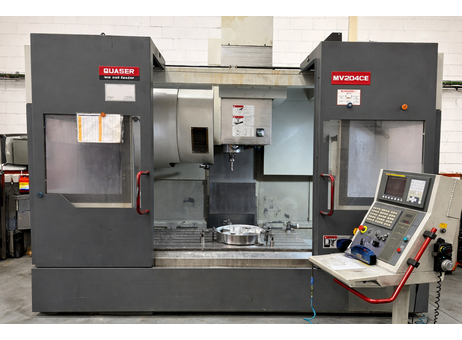

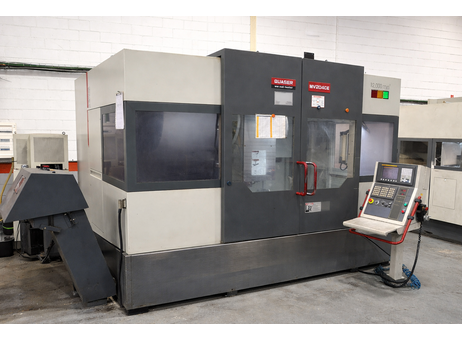

Physically, the machine measures 3680 mm in length, 2950 mm in width, and 2880 mm in height, with a total weight of approximately 9100 kg. Visually, it features dual front doors with red handles for easy access to the machining area. The spindle head is equipped with control knobs and safety warning labels. The worktable is shown with a metal part securely clamped for machining, indicating readiness for use. The overall condition appears clean and well-maintained, with only minor surface wear noted, reflecting careful upkeep.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Table: 1400x700 mm
Max. table load: 1800 kg
X-axis travel: 1200 mm
Y-axis travel: 700 mm
Z-axis travel: 610 mm
Spindle taper: BT-40
Speed: 12,000 rpm
Approximate machine weight: 9,100 kg
Machine dimensions: 3,680 x 2,950 x 2,880 mm
Equipped with:
Control: FANUC Mill i
Electronic handwheel Yes
RANDOM tool changer: 30 tools
Chip conveyors: 2 transverse screw-type conveyors + 1 longitudinal hinged-type conveyor
Internal cooling: with high-pressure pump
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machine is this QUASER MV 204?
This QUASER MV 204 is a vertical machining center.
What year was this equipment manufactured?
This equipment was manufactured in 2007.
What is the reference number for this QUASER MV 204?
This QUASER MV 204 has a reference number of 075/E003.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 64 |
| Last activity | Oct. 29, 2026 |
Table: 1400x700 mm
Max. table load: 1800 kg
X-axis travel: 1200 mm
Y-axis travel: 700 mm
Z-axis travel: 610 mm
Spindle taper: BT-40
Speed: 12,000 rpm
Approximate machine weight: 9,100 kg
Machine dimensions: 3,680 x 2,950 x 2,880 mm
Equipped with:
Control: FANUC Mill i
Electronic handwheel Yes
RANDOM tool changer: 30 tools
Chip conveyors: 2 transverse screw-type conveyors + 1 longitudinal hinged-type conveyor
Internal cooling: with high-pressure pump
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machine is this QUASER MV 204?
This QUASER MV 204 is a vertical machining center.
What year was this equipment manufactured?
This equipment was manufactured in 2007.
What is the reference number for this QUASER MV 204?
This QUASER MV 204 has a reference number of 075/E003.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This Quaser MV 204 CE/12 vertical machining center, manufactured in 2007, is designed to handle a variety of precision machining tasks. It features a spacious worktable measuring 1400 x 700 mm, capable of supporting a maximum part weight of 1800 kg, allowing for the machining of heavy and sizable components. The machine offers substantial travel distances across its axes: 1200 mm on the X-axis, 700 mm on the Y-axis, and 610 mm on the Z-axis, providing flexibility for complex machining operations.
Equipped with a BT-40 spindle taper, the spindle can reach speeds up to 12,000 rpm, suitable for a wide range of cutting applications. The control system is a FANUC Mill i, complemented by an electronic handwheel for precise manual adjustments. Tool management is facilitated by a random tool changer with 30 tool pockets, enabling efficient tool changes and minimizing downtime.
Chip management is addressed with two transverse screw-type conveyors and one longitudinal hinged-type conveyor, ensuring effective removal of machining debris. The machine also includes an internal cooling system with a high-pressure pump to maintain optimal cutting conditions.
Physically, the machine measures 3680 mm in length, 2950 mm in width, and 2880 mm in height, with a total weight of approximately 9100 kg. Visually, it features dual front doors with red handles for easy access to the machining area. The spindle head is equipped with control knobs and safety warning labels. The worktable is shown with a metal part securely clamped for machining, indicating readiness for use. The overall condition appears clean and well-maintained, with only minor surface wear noted, reflecting careful upkeep.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
