| Manufacturer | Quaser |
|---|---|
| Model | MV 154 APC E 12B |
| Year | 2012 |
| Location | Czech Republic
|

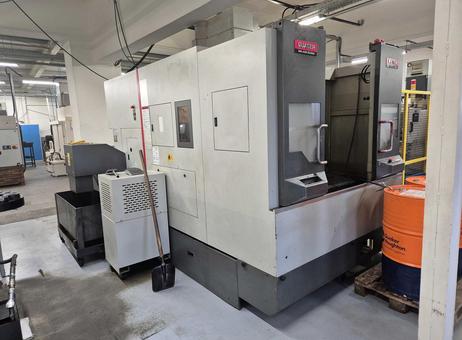

This listing features a Quaser MV 154 APC E 12B vertical machining center, manufactured in 2012. It is equipped with a FANUC Oi-MD control system, providing reliable and precise CNC operation. The machine offers a working table length of 800 mm and a width of 500 mm, with a maximum evenly distributed table load capacity of 250 kg, suitable for a variety of machining tasks.
The machining center has axis travels of 700 mm on the X-axis, 500 mm on the Y-axis, and 560 mm on the Z-axis, allowing for versatile machining capabilities. It is powered by a spindle drive with a power rating of 11/18.5 kW and operates at spindle speeds ranging from a minimum of 50 rpm up to a maximum of 12,000 rpm. The spindle taper is ISO 40.
In terms of dimensions, the machine measures 3080 mm in length, 4250 mm in width, and 2850 mm in height, with a total weight of 8500 kg. The equipment includes a chip conveyor, a pallet changer, a workpiece probe, and a tool probe, enhancing automation and efficiency in production.

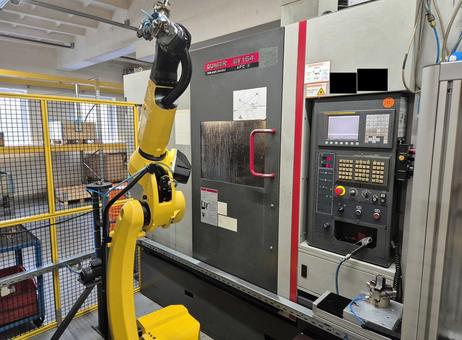

The machine features a control panel located on the right side, equipped with a screen, numerous buttons, and an emergency stop button for operator safety. A robotic arm is attached to the machine, enabling automated operation and increased productivity. For operator protection, the machining area is enclosed by a safety cage made of yellow metal mesh.
The machine door displays some signs of wear, including visible scratches, which is typical for used industrial equipment. The brand name 'QUASER' and model 'MV154 APC E' are clearly marked on the machine door, confirming the model identity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Made in: 2012
Characteristic:
Control system: FANUC Oi-MD
Length of the working table: 800 mm
Width of the working table: 500 mm
Maximum table load (evenly distributed): 250 kg
Power of the spindle drive: 11/18.5 kW
Minimum rotary speed of the vertical spindle: 50 1/min
Maximum rotary speed of the vertical spindle: 12000 1/min
X-Axis travels: 700 mm
Y-Axis travels: 500 mm
Z-Axis travels: 560 mm
Taper: ISO 40
Machine height: 3080 mm
Machine length: 4250 mm
Machine width: 2850 mm
Machine weight: 8500 kg
Equipment:
Chip conveyor
Pallet changer
Workpiece probe
Tool probe
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
