| Manufacturer | POSmill |
|---|---|
| Model | H 800 U |
| Year | 2018 |
| Location | Germany
|
Manufacturer: POSmill — Model: H 800 U (2018). This is a 5-axis vertical machining centre with travels of X = 670 mm, Y = 830 mm and Z = 600 mm and a maximum spindle speed of 18,000 rpm. The machine is equipped with an 800 mm Kessler rotary table providing continuous 360° C-axis rotation and a B/A axis swivel range of -120° to +120°. Tool management is handled by a 96-place tool changer. The control is HEIDENHAIN iTNC 530 and the machine is configured with Heidenhain linear measuring systems on X, Y and Z axes plus a Heidenhain rotary measuring system for the rotary axes.
Coolant and cooling systems: through-spindle coolant is fitted; an internal coolant supply (IKZ) is specified at 20 bar and includes a belt filter unit with coolant temperature control. Spindle and axis cooling features are listed as a regulated spindle cooler, active air-air control cabinet cooling, and controlled oil cooling for the fourth and fifth axes. Hydraulic and pneumatic interfaces are provided in the table centre (3-way hydraulic connection and 1-way air), with the hydraulic unit controlled via an M-function.
Protection and software features: POS Kinematic module with reference sphere, POSkontur contour protection and POS DCM collision module are included. Material handling and chip management items listed are an external hinged-belt chip conveyor and a chip flushing device.

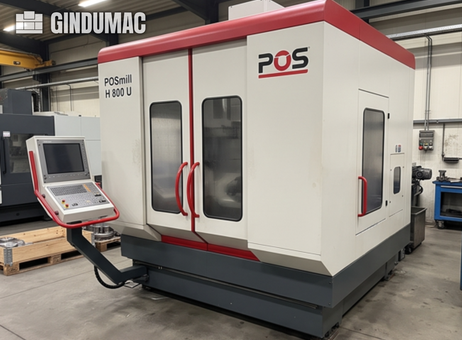

Visible components and enclosure details: the machine has a fully enclosed work area with two front door panels that include window inserts, a control console with display and keypad mounted on a stand to the left of the machine, POS branding on the front, and red trim accents and door handles. The machine rests on a heavy base.
Note: All specifications and features above are taken from the provided equipment listing and observed components. No statements about operational condition, testing or warranty are made.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 5-axis POSmill H 800 U was manufactured in 2018. It features an impressive X-axis travel of 670 mm, Y-axis travel of 830 mm, and Z-axis travel of 600 mm. The machine includes a robust table diameter of 800 mm and a high spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the POSmill H 800 U vertical machining centre we have for sale. Contact us for further details.- Swivel Range (B/A Axis): -120 to +120 degrees
- Rotary Table (C Axis): 360 degrees continuous
- Table Diameter: Kessler table 800 mm
- Tool Changer Capacity: 96-fold
- Measuring Systems: Heidenhain linear measuring system (X, Y, Z) with sealing air, Heidenhain rotary measuring system
- Internal Coolant Supply (IKZ): 20 bar with belt filter unit and coolant temperature control
- Hydraulic & Pneumatic Interfaces: 3-way hydraulic connection & 1-way air connection in table center, hydraulic unit controlled via M-function
- Spindle/Axis Cooling: Regulated spindle cooler, active air-air control cabinet cooler, controlled oil cooling for 4th and 5th axis
- Additional Features:
POS Kinematic module with reference sphere
POSkontur contour protection
POS DCM collision module
external hinged-belt chip conveyor
chip flushing device
Control Brand: HEIDENHAIN
Control Model: iTNC 530
Number of Axes: 5
Spindle Speed: 18000 RPM
Taper Size: HSK 63
Through-spindle Coolant: yes
X-axis Travel: 670 mm
Y-axis Travel: 830 mm
Z-axis Travel: 600 mm
