Contact us to receive an offer.
| Manufacturer | PINACHO |
|---|---|
| Model | TAURUS 260 |
| Year | 2000 |
| Location | Spain
|

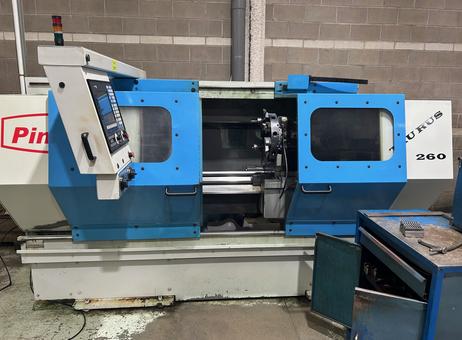

This listing features a CNC lathe machine, the PINACHO TAURUS 260, manufactured in the year 2000. The machine measures 2970 mm in length, 1720 mm in width, and 1820 mm in height, with a total weight of 2875 kg. It is equipped with a spindle motor power of approximately 7.46 kW and offers a maximum turning speed of 2500 rpm. The lathe has a distance between centers of 1000 mm, with a spindle bore diameter of 80 mm. The maximum diameter that can be turned above the bed is 530 mm, and above the transversing slide is 315 mm. The spindle features a Morse taper 5 and a DIN 55027 spindle nose.

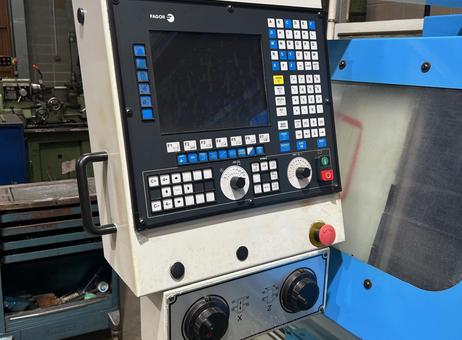

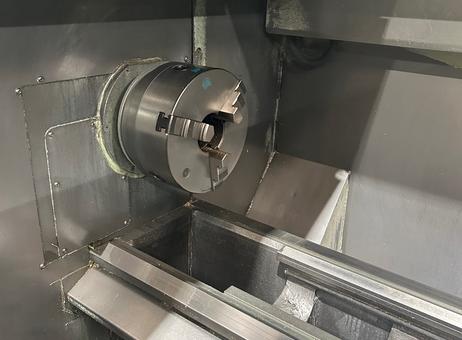

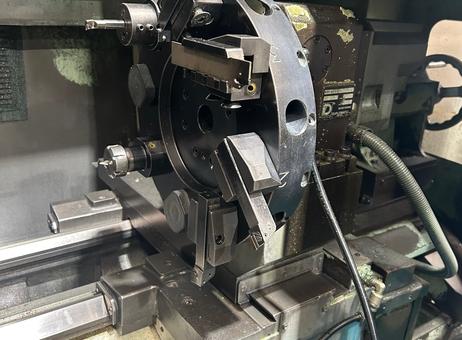

The machine includes a FAGOR 8055 CNC control panel mounted on the left side, featuring a screen, various function keys, and rotary knobs. The control panel and lower white sections of the machine show some signs of dirt and wear, indicating previous use. The lathe is fitted with a 3-jaw chuck mounted inside the machine, visible through the sliding doors with transparent windows. An automatic turret with 8 stations is installed, populated with multiple tool holders and tools. The turret area also exhibits some dirt and residue from use.

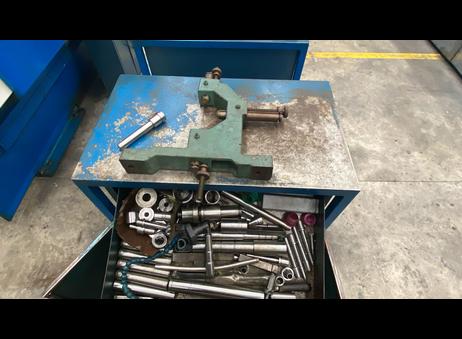

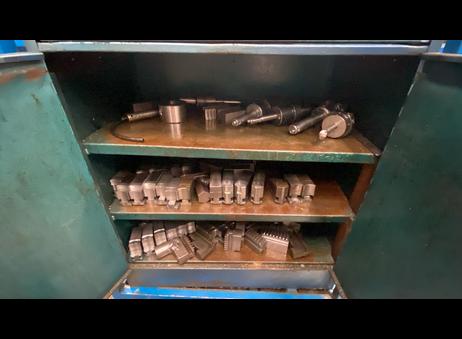

Additional accessories include a steady rest and numerous jaws, with several shelves and drawers containing various lathe accessories such as collets, sleeves, and additional chucks and jaws. These accessories show signs of rust and wear. A blue tool cabinet with an open door and drawer is positioned next to the machine, providing storage for tools and accessories. The lathe bed and chuck appear clean but have some residual oil or coolant stains, consistent with regular operation.
Overall, this PINACHO TAURUS 260 CNC lathe presents a comprehensive setup suitable for various turning applications, with a range of tooling and accessories included. The machine shows typical signs of use but appears structurally intact and complete with essential components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Distance between points: 1000 mm
Ø on bed: 530 mm
Ø on carriage: 315 mm
Ø of main spindle hole: 80 mm
Spindle nose DIN 55027
Morse taper spindle 5
Speed range:
2, 0-2500 rpm
Power 10 hp
Year: 2000
Equipped with:
Control: FAGOR 8055
Chuck: 3 jaws
Automatic turret: 8 stations
Steady rest
Equipped with many jaws
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 64 |
| Last activity | Oct. 26, 2026 |
Distance between points: 1000 mm
Ø on bed: 530 mm
Ø on carriage: 315 mm
Ø of main spindle hole: 80 mm
Spindle nose DIN 55027
Morse taper spindle 5
Speed range:
2, 0-2500 rpm
Power 10 hp
Year: 2000
Equipped with:
Control: FAGOR 8055
Chuck: 3 jaws
Automatic turret: 8 stations
Steady rest
Equipped with many jaws
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a CNC lathe machine, the PINACHO TAURUS 260, manufactured in the year 2000. The machine measures 2970 mm in length, 1720 mm in width, and 1820 mm in height, with a total weight of 2875 kg. It is equipped with a spindle motor power of approximately 7.46 kW and offers a maximum turning speed of 2500 rpm. The lathe has a distance between centers of 1000 mm, with a spindle bore diameter of 80 mm. The maximum diameter that can be turned above the bed is 530 mm, and above the transversing slide is 315 mm. The spindle features a Morse taper 5 and a DIN 55027 spindle nose.
The machine includes a FAGOR 8055 CNC control panel mounted on the left side, featuring a screen, various function keys, and rotary knobs. The control panel and lower white sections of the machine show some signs of dirt and wear, indicating previous use. The lathe is fitted with a 3-jaw chuck mounted inside the machine, visible through the sliding doors with transparent windows. An automatic turret with 8 stations is installed, populated with multiple tool holders and tools. The turret area also exhibits some dirt and residue from use.
Additional accessories include a steady rest and numerous jaws, with several shelves and drawers containing various lathe accessories such as collets, sleeves, and additional chucks and jaws. These accessories show signs of rust and wear. A blue tool cabinet with an open door and drawer is positioned next to the machine, providing storage for tools and accessories. The lathe bed and chuck appear clean but have some residual oil or coolant stains, consistent with regular operation.
Overall, this PINACHO TAURUS 260 CNC lathe presents a comprehensive setup suitable for various turning applications, with a range of tooling and accessories included. The machine shows typical signs of use but appears structurally intact and complete with essential components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 64 |
| Last activity | Oct. 26, 2026 |
