| Manufacturer | Parpas |
|---|---|
| Model | P15 A |
| Year | 2009 |
| Location | Italy
|

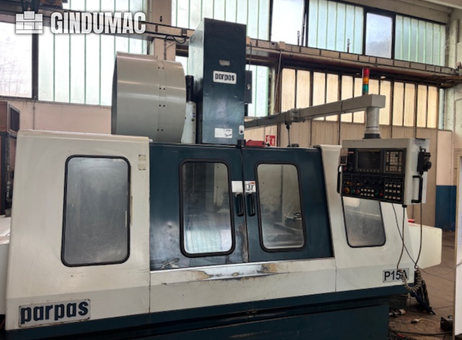

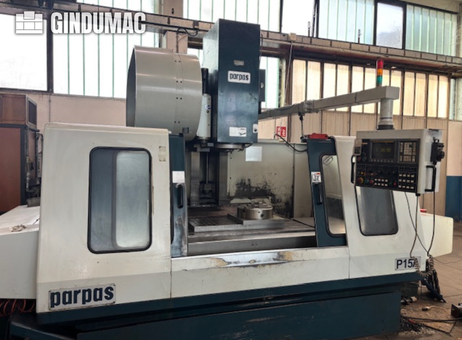

The Parpas P15 A is a vertical machining center manufactured in 2009, designed for precision and versatility in machining tasks. It features three-axis travel with an X-axis movement of 1,450 mm, Y-axis of 650 mm, and Z-axis of 610 mm, providing ample working range for various parts. The machine is equipped with a sturdy work table measuring 1,650 mm by 700 mm, capable of supporting a maximum part weight of up to 1,200 kg. The table includes T-slots sized 22 mm wide, five in number, with a 150 mm pitch, facilitating secure and flexible workpiece clamping.
This machining center utilizes a CAT-50/BT-50 tool holder and includes an automatic tool changer with a capacity of 24 tool pockets. It supports tools up to 110 mm in diameter and 300 mm in length, with a maximum tool weight of 15 kg. The spindle motor delivers 15 kW of power, reaching speeds up to 6,000 rpm, suitable for a range of machining applications. The distance from spindle nose to table ranges between 200 mm and 810 mm, and the spindle center to column distance is 720 mm.

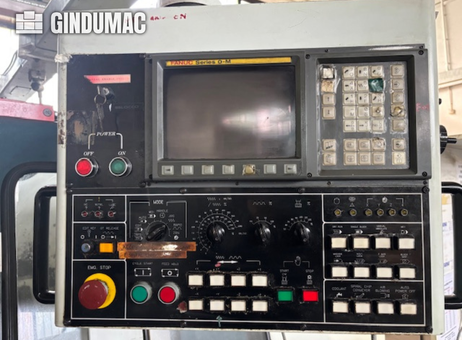

The machine is controlled by a FANUC Series 0-M control system, with the control panel mounted on an articulated arm on the right side for ergonomic operation. The panel includes a screen, numerous buttons, switches, an emergency stop button, and power ON/OFF buttons. The exterior of the machine shows signs of wear and dirt, particularly near the working area, indicating prior use. The work area is enclosed with sliding doors, enhancing safety and containment of machining debris. The overall machine dimensions are 3,500 mm in length and 3,100 mm in width, with a total weight of approximately 13,000 kg.
This Parpas P15 A vertical machining center offers a robust solution for machining needs, combining substantial working volume, a reliable tool changer, and a well-known FANUC control system. Please contact us for further details or to arrange a viewing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis Parpas P15 A was manufactured in 2009. It features a generous X-axis travel of 1,450 mm, Y-axis travel of 650 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1650 x 700 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the Parpas P15 A vertical machining centre we have for sale. Contact us for further details.Table:
Dimensions: 1650 x 700 mm
T-slots (width x number x pitch): 22 x 5 x 150 mm
Travels:
Distance spindle nose to table: 200–810 mm
Distance spindle center to column: 720 mm
Automatic tool changer:
Capacity: 24 positions
Max tool diameter: 110 mm
Max tool length: 300 mm
Tool holder type: CAT-50 / BT-50
General:
Overall dimensions: 3,500 x 3,100 mm
Control Brand: FANUC
Control Model: Series 0-M
Machine Weight: 13000 kg
Max. Tool Weight: 15 kg
Number of Axes: 3
Spindle Power: 15 kW
Spindle Speed: 6000 RPM
Table Load: 1200 kg
Taper Size: ISO 50
X-axis Travel: 1450 mm
Y-axis Travel: 650 mm
Z-axis Travel: 610 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2065 |
| Last activity | Oct. 30, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 3-axis Parpas P15 A was manufactured in 2009. It features a generous X-axis travel of 1,450 mm, Y-axis travel of 650 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1650 x 700 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the Parpas P15 A vertical machining centre we have for sale. Contact us for further details.Table:
Dimensions: 1650 x 700 mm
T-slots (width x number x pitch): 22 x 5 x 150 mm
Travels:
Distance spindle nose to table: 200–810 mm
Distance spindle center to column: 720 mm
Automatic tool changer:
Capacity: 24 positions
Max tool diameter: 110 mm
Max tool length: 300 mm
Tool holder type: CAT-50 / BT-50
General:
Overall dimensions: 3,500 x 3,100 mm
Control Brand: FANUC
Control Model: Series 0-M
Machine Weight: 13000 kg
Max. Tool Weight: 15 kg
Number of Axes: 3
Spindle Power: 15 kW
Spindle Speed: 6000 RPM
Table Load: 1200 kg
Taper Size: ISO 50
X-axis Travel: 1450 mm
Y-axis Travel: 650 mm
Z-axis Travel: 610 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Parpas P15 A is a vertical machining center manufactured in 2009, designed for precision and versatility in machining tasks. It features three-axis travel with an X-axis movement of 1,450 mm, Y-axis of 650 mm, and Z-axis of 610 mm, providing ample working range for various parts. The machine is equipped with a sturdy work table measuring 1,650 mm by 700 mm, capable of supporting a maximum part weight of up to 1,200 kg. The table includes T-slots sized 22 mm wide, five in number, with a 150 mm pitch, facilitating secure and flexible workpiece clamping.
This machining center utilizes a CAT-50/BT-50 tool holder and includes an automatic tool changer with a capacity of 24 tool pockets. It supports tools up to 110 mm in diameter and 300 mm in length, with a maximum tool weight of 15 kg. The spindle motor delivers 15 kW of power, reaching speeds up to 6,000 rpm, suitable for a range of machining applications. The distance from spindle nose to table ranges between 200 mm and 810 mm, and the spindle center to column distance is 720 mm.
The machine is controlled by a FANUC Series 0-M control system, with the control panel mounted on an articulated arm on the right side for ergonomic operation. The panel includes a screen, numerous buttons, switches, an emergency stop button, and power ON/OFF buttons. The exterior of the machine shows signs of wear and dirt, particularly near the working area, indicating prior use. The work area is enclosed with sliding doors, enhancing safety and containment of machining debris. The overall machine dimensions are 3,500 mm in length and 3,100 mm in width, with a total weight of approximately 13,000 kg.
This Parpas P15 A vertical machining center offers a robust solution for machining needs, combining substantial working volume, a reliable tool changer, and a well-known FANUC control system. Please contact us for further details or to arrange a viewing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
