| Manufacturer | OERLIKON |
|---|---|
| Model | TAURUS 3 |
| Year | 1989 |
| Location | Italy
|

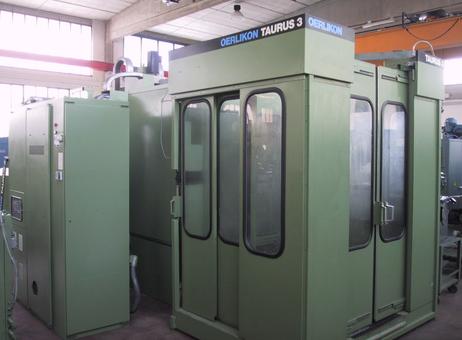

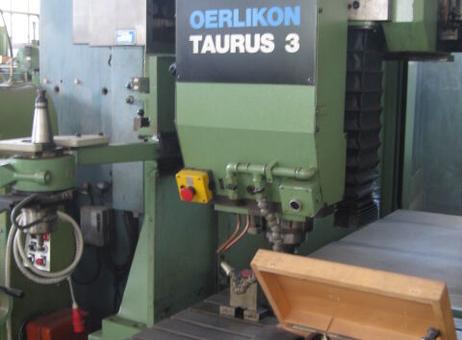

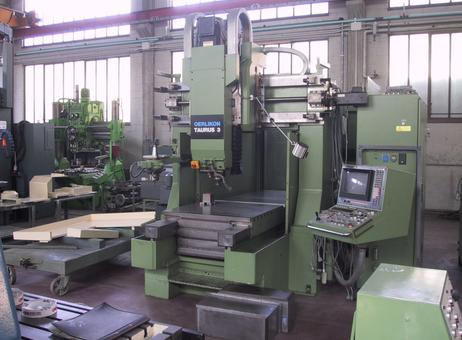

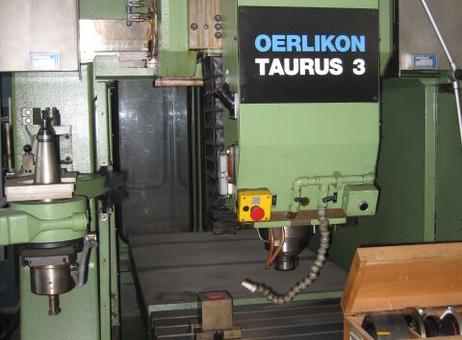

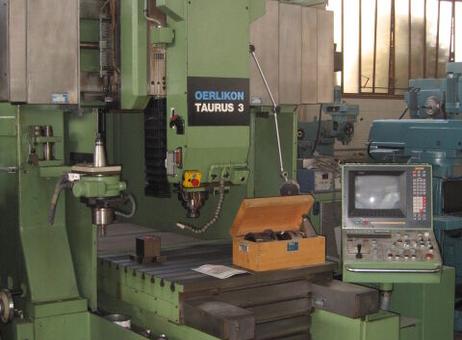

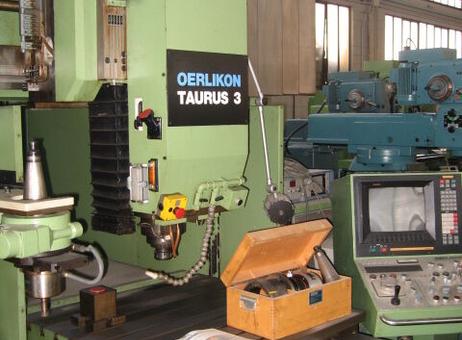

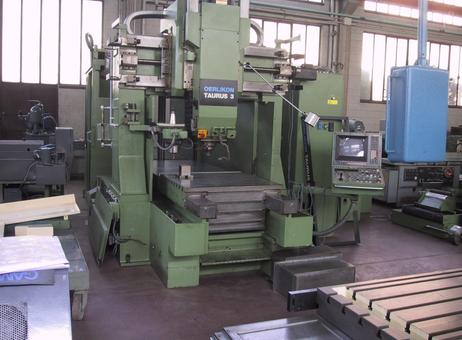

OERLIKON TAURUS 3 – Portal-type work center (vertical machining center)
Overview
This listing describes an Oerlikon TAURUS 3 portal machining center with a large stated work envelope and robust configuration suitable for heavy or large-part machining. The machine is indicated as manufactured in 1989 and is described as having a full enclosure. Operation and maintenance manuals and electrical diagrams are listed as included. The listing also states availability as ready and visible in stock.
Work area and mechanical dimensions
- Longitudinal (X): 1220 mm (48.03 in)
- Vertical ram (Y): 820 mm (32.28 in)
- Cross ram (Z): 610 mm (24.02 in)
- Distance between columns: 1400 mm (55.12 in)
- Distance spindle nose to table: 90–700 mm (3.54–27.56 in)
- Axis support material: tucite
CNC, drives and spindle
- CNC: Siemens-Fanuc
- Drives: Siemens
- Spindle power: 22 kW
- Spindle speed range: 20–5600 rpm
- Spindle taper: ISO50 (Morse taper sleeve listed as ISO50)
Feeds and motion
- X/Y/Z feed range: 0.001–5 m/min (0.04–196.85 ipm)
- Rapid traverse X/Y/Z: 12 m/min (472.44 ipm)
Other technical and auxiliary data
- Motor power: 45 HP
- Total machine weight: 22,000 kg
- Enclosure: full
- Included accessory: RAY hole grinding device
- Documentation: operation and maintenance manuals and electrical diagrams included
- Stated condition/updates: listed as “semi-new machine”
Important note
All information above is taken from the provided product data. Specifications and condition details should be verified by inspection prior to purchase; the seller’s original disclaimer that data may be incomplete or inaccurate applies and no operational claims (tested/working/refurbished/warranty) are made here.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category
Work center
Type
portal
Brand
OERLIKON
Model
TAURUS 3
Capacity
1220x820x610 mm48.03x32.28x24.02 in
Year of manufacture
1989
Technical specifications
Convert toMetricImperial
WORK AREA
Longitudinal (X)
1220 mm48.03 in
Vertical Ram (Y)
820 mm32.28 in
Cross Ram (Z)
610 mm24.02 in
Distance between columns
1400 mm55.12 in
Distance spindle nose/table
90-700 mm3.54-27.56 in
Axis support
tucite
CNC
CNC
Siemens-Fanuc
Drives
Siemens
SPINDLE
Spindle power
22 kW
Rotation speed
20-5600 rpm
Morse taper sleeve
ISO50
FEEDS
X
0.001-5 m/min0.04-196.85 ipm
Y
0.001-5 m/min0.04-196.85 ipm
Z
0.001-5 m/min0.04-196.85 ipm
Rapid X
12 m/min472.44 ipm
Rapid Y
12 m/min472.44 ipm
Rapid Z
12 m/min472.44 ipm
EXTRA
Motor power
45 HP
Total machine weight
22000 kg
Availability
ready
Visible in stock
yes
Enclosure
full
Operation and maintenance manuals
Yes
Electrical diagrams
Yes
Included accessories
RAY hole grinding device
Main interventions/updates made to the machine
semi-new machine
The data provided is based on information available to us, where possible obtained from manufacturers; therefore, despite good faith, due to the nature and complexity of the equipment, such data may be incomplete and/or inaccurate and in no case can their correctness be guaranteed or constitute any contractual obligation. It is always recommended to inspect the equipment and confirm the data.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 181 |
| Last activity | Oct. 31, 2026 |
GAMBA GIOVANNI S.R.L., known by its brand Gamba Macchine, is a trusted Italian company with over 70 years of experience in the machine tool industry. Based in Gardone Val Trompia in the heart of Italy’s industrial region, the company specializes in the sale of high-quality new and used metalworking machinery for chip removal processes.
Founded in 1950 by Giovanni Gamba, the company has grown into a reference point for precision and reliability in the European industrial market. Today, it is managed by the second and third generations of the Gamba family who continue to uphold a strong tradition of technical expertise and customer-oriented service.
Gamba Macchine operates from two strategic locations in the province of Brescia, offering a wide range of machinery from leading international manufacturers. Their deep knowledge of production processes allows them to assist clients in finding the most suitable and efficient solutions for their machining needs.
With a strong focus on quality, performance, and after-sales support, Gamba Macchine is the ideal partner for companies looking to invest in reliable and cost-effective metalworking solutions. Whether you need a single machine or a complete production line, Gamba Macchine delivers value, expertise, and confidence.
