| Manufacturer | Neznámi |
|---|---|
| Model | OD1250/1000 |
| Year | |
| Location | Slovakia
|
This is a reel winding machine manufactured by Neznámi, model OD1250/1000, designed for unwinding rolls with a maximum diameter of 1250 mm and a maximum roll weight of up to 1000 kg. The machine features an unwinding speed capability of 15 meters per minute. It is built on a sturdy blue-green painted metal frame measuring 2600 mm in length, 2600 mm in width, and 1200 mm in height, with a total weight of approximately 400 kg.

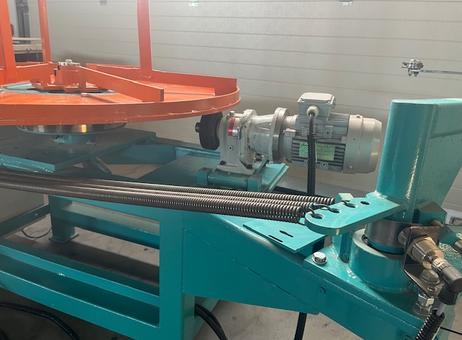

The machine includes a large orange circular unwinding platform with a central hub to securely hold the roll during operation. An electric motor paired with a gearbox is mounted on the frame to drive the unwinding process. The frame also supports two long threaded rods running horizontally, which are likely part of the mechanical adjustment or support system.

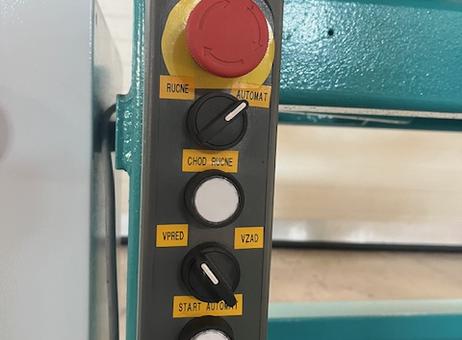

Control of the machine is managed through a comprehensive control panel equipped with multiple push buttons and rotary switches. The panel features labels such as 'RUCNE' (manual), 'AUTOMAT' (automatic), 'CHOD RUCNE' (manual run), 'VPRED' (forward), 'VZAD' (reverse), 'START AUTOMAT' (start automatic), and 'STOP AUTOMAT' (stop automatic), allowing for versatile operation modes. Additional controls include buttons labeled 'START NAPAJANIA' (start power), 'RESET PORUCHY' (reset fault), and a rotary dial labeled 'RYCHLOST' (speed), providing fine control over the machine's functions.

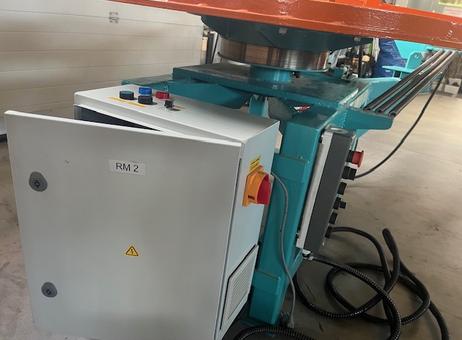

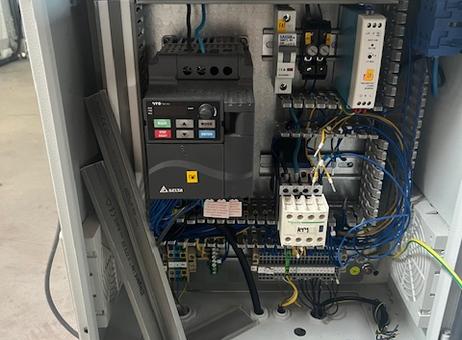

The electrical system is housed within a white cabinet marked 'RM 2' with appropriate warning labels. The cabinet contains a Delta variable frequency drive (VFD) along with various relays and circuit breakers, indicating modern electrical components for motor speed control and safety.

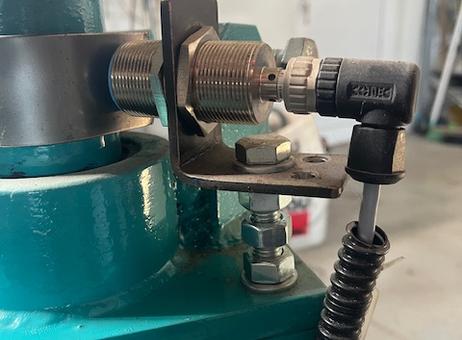

A proximity sensor is mounted on the frame with protective cable management, likely used for position detection or safety interlocking.
Overall, this reel winding machine is a robust industrial unit suitable for handling large and heavy rolls with precise control over unwinding speed and operation modes. Inspection and video demonstration are available for interested buyers.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
reel winding machine with frequency converter, completely repaired, new electrics
inspection possible
video available
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
