New offers - Woodworking machines 170

Industrial timber drying installation comprising four independent NARDI K200 chambers, manufactured in 2016. Approximately 115 m³ of timber load per chamber, approximately 460 m³ total capacity. Independent chamber control and computerised process monitoring with NARDI LEONARDO. Technical data: • Internal dimensions of each chamber: approximately 10.8 × 8.9 × 4.1 m. • Maximum drying temperature: 75°C. • Heating medium: hot water, supply temperature 80°C. • Thermal demand for all four chambers: 401 kW. • Electrical demand per chamber: 33 kW; approximately 132 kW total. • Supply: 400 V, 50 Hz. • Six circulation fans per chamber, 24 fans in total. • Forced air circulation through timber stacks. • Hot-water heat exchangers. • Spray humidification with internal pipes and nozzles. • Controlled fresh-air supply and exhaust. • Heat recovery recuperator preheats incoming fresh air using energy from exhaust air. • Insulated industrial chambers with front loading. Designed for controlled industrial drying of sawn timber. Four independent chambers allow separate drying cycles. Due to language differences, we prefer written contact by email or WhatsApp.

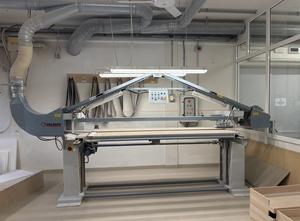

Used professional sander for sale, in good condition and in perfect working order, complete with original CE certificate of conformity. The machine has been regularly tested, demonstrating that it perfectly meets the required quality and profile machining standards. Ideal for carpentry shops and workshops. Technical Details and Specifications: Manufacturer: VOLPATO s.r.l. Type: Sander Model: LBO60ASTS (LBO 60 A STS) Year of Manufacture: 2014 Compliance: Complies with Directives 2006/42/EC, 2006/95/EC, and 2004/108/EC Pickup/Shipping: Shipping costs are the responsibility of the buyer

OMPEC TRO.2L 3650x540 Double Blade Cutter Motorized guide New electrical cabinet New control panel Available as is, or with the option of a complete overhaul and CE certification OMPEC TRO.2L 3650x540 Double Blade Guillotine With motorized guide New electrical cabinet New control panel Available as is, or with the option of a complete overhaul and CE certification

Manufacturer: HFILTRATION Model: HFPBENCH Technical condition: As-is, where-is

Complete industrial line for automatic feeding and chipping wood residues into wood chips for biomass and other applications. Main machine: BRUKS 1500 M industrial disc chipper with AEG 90 kW main motor, belt transmission, nominal motor speed 985 rpm, 380 V, 50 Hz. Included equipment: • Horizontal loading buffer: 13,000 × 2600 × 800 mm, four chain tracks, 1.5 kW motor, suitable for loose or bundled material. • Inclined chain feeder with flights: 3200 × 2600 × 2300 mm, 1.5 kW motor, forward/reverse operation. • Original BRUKS Carrier III M 450 vibrating conveyor, : 14.5 m length, 640 mm internal trough width, 240 mm depth, 3.3 kW motor; mechanical eccentric vibration system. • Powered feed rollers directly before the chipper, 2.2 kW. • BRUKS 1500 M chipper; approximate unit dimensions 2500 × 3000 × 2600 mm. Chip outlet lower edge approximately 1000 mm above floor level. • Modular sound-insulating enclosure around chipper and drive: approximately 6 × 6 × 6 m externally, mineral wool insulation, approximately 500 mm wall thickness. Can be dismantled into modules for transport and reassembled. • Chip discharge belt conveyor: 15,000 × 800 × 600 mm, 5.5 kW motor. • Operator station, local control panel and …

NEW machinery Flow rate: 20.000 m³/h - discarge in to big-bags - reverse-air filter cleaning system Construction with galvanized steel sheet panels 20/10–40/10 EN10346, press bent and rigidly connected with bolts and sealing gasket. Technical Data • Dimensions: 3200 × 2450 × H 8.500 mm approx • Air flow rate: 20.000 m³/h • Filtering media air-to-cloth velocity: 2 m/min • Dust settling chamber located before the filter group • Total filtering surface: 160 m² • Filter media type: antistatic polyester needlefelt, 500 g/m² • Filter media surface treatment: none • Compressed air consumption: 200–400 NI/min at 5–6 bar • Compressed air connection: Ø 2" • Compressed air supply: dry and oil free • Pressure drop: 800 Pa Included • Electronic control unit for programmable filter cleaning • Inspection door with safety microswitch on hopper • Plenum for N°. 02 explosion relief panels 457 × 890 mm ATEX II GD – INERIS15ATEX0001X • Internal fire prevention pipe Ø 2" • Opening for connection to rotary valve • ATEX zone 22 rotary valve with rubber coated blades, direct drive motor kW 0.75 4P • Safety ladder (caged type) and upper safety railing complete with toe board for access to the top cover. …

Offer Title: Minimx Me 20 Single-sided Edgebander Manufacturer: Minimx Model: Me 20 Year of Manufacture: 2010 Type: Single-sided edgebander Technical Condition: as-is, where-is Current State: under power Operational Status: operational but requires overhaul Dimensions (L x W x H): 2000.0 mm x 900.0 mm x 1200.0 mm Weight: 400.0 kg

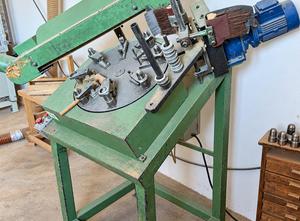

Machine Type: Orbital belt sander for end grain wood Manufacturer: Triade Model: LEV-800 Year of Manufacture: 1990 Application: Sanding the ends of turned wood pieces Equipment: Carousel system Power supply: 380 V Technical condition: Fair, sold as-is

Type: Squaring machine Manufacturer: STEMA Model: SC 400 2.6 Bed length: 2600 mm Engraver blade diameter: 400 mm Power: 5.5 hp Voltage: 380 V Technical condition: As-is, where-is
