New offers - Miscellaneous industrial equipment 3013

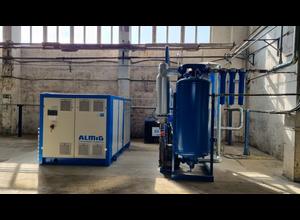

For sale: nearly new technology for supplying compressed air with laboratory-grade purity. The system was designed for a patented compressed-air grinding process, which required the cleanest possible medium (compressed air). The backbone of this system is a compressor from the renowned German company AlMig, which is supplemented by a range of equipment such as a condensate drain, microfilters, and a dryer. List of all equipment: 1) Two-stage screw compressor with a frequency converter, model V-Drive T34 Specifications: 160 kW Max. 13 bar 11.3–29.67 m³/min at 10 bar Air-cooled 2) Automatic condensate drain, model ALM-D 100 (For a 5,000-liter air receiver) 3) Microfilter, model AFM-2.640 Premium (44 m³/min at 7 bar; electric drain) 4) Submicron filter, type AFS-2.640 Premium (44 m³/min at 7 bar; electric drain) 5) HRS 2.750 Type Heat-Regulated Adsorption Dryer (45.83 m³/min at 7 bar; TRB -40°C; energy-saving load-based operation control) 6) Dust filter, type AFP-2.640 (44 m³/min at 7 bar) 7) Microfilter, type AFM-2.640 (44 m³/min at 7 bar) 8) Activated carbon filter, type AFC-2.640 (44 m³/min at 7 bar) 9) Condensate separator, type ALM-OWS 60 (60 m³/min) The system has been recommissioned and has accumulated approximately 200 operating hours. Currently in storage in Pilsen.

Spare GG module. The spare GG we would like to sell will be the one removed from our second unit (TKD). The replacement is planned for next summer in august. Actual the GG as 38127 operating hours. Reason for the replacement is that in Swiss there are new Emission limit which can’t be held by the actual GG (is DLE 1.0). it will be replaced with a up-grade GG with DLE 1.5 combustion system. If you are interested different options could be available: We could sell the GG module as it is. We could sell the GG with the major maintenance (50’000 OH) done by BH under the LTSA. We could sell the GG with the Major maintenance done by BH plus up-grade to DLE1.5. Of course the costs will be different base on the option selected. If the GG will be sold as it is this will be available at the end of 2027. If the GG will have to be up-graded will be made availed only in summer 2028.

General SKU: 204X024 Make: Wysetech No.: 18174 Location: Barneveld Main Features Motor: 2.2 KW Length: 6500 mm Inlet diameter: 200 mm Specified Features - Vertical screw conveyor Vertical conveyor screw: ✓ Tube-model: ✓ Diameter: 75 mm Length: 6500 mm Between inlet and outlet: 6500 mm With hopper: dump cabinet Inlet: 200x200 mm Outlet: Dia. 200 mm Motor: 2,2 kW, 230/400 volt, 1430 rpm Material: Stainless steel 1.4301 (304) General Total height: 7,0 m CE: ✓

General SKU: 022G083 Make: Jöst Dülmen Type: RUF No.: 0670568 Year of construction: 2006 Mounted on frame: ✓ Main Features Material: Stainless steel Length: 2300 mm Width: 260 mm Specified Features - Vibro feeder Vibro feeder: (1x) Feeder diameter: 260mm Feeder length: 2300mm Closed: ✓ Inlet: dia. 250mm Outlet: dia. 145mm With motor: 0,65 KW, 380-440 Volt (2x) Material: Stainless steel 1.4541 (321) General Location: Barneveld Floorspace: 2,5x1,0 M Total height: 1,9 M Weight: 500 KG Material: Stainless steel

Used item Category conveyor and storage technology Item Stainless steel belt conveyor Manufacturer Föratec GmbH & Co. KG Model GUF 3-039 Year of construction 2015

The used Netzsch 1000/110 Chamber Filter Press (), manufactured in 1996, is characterized by its chamber volume of 2,509 liters, offering an efficient solution for demanding separation processes. Technical specifications include a plate format of 1,000 x 1,000 mm, 100 polypropylene plates, a press content of approximately 2,509 liters, a filter area of about 163 m², a filter pressure of 15 bar, and a cake thickness of 30 mm. The press features automatic plate transport and a closed cycle. It is equipped with a complete hydraulic system, a control cabinet, a lighting cabinet, an automatic plate transport system, a filter cloth washing system, and a trough pan. Technical documentation is available. This filter press is suitable for a wide range of industrial applications, including chemical and pharmaceutical industries, wastewater treatment and municipal sewage treatment plants, mining and mineral processing, paper and board industry, ceramic and kaolin industry, metal and galvanic technology, and food industry (depending on the product).

A used chamber filter press from Diefenbach, type FP DE 800, manufactured in 1995. The machine is in good used condition and is suitable for various filtration applications in industry and environmental technology. Technical data for the used chamber filter press Diefenbach FP DE 800: Machine designation: Used chamber filter press. Manufacturer: Diefenbach. Type: FP DE 800. Year of manufacture: 1995. . Plate format: 800 x 800 mm. Number of plates: 75. Press content: Approximately 1,100 liters. Filter area: Approximately 82 m2. Filter pressure: 15 bar. Cake thickness: 30 mm. Discharge: Closed. Plate transport: Automatic. Plate material: Polypropylene. Design: Bridge frame press. Filter cloth washing system: No. Dimensions: L 6,965 x B 1,300 x H 2,022 mm. Empty weight: 7,200 kg. Technical documentation: Yes. Accessories: A control cabinet, a control cabinet, a hydraulic system, a light barrier. Condition: Used good. Price: On request.
