| Manufacturer | Muratec |
|---|---|
| Model | MW20 |
| Year | 1997 |
| Location | Italy
|
Overview
This listing covers Muratec MW20 CNC turning equipment configured as an automated turning cell with integrated gantry loader and stack magazines and Fanuc Series 16-T control. The machines are Muratec MW20 model year 1997 and are CNC-equipped.
Key specifications (from available data)
- Manufacturer / model: Muratec MW20
- Year manufactured: 1997
- CNC: Yes (Fanuc Series 16-T control reported)
- Maximum turning diameter: 200 mm
- Faceplate / chuck diameter: 254 mm
- Spindle speed: up to 2,400 rpm
Configuration and typical use
The cells are described for high-volume turning of rings and discs (bearing line) with an integrated gantry/stack magazine automation arrangement. Units are offered individually or as a package. Typical part type noted is rings/discs up to approximately Ø200 mm.

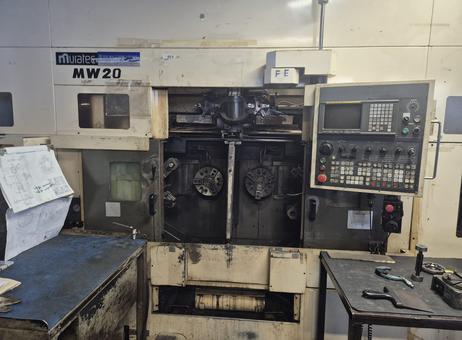

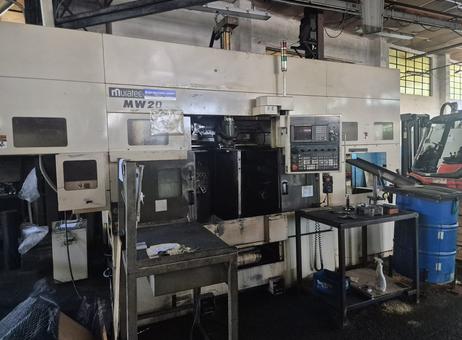

Visible components and condition (image-supported)
- Right-side control panel with display and numeric keypad/monitor.
- Enclosed bed with front access doors.
- Spindle area with chuck visible through an opening and nearby tool turret.
- Two circular tool carousels / tool stations visible in the lower center area.
- Paperwork/drawings taped to a door on the left side.
- General shop grime and wear on the machine base and surrounding surfaces.
Notes and availability
The current listing description indicates the cells are in production with machining demos available and that the machines are intended for bearing-line ring/disc production. Price is available on request. If you require additional verified machine data (cycle counts, full electrical specifications, exact automation capacities or a formal condition report), request those details from the seller prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Automated turning cell: three Muratec MW20 twin-spindle lathes with integrated gantry loader and stack magazines, Fanuc 16-T control. Currently in production on rings/discs up to ~Ø200 mm (bearing line). Available individually or as a package.
SPECIFICATIONS:
- Year: 1997 (04, 06-08 and 11/1997)
- Layout: 2 front spindles + integrated gantry with stack magazine
- Chucks: 2 × 10" (Ø254 mm)
- Spindle centre distance: 440 mm
- Spindle speed: 24 – 2,400 rpm
- Turrets: 2 × 10 stations
- Gantry loader: capacity 2 × 6 kg · parts up to Ø200 × 120 mm
- Typical parts: rings/discs (bearing line)
- Control: Fanuc Series 16-T
- Power supply: 200 V · 210-216 A (transformer for 400 V)
- Condition: in production, machining demo available
Price: on request.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 21 |
| Last activity | Oct. 27, 2026 |
Automated turning cell: three Muratec MW20 twin-spindle lathes with integrated gantry loader and stack magazines, Fanuc 16-T control. Currently in production on rings/discs up to ~Ø200 mm (bearing line). Available individually or as a package.
SPECIFICATIONS:
- Year: 1997 (04, 06-08 and 11/1997)
- Layout: 2 front spindles + integrated gantry with stack magazine
- Chucks: 2 × 10" (Ø254 mm)
- Spindle centre distance: 440 mm
- Spindle speed: 24 – 2,400 rpm
- Turrets: 2 × 10 stations
- Gantry loader: capacity 2 × 6 kg · parts up to Ø200 × 120 mm
- Typical parts: rings/discs (bearing line)
- Control: Fanuc Series 16-T
- Power supply: 200 V · 210-216 A (transformer for 400 V)
- Condition: in production, machining demo available
Price: on request.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Overview
This listing covers Muratec MW20 CNC turning equipment configured as an automated turning cell with integrated gantry loader and stack magazines and Fanuc Series 16-T control. The machines are Muratec MW20 model year 1997 and are CNC-equipped.
Key specifications (from available data)
- Manufacturer / model: Muratec MW20
- Year manufactured: 1997
- CNC: Yes (Fanuc Series 16-T control reported)
- Maximum turning diameter: 200 mm
- Faceplate / chuck diameter: 254 mm
- Spindle speed: up to 2,400 rpm
Configuration and typical use
The cells are described for high-volume turning of rings and discs (bearing line) with an integrated gantry/stack magazine automation arrangement. Units are offered individually or as a package. Typical part type noted is rings/discs up to approximately Ø200 mm.
Visible components and condition (image-supported)
- Right-side control panel with display and numeric keypad/monitor.
- Enclosed bed with front access doors.
- Spindle area with chuck visible through an opening and nearby tool turret.
- Two circular tool carousels / tool stations visible in the lower center area.
- Paperwork/drawings taped to a door on the left side.
- General shop grime and wear on the machine base and surrounding surfaces.
Notes and availability
The current listing description indicates the cells are in production with machining demos available and that the machines are intended for bearing-line ring/disc production. Price is available on request. If you require additional verified machine data (cycle counts, full electrical specifications, exact automation capacities or a formal condition report), request those details from the seller prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
