| Manufacturer | MORI SEIKI |
|---|---|
| Model | NH-5000 40 |
| Year | 2003 |
| Location | Hungary
|
This MORI SEIKI NH-5000 40 is a 4-axis horizontal machining centre manufactured in 2003. It features a robust construction with a machine weight of approximately 13,000 kg and a footprint measuring 6,000 mm in length and 4,000 mm in width. The machining centre includes a table sized 500 × 500 mm, capable of supporting a maximum workpiece weight of 500 kg. The machine offers axis travels of 730 mm on both X and Y axes and 880 mm on the Z axis.
The spindle is designed with a BT40 taper and delivers a maximum speed of 20,000 rpm, powered by a 30 kW motor. The tool magazine holds up to 180 tools, providing extensive flexibility for various machining operations. The machine is equipped with a dual-pallet automatic changer, enhancing productivity by allowing continuous machining with minimal downtime.

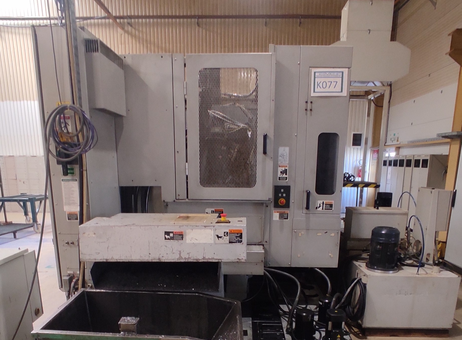

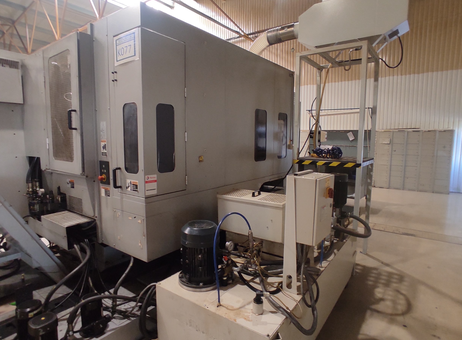

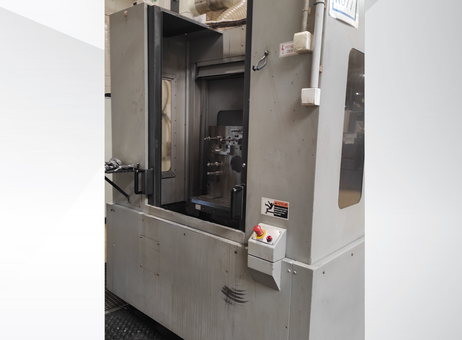

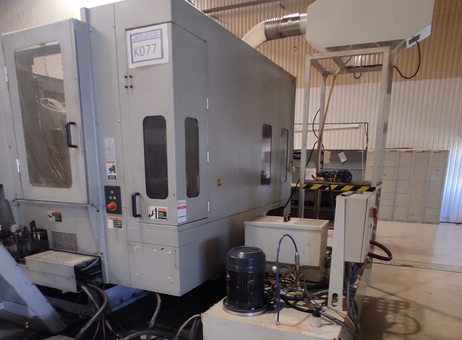

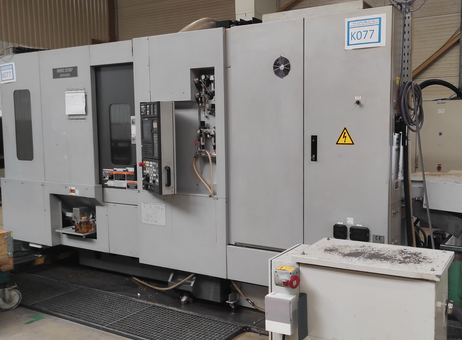

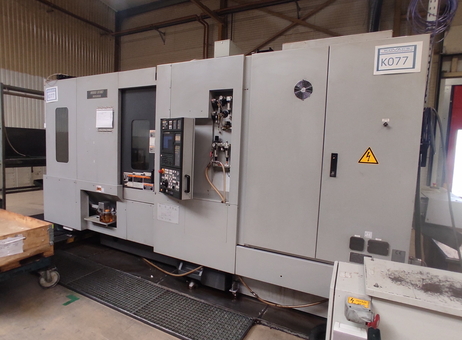

From the images, the machining centre includes a protective mesh door and a control panel located on the right side. An emergency stop button is positioned on the front panel for safety. The base features a black bin or tray, likely for chip or coolant collection. Hydraulic or coolant system connections, including cables and hoses, are visible, indicating integrated fluid management systems.
The exterior shows signs of wear and surface scratches, particularly on the chip/coolant tray and lower front panel, but overall the machine appears intact with no major damage. Warning labels and electrical hazard signs are present, underlining adherence to safety standards.

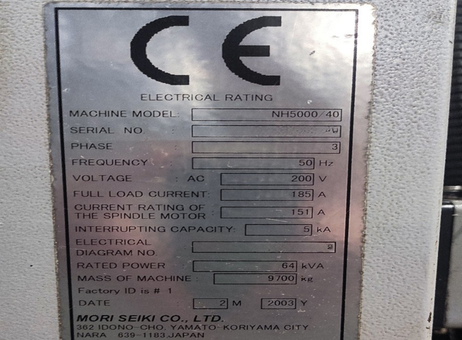

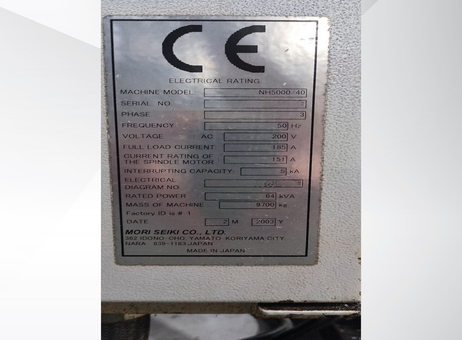

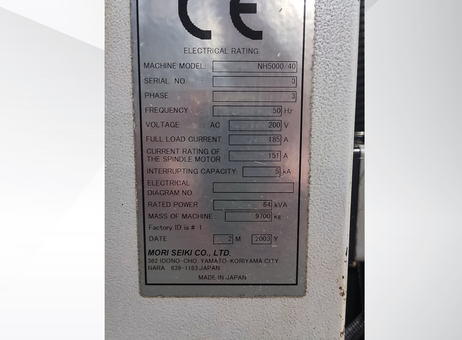

Electrical specifications include a rated power of 64 kVA, operating at 50 Hz and AC 200 V. The machine was manufactured by MORI SEIKI CO., LTD. in Japan. This machining centre is suited for high-speed precision machining tasks requiring a versatile tool setup and automated pallet handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis MORI SEIKI NH-5000 40 was manufactured in 2003, featuring a robust horizontal machining centre with a spindle speed up to 20,000 rpm and a power range of 22-30 kW. It includes a versatile tool magazine with a capacity up to 180 tools and a dual-pallet automatic changer to enhance productivity. Pallet size is 500 × 500 mm, supporting a maximum workpiece height of 1,000 mm. Consider the opportunity to buy this MORI SEIKI NH-5000 40 horizontal machining centre. Contact us for more information.Spindle: BT40 taper; standard speed 12,000 rpm; optional speeds 14,000 / 20,000 rpm; power 22–30 kW (configuration-dependent)
Tool magazine: 40 / 60 / 120 / 180 tools; max tool diameter (adjacent) ≈ 75 mm; max tool length ≈ 400 mm
Pallet: size 500 × 500 mm; max workpiece diameter ≈ 800 mm; max workpiece height ≈ 1,000 mm; max pallet load 400–500 kg; APC: 2‑pallet automatic changer
Feed rates: rapid traverse X/Y/Z 60 m/min; cutting feed 30 m/min
Accuracy: positioning ±0.003 mm; repeatability ±0.002 mm
Weight and dimensions: machine weight 11,000–13,000 kg; approximate footprint 4.0 × 6.0 m
Machine Weight: 13000 kg
Number of Axes: 4
Spindle Power: 30 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40
X-axis Travel: 730 mm
Y-axis Travel: 730 mm
Z-axis Travel: 880 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2090 |
| Last activity | Oct. 29, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 4-axis MORI SEIKI NH-5000 40 was manufactured in 2003, featuring a robust horizontal machining centre with a spindle speed up to 20,000 rpm and a power range of 22-30 kW. It includes a versatile tool magazine with a capacity up to 180 tools and a dual-pallet automatic changer to enhance productivity. Pallet size is 500 × 500 mm, supporting a maximum workpiece height of 1,000 mm. Consider the opportunity to buy this MORI SEIKI NH-5000 40 horizontal machining centre. Contact us for more information.Spindle: BT40 taper; standard speed 12,000 rpm; optional speeds 14,000 / 20,000 rpm; power 22–30 kW (configuration-dependent)
Tool magazine: 40 / 60 / 120 / 180 tools; max tool diameter (adjacent) ≈ 75 mm; max tool length ≈ 400 mm
Pallet: size 500 × 500 mm; max workpiece diameter ≈ 800 mm; max workpiece height ≈ 1,000 mm; max pallet load 400–500 kg; APC: 2‑pallet automatic changer
Feed rates: rapid traverse X/Y/Z 60 m/min; cutting feed 30 m/min
Accuracy: positioning ±0.003 mm; repeatability ±0.002 mm
Weight and dimensions: machine weight 11,000–13,000 kg; approximate footprint 4.0 × 6.0 m
Machine Weight: 13000 kg
Number of Axes: 4
Spindle Power: 30 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40
X-axis Travel: 730 mm
Y-axis Travel: 730 mm
Z-axis Travel: 880 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This MORI SEIKI NH-5000 40 is a 4-axis horizontal machining centre manufactured in 2003. It features a robust construction with a machine weight of approximately 13,000 kg and a footprint measuring 6,000 mm in length and 4,000 mm in width. The machining centre includes a table sized 500 × 500 mm, capable of supporting a maximum workpiece weight of 500 kg. The machine offers axis travels of 730 mm on both X and Y axes and 880 mm on the Z axis.
The spindle is designed with a BT40 taper and delivers a maximum speed of 20,000 rpm, powered by a 30 kW motor. The tool magazine holds up to 180 tools, providing extensive flexibility for various machining operations. The machine is equipped with a dual-pallet automatic changer, enhancing productivity by allowing continuous machining with minimal downtime.
From the images, the machining centre includes a protective mesh door and a control panel located on the right side. An emergency stop button is positioned on the front panel for safety. The base features a black bin or tray, likely for chip or coolant collection. Hydraulic or coolant system connections, including cables and hoses, are visible, indicating integrated fluid management systems.
The exterior shows signs of wear and surface scratches, particularly on the chip/coolant tray and lower front panel, but overall the machine appears intact with no major damage. Warning labels and electrical hazard signs are present, underlining adherence to safety standards.
Electrical specifications include a rated power of 64 kVA, operating at 50 Hz and AC 200 V. The machine was manufactured by MORI SEIKI CO., LTD. in Japan. This machining centre is suited for high-speed precision machining tasks requiring a versatile tool setup and automated pallet handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
