| Manufacturer | MMG |
|---|---|
| Model | REACTOR TRIPLE AGITACIÓN |
| Year | 2026 |
| Location | Spain
|
Overview:

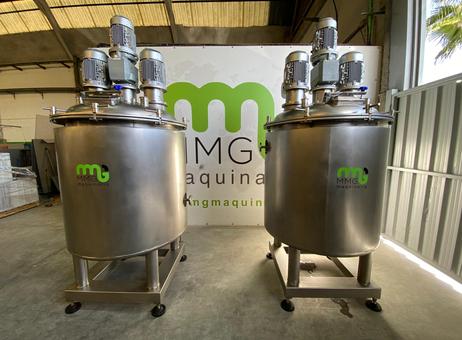

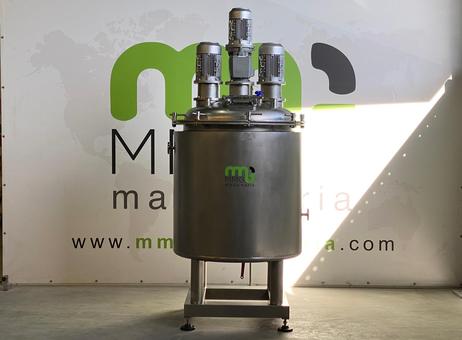

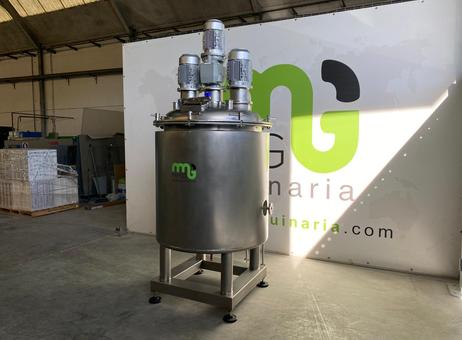

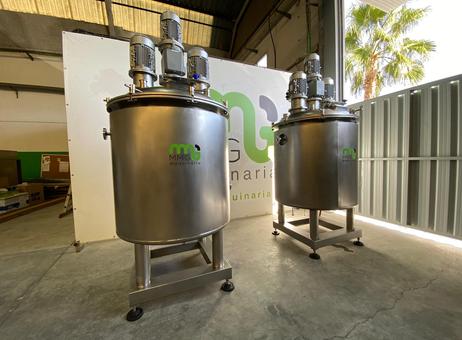

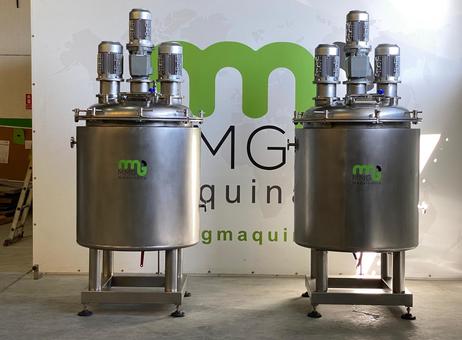

Vertical cylindrical stainless-steel reactor designed for food, pharmaceutical and similar applications where sanitary construction and cleanability are required. Nominal capacity 600 liters. All wetted parts are made from AISI 316/316L stainless steel and the unit is engineered for easy cleaning and drainability, with polished welds and sanitary radii.
Construction and thermal system:

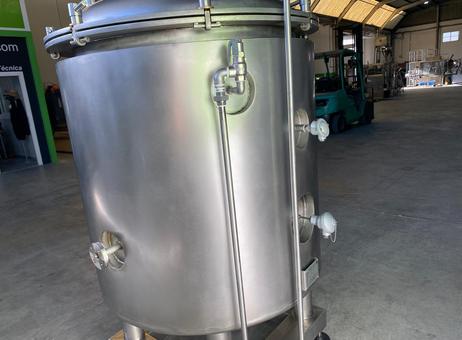

The vessel has a Klopper-type dished bottom (diameter 1,000 mm) and a Klopper-type top dished head. The tank shell height is 1,000 mm. The reactor is enclosed by a double jacket separated by a 40-mm gap and includes external thermal insulation. Steam jacket design pressure is 2.5 bar and product design pressure is 1 bar. The assembly is supported on three round-tube legs arranged at 120° and welded to the tank base; leg height is 560 mm and adjustable bases are provided for leveling.
Manways, ports and drainage:

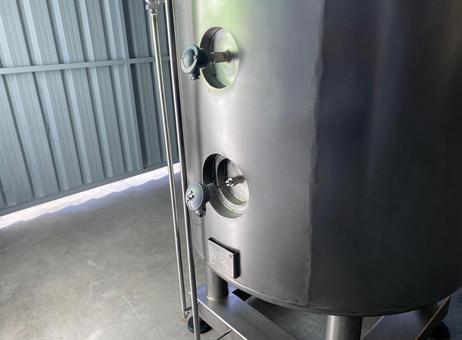

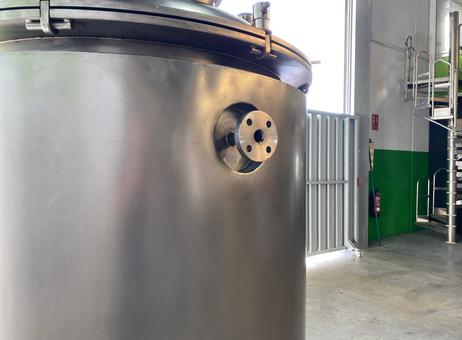

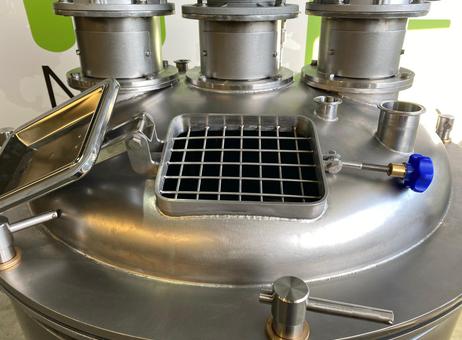

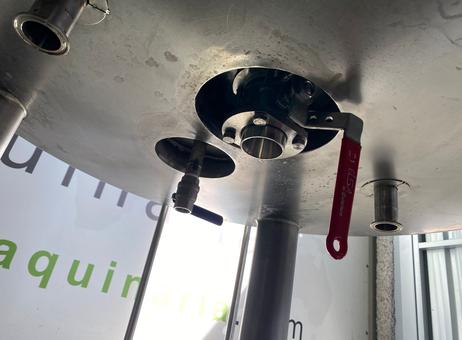

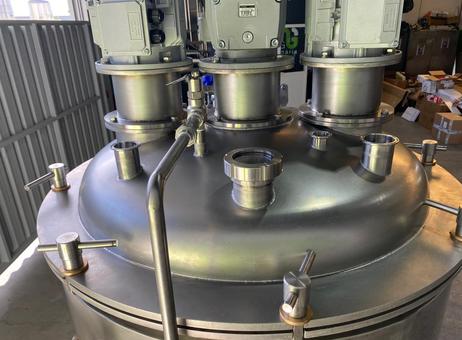

Top manhole (upper Klopper) dimensions: 240 mm long by 200 mm wide. The top head includes a manhole for additions, a sight glass and multiple ports for placement of sanitary cleaning balls and product inlets. Outlet connection diameter: 60 mm. Double bottom height: 1,000 mm. Ferrule height: 1,100 mm; ferrule diameter: 1,060 mm. Total vessel diameter: 1,100 mm and total height: 2,700 mm. Upper Klopper height: 200 mm.
Agitation and drives:

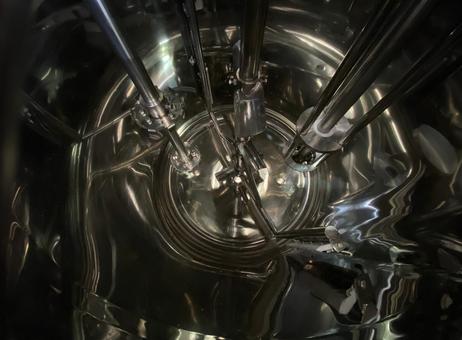

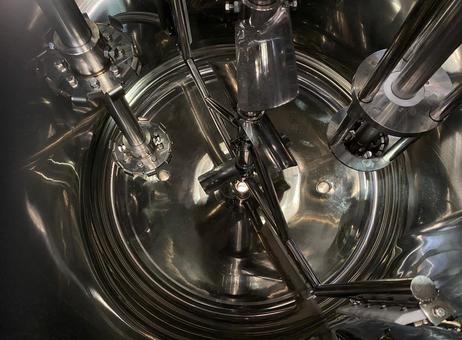

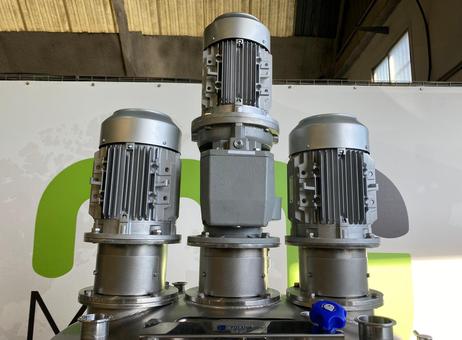

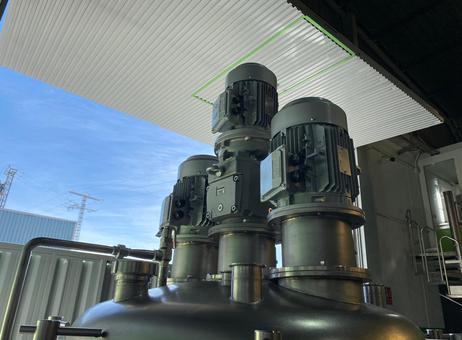

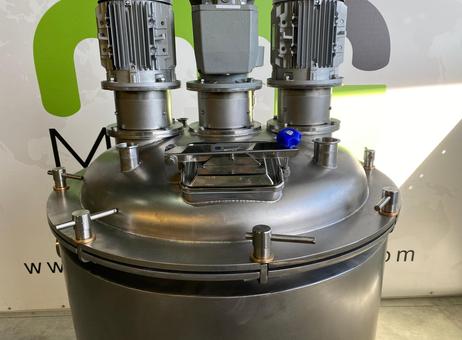

The reactor incorporates three agitation systems: a scraper-type anchor (triple-helix with scraper) driven by a central motor, a double Cowles-type (double-height) high-shear agitator, and an emulsifier. Motor mounting is arranged on three brackets at the center of the lid. Motor heights: central motor 750 mm; side motor 550 mm. Agitator power ratings: scraper-type anchor 2.2 kW; double Cowles-type 4 kW; emulsifier 4 kW.
Hygiene and cleaning:
A CIP circuit with sanitary cleaning balls and a rotating head is provided to perform automatic cleaning cycles. Design emphasizes sanitary features and complete drainability for brines, acidic products or pharmaceutical formulations.
Additional note:
IMPORTANT: MANUFACTURING TIME 90–150 DAYS.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Vertical cylindrical tank made of food-grade stainless steel. It incorporates three types of agitation: triple-helix agitation with a scraper, double Cowles-type agitation, and an emulsifier. Manufactured from AISI 316/316L steel for parts in contact with the product.
Recommended for brines, acidic products, or pharmaceuticals, with a design focused on ease of cleaning: polished welds, sanitary radii, and complete drainability.
The unit features a CIP circuit with sanitary cleaning balls and a rotating head to perform automatic cleaning cycles.

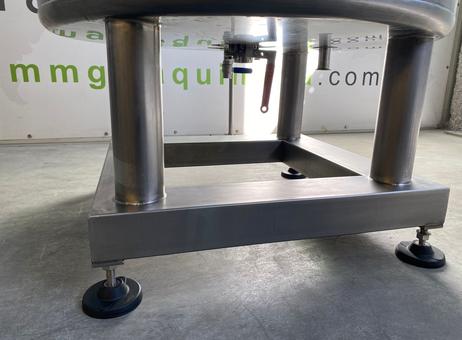

The unit features a double jacket and external thermal insulation for high-temperature protection. It is supported on a tubular frame with adjustable bases for leveling the unit.
The reactor, with a nominal capacity of 600 liters, consists of a Klopper-type bottom with a diameter of 1,000 mm, a shell 1,000 mm high, and is closed at the top by another Klopper bottom with a manhole for adding additives, a sight glass, and various ports for positioning the cleaning balls and product inlets. In the center of the lid are three mounting brackets that support the motors driving the mixing/agitating mechanism.
The agitation system consists of a vertical shaft coupled to the drive gearmotor, on which two components are mounted: a paddle agitator and a scraper assembly; another double-height Cowles-type agitation system connected directly to a motor designed to exert high shear stress on the product at high speed; and a third motor connected to a shaft equipped with a system to efficiently emulsify the mixture.
This reactor is encased in a second jacket with similar characteristics, separated by a 40-mm gap; this space serves to heat the product and maintain it at the appropriate temperature for the agitation process.
The assembly described is supported by three round-tube legs arranged at 120° and welded to the base of the tank.
Specifications
Capacity: 600 liters
Central motor height: 750 mm
Side motor height: 550 mm
Upper manhole length: 240 mm
Upper manhole width: 200 mm
Leg height: 560 mm
Double bottom height: 1,000 mm
Ferrule height: 1,100 mm
Upper Klopper height: 200 mm
Total height: 2,700 mm
Ferrule diameter: 1,060 mm
Total diameter: 1,100 mm
Outlet diameter: 60 mm
Scraper-type anchor agitator: 2.2 kW
Double Cowles-type agitator: 4 kW
Emulsifier-type agitator: 4 kW
Product pressure: 1 bar
Steam jacket pressure: 2.5 bar
IMPORTANT: MANUFACTURING TIME 90–150 DAYS
