| Manufacturer | MCM |
|---|---|
| Model | Jet Five Mirror |
| Year | 2003 |
| Location | Italy
|
| Category | Machining centers - 5 axis |
| Axis X | 3000 mm |
| Axis Y | 2000 mm |
| Axis Z | 2000 mm |
| CNC | |
| Spindle taper | |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 04/06/2026 |
| Product id | P211129050 |
| Language |
MCM Jet Five Mirror
Obráběcí centrum - 5 osé MCM Jet Five Mirror
MCM Jet Five Mirror
MCM Jet Five Mirror Bearbeitungszentrum 5-Achsen
MCM Jet Five Mirror
MCM Jet Five Mirror 5 axis Machining Center
Centro de mecanizado 5 ejes MCM Jet Five Mirror
Centre d'usinage 5 axes MCM Jet Five Mirror
MCM Jet Five Mirror
MCM Jet Five Mirror
Centro di lavoro 5 assi MCM Jet Five Mirror
MCM Jet Five Mirror
MCM Jet Five Mirror
Centrum obróbcze 5osi MCM Jet Five Mirror
MCM Jet Five Mirror
MCM Jet Five Mirror
MCM Jet Five Mirror 5-осевой обрабатывающий центр
MCM Jet Five Mirror
MCM Jet Five Mirror
5 eksenli işleme merkezi MCM Jet Five Mirror
|

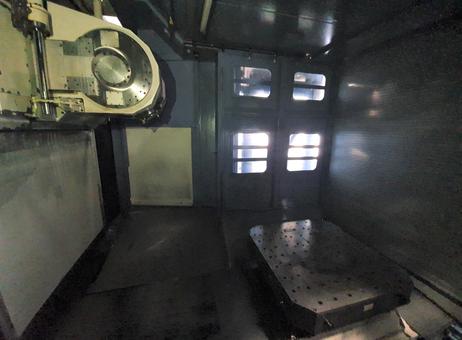

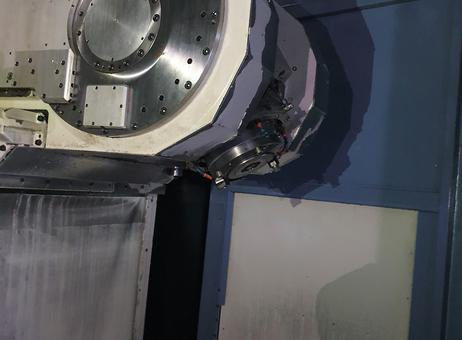

This listing features an MCM Jet Five Mirror 5-axis machining center manufactured in 2003. The machine is part of a comprehensive FMS (Flexible Manufacturing System) cell that includes two 5-axis machining centers, an 8-pool pallet system with pallet dimensions of 1250 x 1250 mm and a maximum load capacity of 3000 kg, as well as a pallet storage system. The machining center offers travel ranges of 3000 mm on the X-axis, 2000 mm on the Y-axis, and 2000 mm on the Z-axis. It supports rotational axes with an A-axis rotation of 175° and a highly precise B-axis with 0.001° resolution. The tool changer features 640 positions, and the spindle uses an HSK-A100 taper with a maximum speed of 3000 rpm driven by a 50 kW motor. Feed rates are up to 40 m/min on the X and Y axes and 30 m/min on the Z axis. The control system is Siemens 840D, and the machine includes a chip conveyor for efficient chip removal.

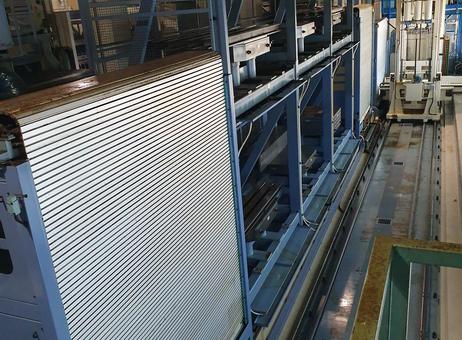

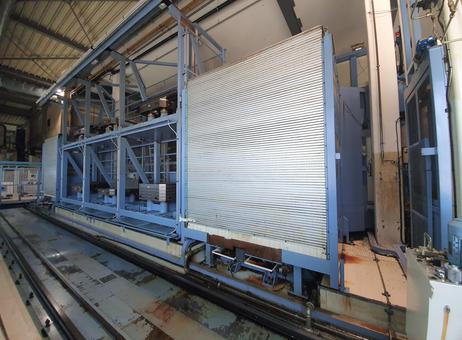

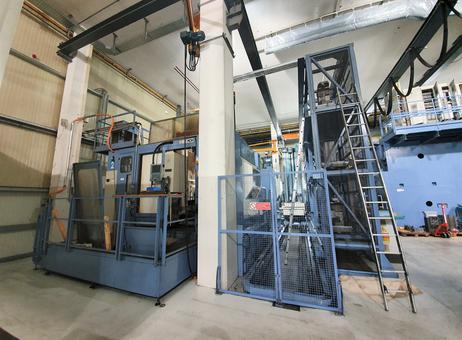

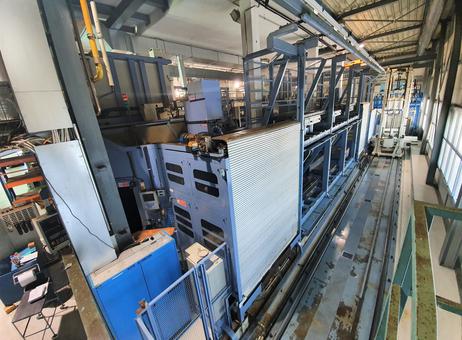

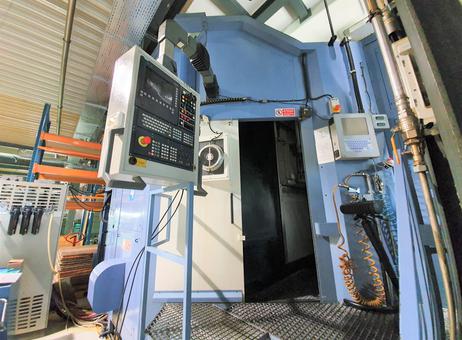

The machine is housed within a large blue and white enclosure that includes ventilation fans for cooling. Safety features include multiple emergency stop buttons and safety warning signs prominently displayed. Protective metal mesh panels and safety fencing surround the machine to ensure operator safety. The structure incorporates a blue metal framework with integrated conveyors or slide systems, as well as numbered workstations or tool holders. Access to upper levels is provided via an attached ladder, and an overhead crane or hoist system is installed above the machine for handling heavy components. The machine appears clean and well-maintained, though the floor around it shows some signs of use with minor stains and wear. Additional accessories observed include a coiled orange air hose inside the enclosure.
Overall, this robust machining cell is designed for high-precision 5-axis machining with extensive automation and safety features suitable for demanding industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

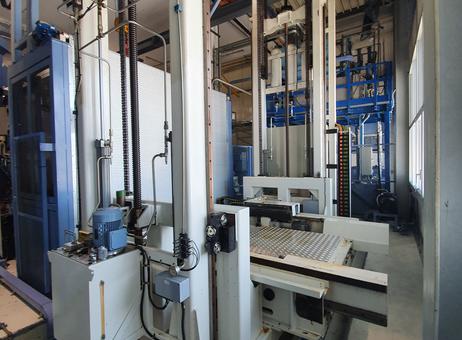

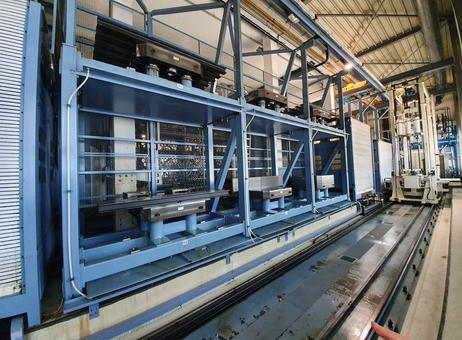

FMS SYSTEM:
Machining Cell consisting of:
Two 5-Axis machining Centres

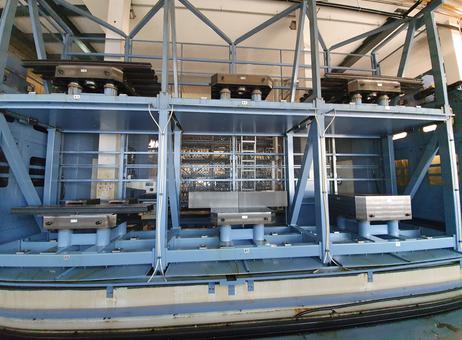

8-Pool Pallet System(1250 x 1250mm x 3.000kg)
Pallet Storage System
X= 3.000 mm, Y= 2.000H/1.720V, Z= 2.000mm;
A= 175°, B=0,001°; 640 Pos. ATC ;
Spindle Taper HSK-A100;
Spindle n= 3.000; Motor 50kW;
Feeds: X,Y= 40m/min, Z= 30m/min
Siemens 840D, Chip-conveyor;
Serial No. 1450-03 and 1451-3, both from 2003
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What features does this MCM Jet Five Mirror include?
This MCM Jet Five Mirror 5 axis Machining Center features an FMS system with an 8-position pallet pool (1250 x 1250mm, 3,000kg).
What is the working range of the machine?
This machining center has a working range of X= 3,000mm, Y= 2,000mm (H/1,720V), and Z= 2,000mm.
What are the axis rotations for this model?
This MCM Jet Five Mirror includes an A-axis rotation of 175° and a B-axis rotation of 0.001°.
How many positions does the tool changer have?
This equipment is equipped with a 640-position automatic tool changer (ATC).
What is the spindle taper and speed of the machine?
This machining center has a spindle taper of HSK-A100 and operates at a spindle speed of 3,000 RPM.
What is the motor power of this MCM Jet Five Mirror?
This MCM Jet Five Mirror has a motor power of 50kW.
What are the feed rates for this equipment?
This equipment has feed rates of 40m/min for X and Y axes, and 30m/min for the Z axis.
When was this MCM Jet Five Mirror manufactured?
This MCM Jet Five Mirror was manufactured in 2003 and is currently dismantled.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
