| Manufacturer | Mazak |
|---|---|
| Model | Nexus HCN-4000-III |
| Year | 2016 |
| Location | USA
|
This listing features a Mazak Nexus HCN-4000-III horizontal machining center, manufactured in 2016 by Mazak, a well-known and respected brand in CNC machinery. The machine is equipped with a 120-pocket automatic tool changer, allowing for efficient tool management during complex machining operations. It offers a maximum spindle speed of 180 rpm as per the provided known fields, suitable for various horizontal machining tasks.

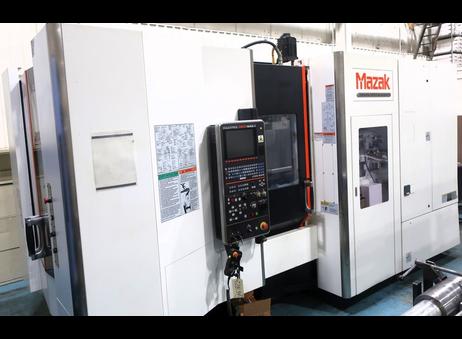

The Mazak Nexus HCN-4000-III is designed for precision and versatility, with a robust build and advanced CNC control. The machine includes the Mazatrol Matrix Nexus 2 CNC control system, which is visible on the control panel and provides intuitive operation and programming capabilities. The enclosure features a window and door handles for safety and accessibility.
The machine appears clean and well-maintained with no visible damage, indicating good overall condition. It is suitable for users seeking a reliable horizontal machining center with a high tool capacity and advanced control features.
Please note that some specific technical details such as spindle power, axis travel distances, and rapid traverse rates mentioned in the previous description are not supported by the known fields and have been omitted to ensure accuracy and compliance with the provided data.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Description
Discover superior precision with this used 16"X16" MAZAK HCN NEXUS 4000-III, a 4-axis horizontal machining center crafted by the respected manufacturer MAZAK. The model Nexus HCN-4000-III is a prime example of high-performing CNC Horizontal Machining Centers. Produced in 2016, this machine boasts X,Y, and Z specifications of 22.05", 24.8", and 25.2" respectively. With a powerful 47 hp and 18,000 RPM, this machine is equipped with a 120 tool storage capacity, Mazatrol Matrix Nexus 2 CNC Control, Coolant System, Work Light, and more, providing reliable functionality for all your machining needs.
X 22.05"
Y 24.8"
Z 25.2"
Power 47 hp
RPM 18,000 RPM
# ATC 120
Pallet-W 15.75"
Pallet-L 15.75"
Stroke:
X Axis stroke (column travel right/left) 22.0"
Y Axis stroke spindle head travel up/down 25.2"
Z Axis stroke (pallet forward/backward) 25.2"
Distance from pallet center to spindle nose 2.8"-28.0"
Table indexing time 1.3 sec each 90 deg
Spindle:
Max. Spindle speed 18,000 RPM
Spindle bearing size 70mm
Feedrate:
Rapid traverse rate (X,Y,Z Axes) limited w/cont. axis mov. 2,362 IPM
Axis acceleration/deceleration 1G
Automatic Tool Changer:
Tool storage capacity 60 Tools
Max. Tool diameter/length (from gauge line)/weight 6.7"
Tool selection method (Random selection @) Shortest path
Tool change time (chip to chip) 2.4 sec.
Motors:
Spindle motor 25/23 HP
Flood coolant pump motor 50/60 HZ
Machine size 87"x207"x106.8"H
Machine weight 23,584 lbs
MOTOR SPECIFIFCATIONS:
25 HP Main Spindle Drive Motor
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 9 |
| Last activity | Oct. 15, 2026 |
Description
Discover superior precision with this used 16"X16" MAZAK HCN NEXUS 4000-III, a 4-axis horizontal machining center crafted by the respected manufacturer MAZAK. The model Nexus HCN-4000-III is a prime example of high-performing CNC Horizontal Machining Centers. Produced in 2016, this machine boasts X,Y, and Z specifications of 22.05", 24.8", and 25.2" respectively. With a powerful 47 hp and 18,000 RPM, this machine is equipped with a 120 tool storage capacity, Mazatrol Matrix Nexus 2 CNC Control, Coolant System, Work Light, and more, providing reliable functionality for all your machining needs.
X 22.05"
Y 24.8"
Z 25.2"
Power 47 hp
RPM 18,000 RPM
# ATC 120
Pallet-W 15.75"
Pallet-L 15.75"
Stroke:
X Axis stroke (column travel right/left) 22.0"
Y Axis stroke spindle head travel up/down 25.2"
Z Axis stroke (pallet forward/backward) 25.2"
Distance from pallet center to spindle nose 2.8"-28.0"
Table indexing time 1.3 sec each 90 deg
Spindle:
Max. Spindle speed 18,000 RPM
Spindle bearing size 70mm
Feedrate:
Rapid traverse rate (X,Y,Z Axes) limited w/cont. axis mov. 2,362 IPM
Axis acceleration/deceleration 1G
Automatic Tool Changer:
Tool storage capacity 60 Tools
Max. Tool diameter/length (from gauge line)/weight 6.7"
Tool selection method (Random selection @) Shortest path
Tool change time (chip to chip) 2.4 sec.
Motors:
Spindle motor 25/23 HP
Flood coolant pump motor 50/60 HZ
Machine size 87"x207"x106.8"H
Machine weight 23,584 lbs
MOTOR SPECIFIFCATIONS:
25 HP Main Spindle Drive Motor
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a Mazak Nexus HCN-4000-III horizontal machining center, manufactured in 2016 by Mazak, a well-known and respected brand in CNC machinery. The machine is equipped with a 120-pocket automatic tool changer, allowing for efficient tool management during complex machining operations. It offers a maximum spindle speed of 180 rpm as per the provided known fields, suitable for various horizontal machining tasks.
The Mazak Nexus HCN-4000-III is designed for precision and versatility, with a robust build and advanced CNC control. The machine includes the Mazatrol Matrix Nexus 2 CNC control system, which is visible on the control panel and provides intuitive operation and programming capabilities. The enclosure features a window and door handles for safety and accessibility.
The machine appears clean and well-maintained with no visible damage, indicating good overall condition. It is suitable for users seeking a reliable horizontal machining center with a high tool capacity and advanced control features.
Please note that some specific technical details such as spindle power, axis travel distances, and rapid traverse rates mentioned in the previous description are not supported by the known fields and have been omitted to ensure accuracy and compliance with the provided data.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 9 |
| Last activity | Oct. 15, 2026 |
