| Manufacturer | LAZZURI |
|---|---|
| Model | FX 3200 |
| Year | 2026 |
| Location | Poland
|

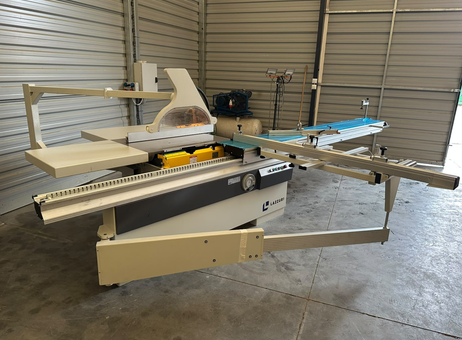

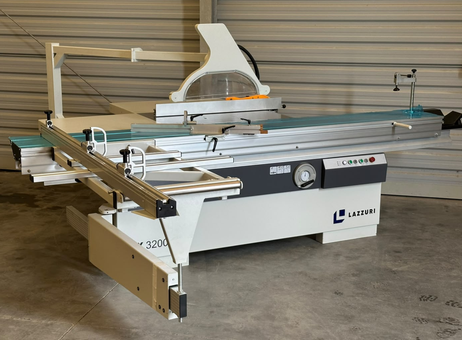

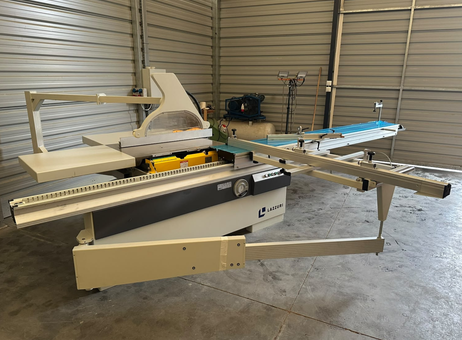

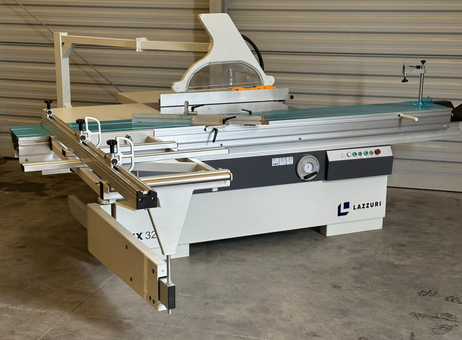

The LAZZURI FX 3200 is a sliding table panel saw with a scoring unit, designed for cutting wood and wood-based materials such as particleboard, MDF and plywood when fitted with the appropriate blade. It has a 3200 mm carriage and a maximum cutting width of 1250 mm. The saw unit tilts to 45° for angled cuts, and the maximum main blade diameter is 400 mm. The main motor power is 5.5 kW. The main blade speeds are 3000, 4000 and 5000 rpm, and the scoring unit has a separate 0.75 kW motor.

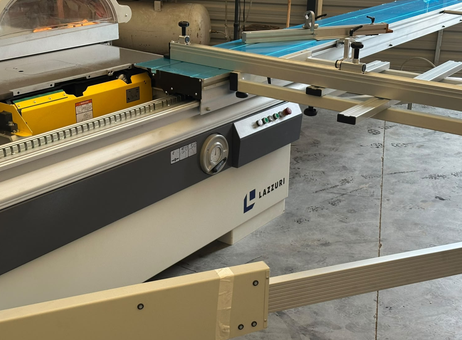

The machine is equipped with an aluminium sliding table, an adjustable crosscut fence with stops, a rip fence and an overhead transparent curved blade guard. A support frame and roller bar extend from the table assembly. Front-mounted push buttons include an emergency-stop button, and a circular adjustment dial is mounted below the rail. Cutting height and angle adjustments are manual, with a dial indicator and an electronic counter for setting the cutting width.
The machine measures 6700 × 4670 × 1480 mm for installation and weighs 815 kg. The table surface still has protective film, which is torn or ragged along part of an edge. Light dust and handling marks are visible on internal metal surfaces. The LAZZURI FX 3200 was manufactured in 2026.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The LAZZURI FX 3200 panel saw is designed for cutting wood and wood-based materials, such as particleboard, MDF and plywood, when fitted with the appropriate blade.
The machine is ideal for joinery workshops, furniture manufacturing plants and the production of made-to-measure components. The 3200 mm sliding table allows large-format materials to be processed, while the tilting saw unit enables straight and angled cuts.
The saw is equipped with a 5.5 kW main motor and a scoring unit driven by a separate 0.75 kW motor. Three main blade speeds allow the machine to be matched to the material being processed and the tool used.
TECHNICAL DATA:
– manufacturer: LAZZURI,
– model: FX 3200,
– machine type: panel saw with scoring unit,
– main motor power: 5.5 kW,
– scoring motor power: 0.75 kW,
– maximum main blade diameter: 400 mm,
– maximum scoring blade diameter: 120 mm,
– main blade speed: 3000 / 4000 / 5000 rpm,
– scoring blade speed: 8000 rpm,
– maximum cutting length: 3200 mm,
– maximum cutting width: 1250 mm,
– maximum cutting height at 90°: 125 mm,
– maximum cutting height at 45°: 85 mm,
– saw unit tilt range: 90° to 45°,
– cutting height adjustment: manual,
– cutting angle adjustment: manual,
– dust extraction port diameter: 100 mm,
– machine weight: 815 kg.
TABLE AND FENCES:

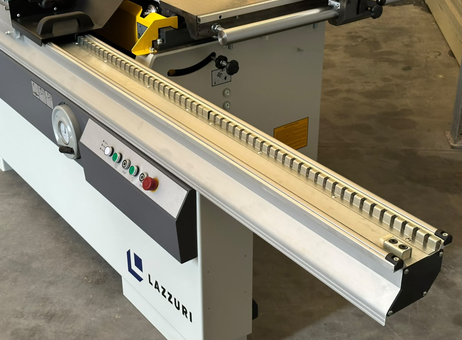

– 3200 mm-long aluminium sliding table,
– sliding table width: 418 mm,
– table guided on rods by a roller system,

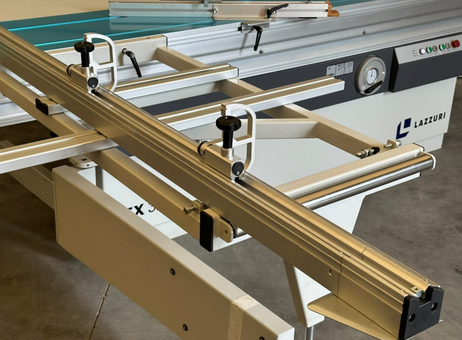

– extendable crosscut fence with a maximum length of 3200 mm,
– two sliding stops on the crosscut fence,
– magnifying lenses for easier reading of the scale at the stops,
– rip fence with a 700 mm-long aluminium ruler,
– rip fence scale up to 1250 mm,
– rip fence locked with a quick-release clamp.
EQUIPMENT AND FEATURES:

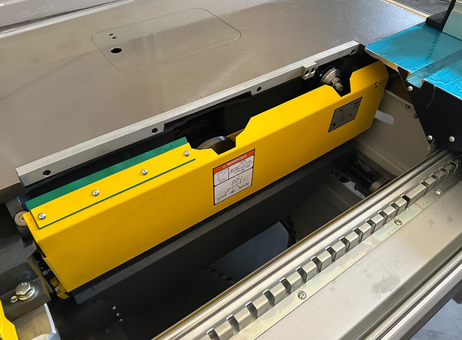

– scoring unit with a separate motor,
– saw shaft with double bearings,
– three main blade speeds,

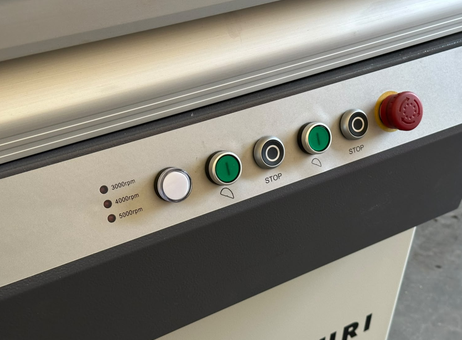

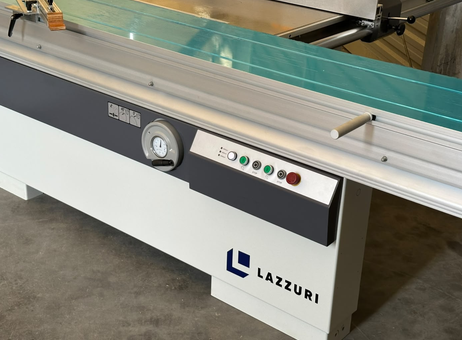

– speed changed using a rotary knob,

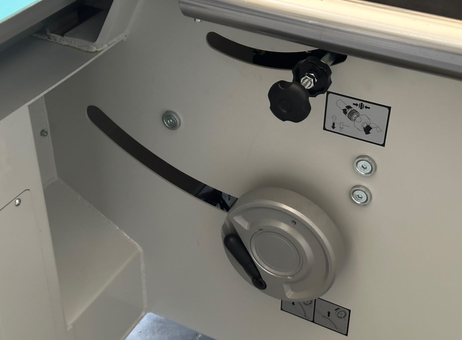

– manual cutting height and angle adjustment,

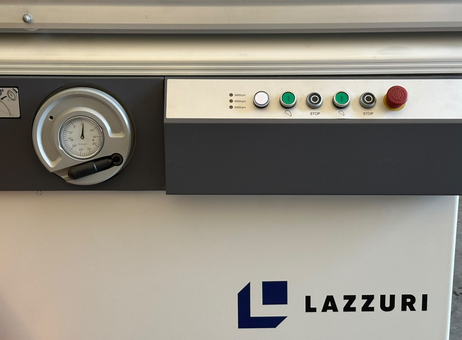

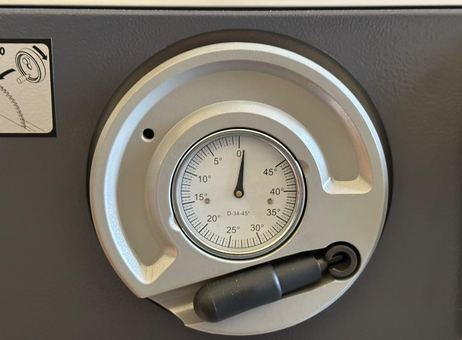

– dial indicator for adjustment,
– electronic counter for setting the cutting width.
SPACE REQUIRED FOR MACHINE INSTALLATION:
– length: 6700 mm,
– width: 4670 mm,
– height: 1480 mm.
MACHINE ADVANTAGES:
– 3200 mm cutting length,
– 1250 mm cutting width,
– bevel cutting up to 45°,
– maximum cutting height of 125 mm with a 400 mm blade,
– scoring unit with an independent motor,
– three main blade speeds,
– ability to process large panels and furniture components.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
