| Manufacturer | LAZZURI |
|---|---|
| Model | FX 1600 |
| Year | 2026 |
| Location | Poland
|

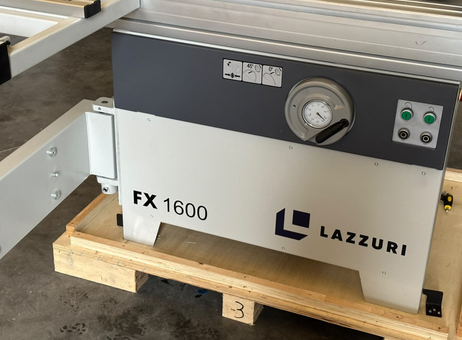

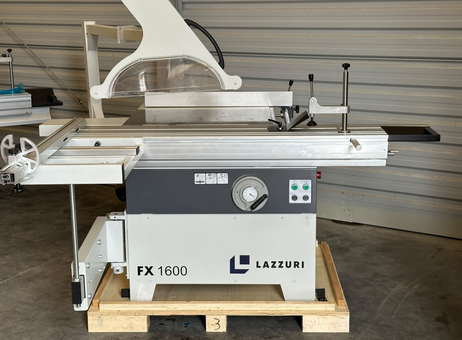

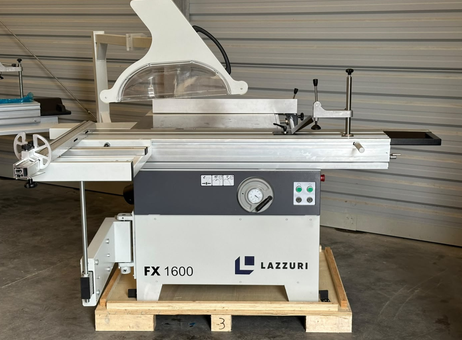

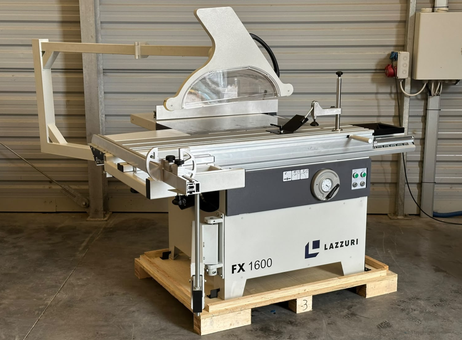

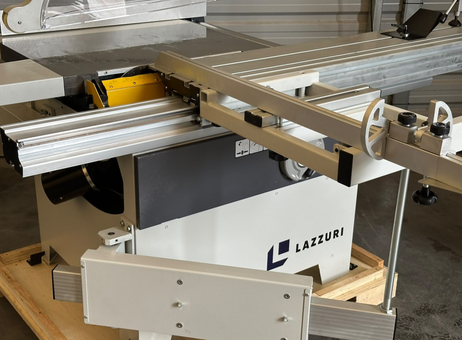

LAZZURI FX 1600 sliding table panel saw, manufactured in 2026, for cutting wood and wood-based materials such as particleboard, MDF and plywood with the appropriate blade. The machine is fitted with a scoring unit and an aluminum sliding table with fence. Visible equipment includes a clear blade guard, adjustable fence, front control panel, angle-adjustment dial and adjustment lever. The control panel has green ON and black OFF buttons. The graduated angle gauge and machine specifications indicate tilting up to 45° for angled cuts.
The machine has a 4.0 kW main motor, maximum main blade diameter of 315 mm and blade speed of 4,500 rpm. Maximum cutting width is 900 mm, and the sliding carriage length is 1,600 mm. The current specifications state a maximum cutting length of 1,600 mm, maximum cutting height of 95 mm at 90° and 67 mm at 45°, and a separate scoring blade motor rated at 0.75 kW. The sliding table is described as ball-bearing guided, with a crosscut fence and two stops, plus a rip fence and parallel guide. The work surface is cast iron and the machine frame is steel.
Overall dimensions are 3,500 × 2,150 × 1,480 mm (L × W × H), and machine weight is 460 kg. The machine appears assembled and externally intact, with no obvious major damage noted. Surface marks and smudges are visible on the table and control-panel area. Operational condition has not been specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The LAZZURI FX 1600 panel saw is a compact machine designed for cutting wood and wood-based materials. It is ideal for use in carpentry shops and furniture factories during the production of custom-sized components.
The machine allows for cutting particleboard, MDF, and plywood using the appropriate blade. The tilting saw unit enables both straight and angled cuts.

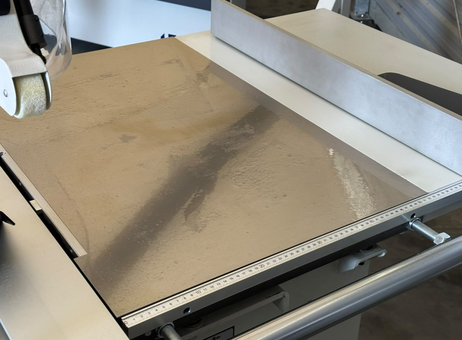

The steel frame and cast-iron work surface ensure stability during operation. The 1600 mm-long aluminum rip table, guided by ball bearings, facilitates material feeding and cutting.
TECHNICAL SPECIFICATIONS:
– manufacturer: LAZZURI,
– model: FX 1600,
– machine type: panel saw with scoring unit,
– main motor power: 4.0 kW,
– scoring blade motor power: 0.75 kW,

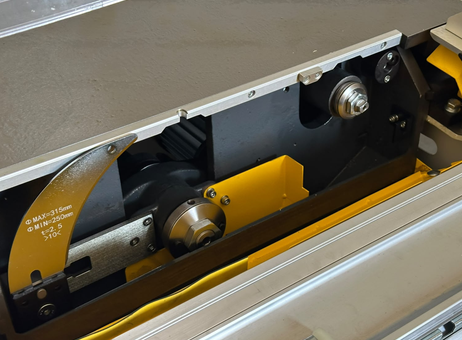

– maximum main blade diameter: 315 mm,
– maximum scoring blade diameter: 120 mm,
– main blade speed: 4,500 rpm,
– scoring blade speed: 8,000 rpm,
– maximum cutting length: 1,600 mm,
– maximum cutting width: 900 mm,
– maximum cutting height at 90°: 95 mm,
– maximum cutting height at 45°: 67 mm,

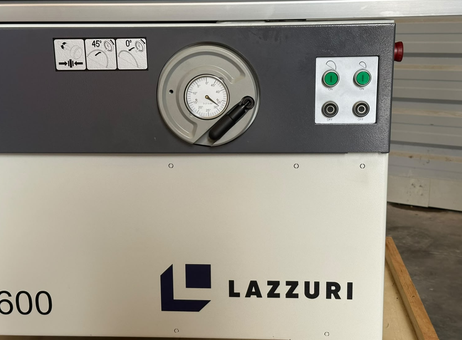

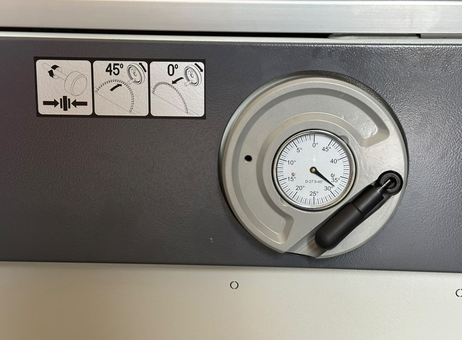

– unit tilt: from 90° to 45°,
– cutting height adjustment: manual,
– cutting angle adjustment: manual,
– exhaust port diameter: 120 mm,
– machine weight: 460 kg.
TABLE AND GUIDES:

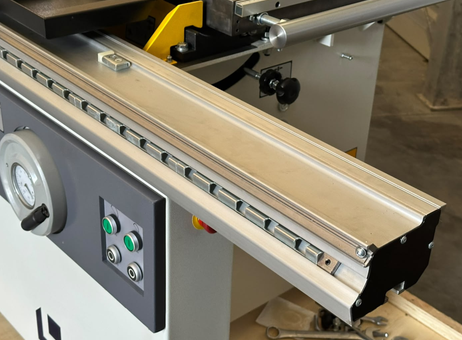

– aluminum rip table,
– rip table length: 1600 mm,
– rip table width: 360 mm,
– table guided by ball bearings,
– crosscut fence with a maximum length of 1250 mm,
– two sliding stops on the crosscut fence,
– rip fence with a 600 mm aluminum ruler,

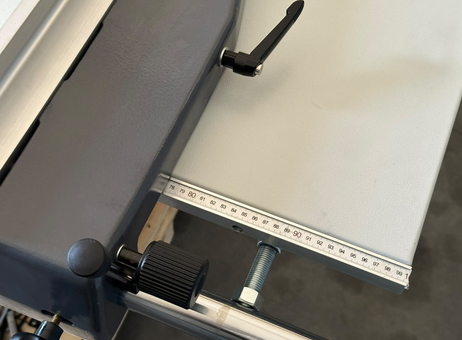

– parallel guide scale up to 900 mm,
– parallel guide locking via a quick-release clamp,
– cast iron work surface,
– steel machine frame,
– saw shaft with double bearings.
DIMENSIONS REQUIRED FOR SETTING UP THE MACHINE:
– length: 3500 mm,
– width: 2150 mm,
– height: 1480 mm.
MACHINE FEATURES:
– compact design for a woodworking shop,
– 1600 mm long rip table,

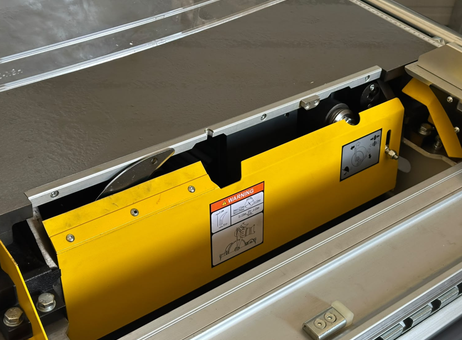

– scoring saw with a separate motor,
– ability to make angle cuts,
– maximum cutting height of 95 mm,
– crosscut fence with two stops,
– stable steel frame and cast-iron work surface.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
