| Manufacturer | LAZZURI |
|---|---|
| Model | FX 1200 |
| Year | 2026 |
| Location | Poland
|
The LAZZURI FX 1200 is a sliding table panel saw for cutting wood and wood-based materials, including particleboard, MDF and plywood when fitted with an appropriate blade. It has a 4.0 kW engine, a scoring unit and a maximum blade diameter of 315 mm. The blade speed is 4,500 rpm, and the blade tilts up to 45° for angled cuts. Maximum cutting width is 900 mm, and the carriage length is 1,200 mm.

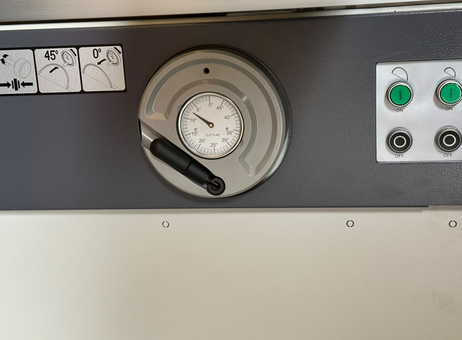

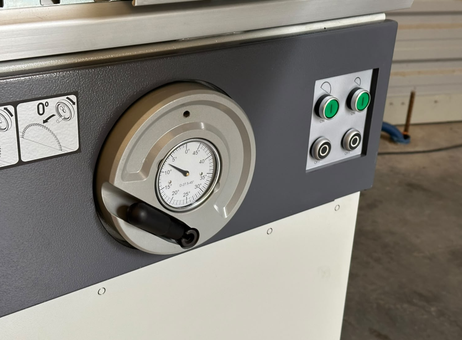

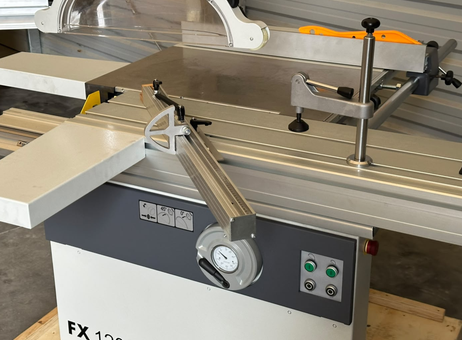

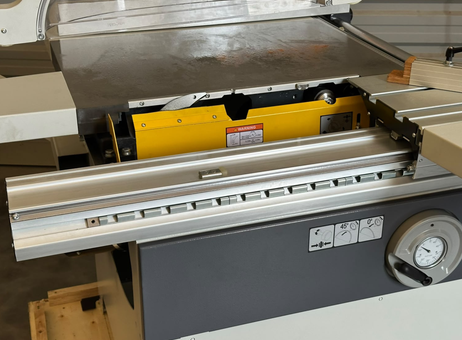

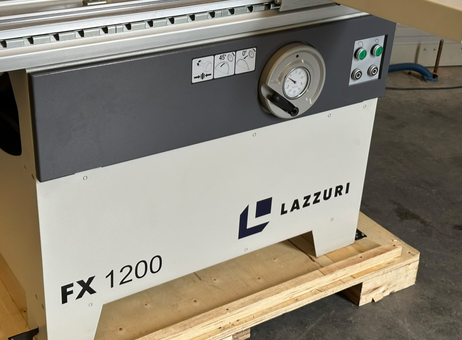

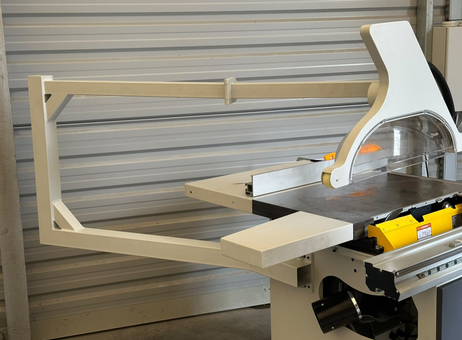

The machine includes an aluminum sliding table and fences, with adjustable clamping fixtures and a transparent overhead blade guard. Front-mounted controls and an adjustment dial are provided. The dial is graduated for angle adjustment, and the casing has ON and OFF buttons. A dust-extraction connection is also described. The machine has a steel frame and cast-iron work surface.
The listed machine dimensions are 2,700 mm long, 2,100 mm wide and 1,480 mm high; listed weight is 400 kg. The manufacturer is LAZZURI, model FX 1200, year of manufacture 2026.

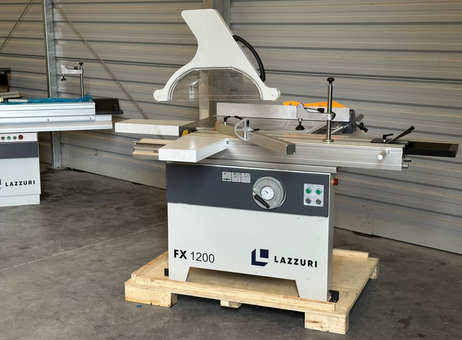

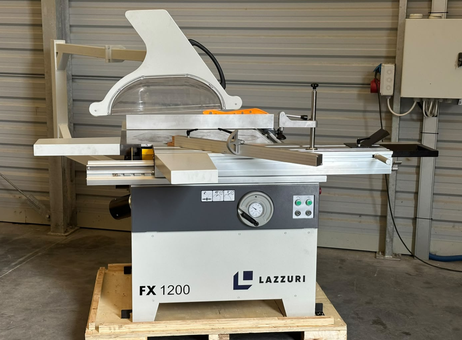

The machine is shown on a wooden pallet. Its visible casing, controls, table and guide components appear clean and generally intact, with no obvious damage visible in the views provided. This visual condition does not establish operational status.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The LAZZURI FX 1200 panel saw is a compact machine designed for cutting wood and wood-based materials. It is ideal for use in carpentry shops, furniture factories, and in the production of custom-sized components.
The saw allows for the processing of particleboard, MDF, and plywood when using the appropriate blade. The tilting saw unit enables both straight and angled cuts.

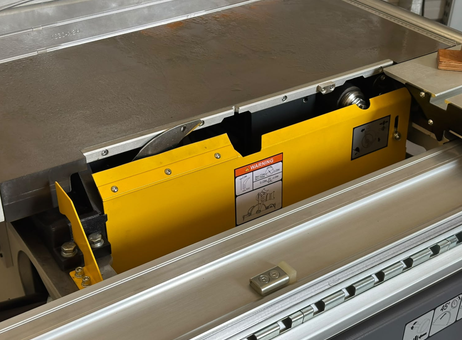

The machine is equipped with a 4 kW main motor and a scoring saw driven by a separate 0.75 kW motor. The 1200 mm long aluminum cutting table is guided by ball bearings, which facilitates material movement during cutting.
The steel frame and cast-iron work surface ensure the machine’s stability during operation.
TECHNICAL SPECIFICATIONS:
– manufacturer: LAZZURI,
– model: FX 1200,
– machine type: panel saw with scoring saw,
– main motor power: 4.0 kW,
– scoring saw motor power: 0.75 kW,
– maximum main blade diameter: 315 mm,
– maximum scoring saw blade diameter: 120 mm,
– main blade speed: 4,500 rpm,
– scoring blade speed: 8,000 rpm,
– maximum cutting length: 1,200 mm,
– maximum cutting width: 900 mm,
– maximum cutting height at 90°: 95 mm,
– maximum cutting height at 45°: 67 mm,
– tilt range of the cutting unit: from 90° to 45°,
– cutting height adjustment: manual,
– cutting angle adjustment: manual,
– exhaust port diameter: 120 mm,
– machine weight: 400 kg.
TABLE AND GUIDES:
– 1200 mm long aluminum rip table,
– rip table width: 360 mm,
– table guided by ball bearings,
– crosscut fence with a maximum length of 1200 mm,
– one sliding stop on the crosscut fence,
– magnifying glass next to the stop to facilitate reading the scale,
– parallel guide with a 600 mm aluminum ruler,
– parallel guide scale up to 900 mm,
– guide locking via a quick-release clamp,
– cast iron work surface,
– steel machine frame.
EQUIPMENT AND FEATURES:
– scoring blade driven by a separate motor,
– saw shaft with double bearings,
– ability to tilt the cutting unit for angle cuts,
– manual adjustment of cutting height and angle,

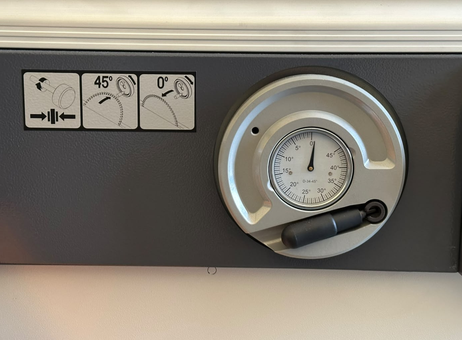

– knob with dial gauge for setting the cut,

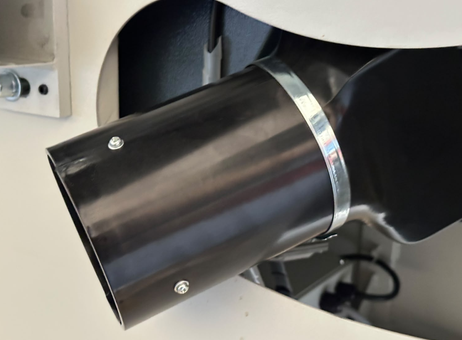

– connection port for dust extraction.
DIMENSIONS REQUIRED FOR SETTING UP THE MACHINE:
– length: 2700 mm,
– width: 2100 mm,
– height: 1480 mm.
MACHINE FEATURES:
– compact design for a woodworking shop,
– 1200 mm long rip table,
– cutting width up to 900 mm,
– scoring saw with an independent motor,
– ability to cut at angles up to 45°,
– maximum cutting height of 95 mm with a 315 mm blade,
– stable steel frame and cast-iron work surface.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
