| Manufacturer | KRAUSS MAFFEI |
|---|---|
| Model | KM4000 - 19000 MC 4000 T |
| Year | 1998 |
| Location | France
|
This listing features a KRAUSS MAFFEI KM4000 - 19000 MC injection moulding machine, manufactured in 1998. The machine offers a substantial clamping force of 4000 tons (40000 kN), suitable for large-scale injection moulding applications. It is equipped with a screw diameter of 130 mm and an injectable volume of 8100 grams, enabling the processing of significant material quantities per cycle.

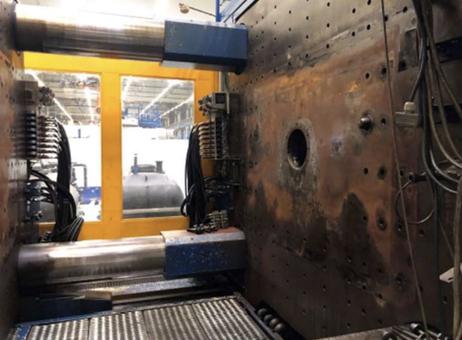

The machine's tie bar spacing measures 2240 mm horizontally and 1800 mm vertically, accommodating molds with a minimum thickness of 1100 mm and a maximum thickness of 2000 mm. The platen dimensions are 3340 mm in width and 2940 mm in length, providing a large surface area for mold mounting. The opening stroke extends to 4200 mm, allowing for the handling of large molded parts, while the ejection unit stroke is 350 mm.
This robust machine weighs approximately 255 tons, indicating its heavy-duty industrial construction. It comes with a KUKA robot, which can be used for automation tasks such as part removal or handling, enhancing productivity and operational efficiency.

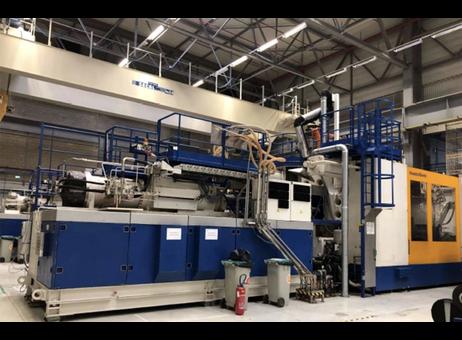

The machine is installed indoors and appears clean and well-maintained. It features blue and yellow panels and is equipped with multiple hoses and pipes attached to its top and sides, which are typical for hydraulic and cooling systems. A blue platform with guardrails is located on top of the machine, providing safe access for maintenance or operational purposes.
Overall, this KRAUSS MAFFEI KM4000 - 19000 MC is a large, industrial-grade injection moulding machine suitable for high-capacity production environments, with integrated robotic automation and substantial mold handling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
KRAUSS MAFFEI KM4000 - 19000 MC
Clamping force: 4000 T / 40000 KN
Year : 1998
Screw diameter : 130 mm
Injectable volume : 8100 gr
Distance between tie bar : 2240 x 1800 mm
Platen dimensions : 3340 x 2940 mm
Min / max mold thickness: 1100 / 2000 mm
Opening stroke: 4200 mm
Stroke of the ejection unit : 350 mm
Weight : 255 T
+ KUKA robot
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2023 |
| Offers online | 118 |
| Last activity | Oct. 30, 2026 |
KRAUSS MAFFEI KM4000 - 19000 MC
Clamping force: 4000 T / 40000 KN
Year : 1998
Screw diameter : 130 mm
Injectable volume : 8100 gr
Distance between tie bar : 2240 x 1800 mm
Platen dimensions : 3340 x 2940 mm
Min / max mold thickness: 1100 / 2000 mm
Opening stroke: 4200 mm
Stroke of the ejection unit : 350 mm
Weight : 255 T
+ KUKA robot
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a KRAUSS MAFFEI KM4000 - 19000 MC injection moulding machine, manufactured in 1998. The machine offers a substantial clamping force of 4000 tons (40000 kN), suitable for large-scale injection moulding applications. It is equipped with a screw diameter of 130 mm and an injectable volume of 8100 grams, enabling the processing of significant material quantities per cycle.
The machine's tie bar spacing measures 2240 mm horizontally and 1800 mm vertically, accommodating molds with a minimum thickness of 1100 mm and a maximum thickness of 2000 mm. The platen dimensions are 3340 mm in width and 2940 mm in length, providing a large surface area for mold mounting. The opening stroke extends to 4200 mm, allowing for the handling of large molded parts, while the ejection unit stroke is 350 mm.
This robust machine weighs approximately 255 tons, indicating its heavy-duty industrial construction. It comes with a KUKA robot, which can be used for automation tasks such as part removal or handling, enhancing productivity and operational efficiency.
The machine is installed indoors and appears clean and well-maintained. It features blue and yellow panels and is equipped with multiple hoses and pipes attached to its top and sides, which are typical for hydraulic and cooling systems. A blue platform with guardrails is located on top of the machine, providing safe access for maintenance or operational purposes.
Overall, this KRAUSS MAFFEI KM4000 - 19000 MC is a large, industrial-grade injection moulding machine suitable for high-capacity production environments, with integrated robotic automation and substantial mold handling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
