| Manufacturer | Krauss Maffei |
|---|---|
| Model | KM 950 - 8100 MX MC5 |
| Year | 2005 |
| Location | Germany
|
This Krauss Maffei KM 950 - 8100 MX MC5 injection moulding machine, manufactured in 2005, is a large industrial unit designed for high-capacity production. It features a clamping force of 950 tons (9500 kN) and a screw diameter of 105 mm, supporting a shot volume of 4546 cm³ and a shot weight of approximately 4137 grams. The injection pressure reaches up to 1778 bar, enabling efficient processing of various materials.
The machine dimensions are approximately 12.00 meters in length, 3.50 meters in width, and 3.00 meters in height, with a total weight of 67,000 kg. It has a tie bar spacing of 1400 mm horizontally and 1150 mm vertically, and an opening stroke of 1800 mm, accommodating molds with a minimum height of 600 mm and a maximum height of 1200 mm. The maximum daylight opening is 2400 mm, and the machine can handle molds weighing up to 20,300 kg.
The injection unit includes a screw with an L/D ratio of 23, a maximum injection rate of 805 cm³/s, screw speed up to 126 rpm, and a plasticising rate of 147 g/s. The electric and hydraulic equipment comprises a pump motor with a nominal capacity of 110 kW, installed heating capacity of 59 kW distributed over 7 adjustable barrel heating zones, and a reservoir capacity of 1500 liters.

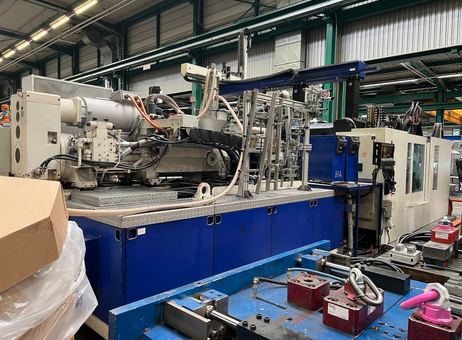

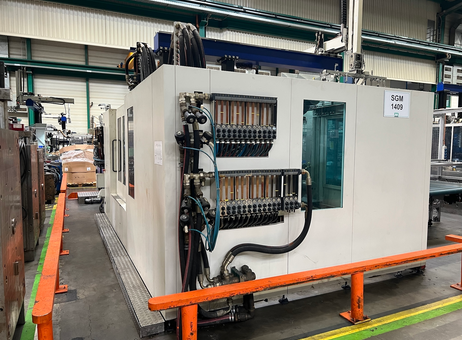

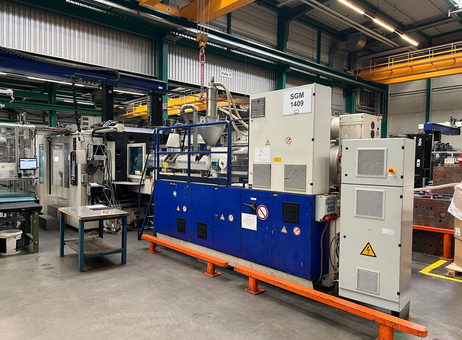

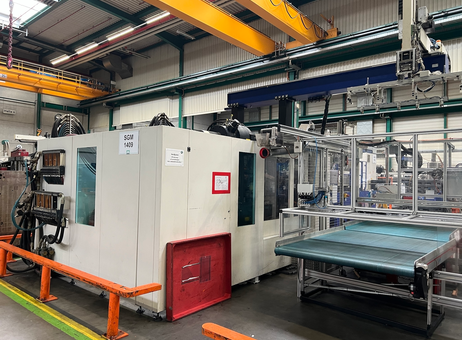

The machine is equipped with anti-vibration pads for operational stability. Visually, it presents a clean and well-maintained condition with no visible damage. The base housing is painted blue and includes multiple warning labels and ventilation grilles. The upper section is white and labeled 'SGM 1409'. A metal funnel and piping assembly for material feeding are installed on top. Hydraulic pumps, valves, and piping are visible on the sides, along with multiple hoses and cables routed around the machine. Safety orange railings surround the base, and there is a metal platform with diamond plate for operator access. Side panels show minor scratches but no structural damage, and there are no visible oil leaks.
This machine is located in Eschweiler, Germany, and is offered as-is, where-is.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Krauss Maffei
Type of Machine: KM 950 - 8100 MX
Year of Manufacture: 2007
Working Hours: 60,000 h
Control Version: MC 5
Screentext: German
Location: Eschweiler, Germany
Clamping Unit:
- Clamping Force: 950 kN
- Mould Opening Force, Max: 665 kN
- Travel Force Movable Platen Opening: 112 kN
- Travel Force Movable Platen Closing: 117 kN
- Size of Mould Platens (h x v): 1960 x 1710 mm
- Distance Between Tie Bars (h x v): 1400 x 1150 mm
- Mould Opening Stroke: 1800 mm
- Mould Height Min/Max: 600/1200 mm
- Max. Daylight: 2400 mm
Injection Unit:
- Screw Diameter: 105 mm
- Ls/D Ratio: 23
- Injection Pressure: 1778 bar
- Stroke Volume: 4546 ccm
- Shot Weight (PS): 4137 gr.
- Injection Rate: 805 ccm/s
- Screw Speed: 126 1/min
- Plasticising Rate Max: 147 g/s
- Nozzle Pressure: 166 kN
Electric and Hydraulic Equipment:
- Nominal Capacity of Pump Motor: 110 kW
- Installed Heating Capacity: 59 kW
- Adjustable Barrel Heating Zones: 7
- Reservoir Capacity: 1500 ltr.
Dimensions and Weights:
- Dimensions of the Machine: Approximately 12.00 x 3.50 x 3.00 m
- Total Machine Weight: 67,000 kg
- Max. Mould Weight: 20,300 kg
Accessories:
- Anti Vibration Pads
Additional Options:
- Clamping Force (kN): 9500
- Stroke Volume (ccm): 4546
- Manufacturer: Krauss Maffei
- Year: 2005
Technical Condition: As-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this Krauss Maffei KM 950 – 8100 MX available?
This Krauss Maffei KM 950 – 8100 MX injection molding machine is available for sale.
What is the reference number for this equipment?
This equipment is identified by the reference number 14413.
What type of factories is this injection molding machine suitable for?
This injection molding machine is suitable for small to medium-sized factories.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
