| Manufacturer | Krauss Maffei |
|---|---|
| Model | KM 650 - 6100 CM |
| Year | 2007 |
| Location | Germany
|
This Krauss Maffei KM 650 - 6100 CM injection moulding machine, manufactured in 2007, is located in Eschweiler, Germany. It features a clamping force of 6500 kN and a mould opening stroke of 1150 mm, with mould platens measuring 1520 x 1470 mm. The tie bar spacing is 1000 mm vertically and 930 mm horizontally, accommodating mould heights from 600 mm minimum to a maximum daylight of 1750 mm. The hydraulic ejector has a stroke of 250 mm and provides an ejector force of 95 kN.
The injection unit includes a 96 mm diameter screw with an L/D ratio of 23. It delivers an injection pressure up to 1795 bar and a stroke volume of 3367 cm³, with a shot weight of approximately 3064 grams (PS). The injection rate reaches 690 cm³/s, screw speed is 153 rpm, and the maximum plasticising rate is 104 g/s. Nozzle pressure is rated at 166 kN.
Electric and hydraulic equipment comprises a 90 kW pump motor and 50 kW installed heating capacity distributed over 7 adjustable barrel heating zones. The machine dimensions are approximately 9.83 m in length, 2.90 m in width, and 2.80 m in height, with a total weight of 43,170 kg.
This unit is equipped with a Krauss Maffei LR300 robot featuring servo axes for X (1200 mm), Y (1000/1000 mm), Z (3500 mm), and a C axis rotating from 0 to 90°. Additional accessories include anti-vibration pads, a conveyor, and a safety guard. The machine has several additional options such as air and pneumatic sequential valves, 12 hotrunner controllers, and hydraulic core pulls on both the movable and fixed plates.

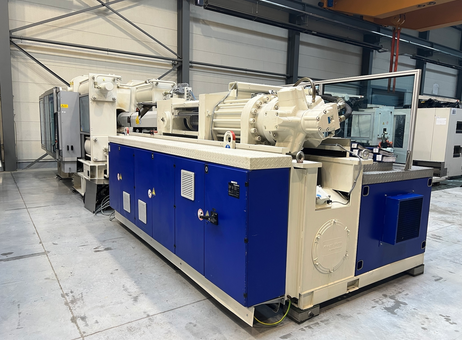

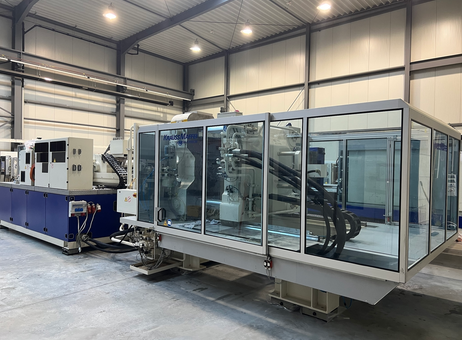

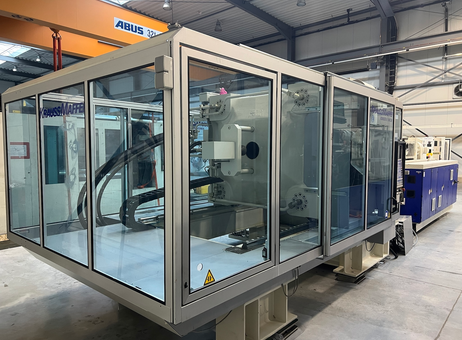

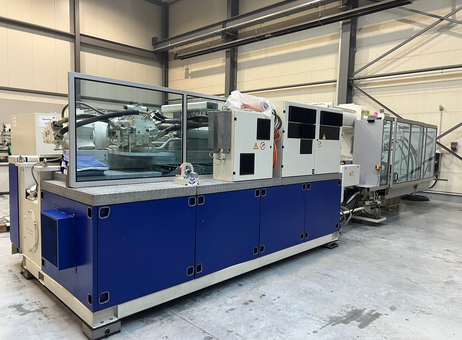

The machine is enclosed with glass safety guards and blue lower panels, with visible hydraulic hoses and electrical control boxes mounted on the top side. It appears clean and well-maintained with no visible damage. The surrounding floor area is clean and free of debris. The control system is MC 4 with a German language interface. The machine is offered in an as-is, where-is condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Krauss Maffei
Type of Machine: KM 650 - 6100 CM
Year of Manufacture: 2007
Working Hours: 70,000 h
Control Version: MC 4
Screen Text: German
Location: Eschweiler, Germany
Clamping Unit:
- Clamping Force: 6500 kN
- Mould Opening Force, Max: 346 kN
- Travel Force Movable Platen Opening: 169 kN
- Travel Force Movable Platen Closing: 144 kN
- Size of Mould Platens (h x v): 1520 x 1470 mm
- Distance Between Tie Bars (h x v): 1000 x 930 mm
- Mould Opening Stroke: 1150 mm
- Mould Height Min: 600 mm
- Max. Daylight: 1750 mm
- Hydraulic Ejector - Stroke: 250 mm
- Ejector Force: 95 kN
Injection Unit:
- Screw Diameter: 96 mm
- Ls/D Ratio: 23
- Injection Pressure: 1795 bar
- Stroke Volume: 3367 ccm
- Shot Weight (PS): 3064 gr.
- Injection Rate: 690 ccm/s
- Screw Speed: 153 1/min
- Plasticising Rate Max: 104 g/s
- Nozzle Pressure: 166 kN
Electric and Hydraulic Equipment:
- Nominal Capacity of Pump Motor: 90 kW
- Installed Heating Capacity: 50 kW
- Adjustable Barrel Heating Zones: 7
Dimensions and Weights:
- Dimensions of the Machine: Approximately 9.83 x 2.90 x 2.80 m
- Total Machine Weight: 43170 kg
Accessories:
- Anti Vibration Pads
- Krauss Maffei Robot LR300 X: 1200 mm, Servo Y: 1000/1000 mm, Servo Z: 3500 mm, Servo C: 0 - 90°
- Conveyor
- Safety Guard
Additional Options:
- 1 x Air Valve
- 6 x Pneumatic Sequential Valves
- 12 Hotrunner Controllers
- 2 x Hydraulic Core Pulls on Movable Plate
- 2 x Hydraulic Core Pulls on Fixed Plate
Technical Condition: As-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What accessories are included with this Krauss Maffei KM 650 – 6100 CM?
This Krauss Maffei KM 650 – 6100 CM injection molding machine includes a robot, conveyor, and safety guard.
Is the machine in good working condition?
This machine is in good working condition.
Is this Krauss Maffei KM 650 – 6100 CM available for immediate purchase?
This Krauss Maffei KM 650 – 6100 CM injection molding machine is available immediately.
