Contact us to receive an offer.
| Manufacturer | Krauss Maffei |
|---|---|
| Model | KM 150-520 C2 |
| Year | 2005 |
| Location | Poland
|
| Category | Injection moulding machines |
| Screw diameter | 45 mm |
| Robot interface | |
| Mould size | |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | under power |
| Last availability date | 24/05/2026 |
| Product id | P230831058 |
| Language |
Krauss Maffei KM 150-520 C2
Vstřikolis Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2 Spritzgießmaschine
Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2 Injection moulding machine
Inyectora de plástico Krauss Maffei KM 150-520 C2
Presse à injecter Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Pressa ad iniezione Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Wtryskarka Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2 Термопластавтомат
Krauss Maffei KM 150-520 C2
Krauss Maffei KM 150-520 C2
Enjeksiyon kalıplama makinesi Krauss Maffei KM 150-520 C2
|

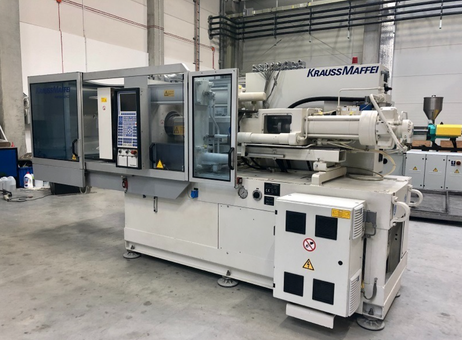

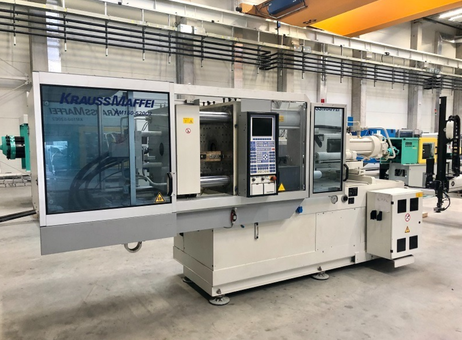

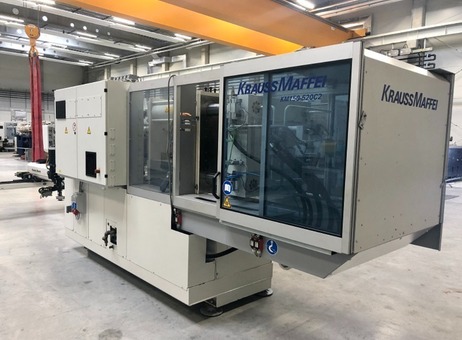

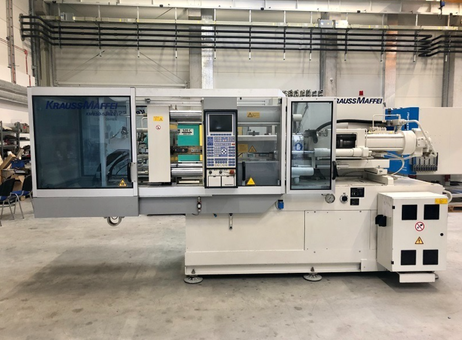

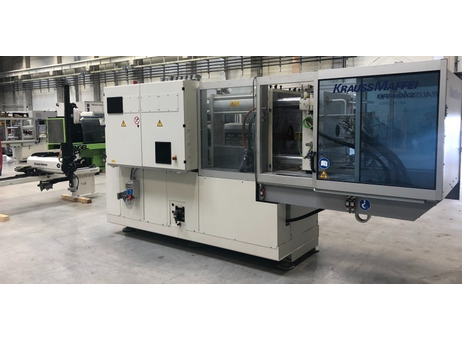

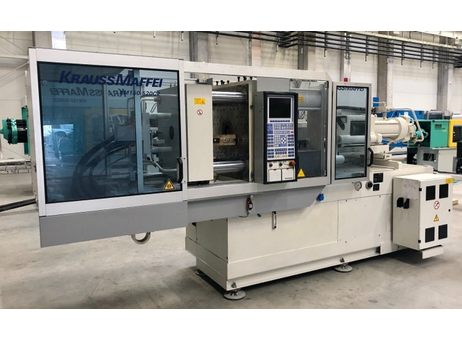

This Krauss Maffei KM 150-520 C2 injection moulding machine, manufactured in 2005, features a fully hydraulic closing system and is equipped with the MC 4 control system that includes a color TFT monitor and an integrated control panel. The machine is designed with a complete plasticizing system for thermoplastics, featuring a screw diameter of 45 mm. It includes a hydraulic auger drive with standard speed and a hydraulic blockade to prevent reverse rotation of the screw.
The machine is fitted with a two-piece SVO open nozzle (comprising a nozzle body with a screw-in nozzle) and offers adjustable stagnation pressure suitable for hard PVC processing. The ejector system has been enhanced to provide increased force—40 kN on entry and 28 kN on exit—with reduced ejector speed. Chromed columns are present in both the closing and injection units, contributing to durability.
Additional features include an oil cooler with increased capacity for inlet water temperatures up to 31°C at 4-6 bar pressure, and a hydraulic 1-fold core control on the movable mold clamping plate, adjustable via the monitor screen. The machine supports a mechanical standard joint according to Euromap 18 for handling devices on the fixed mold clamping plate.
Safety and operational convenience are ensured with safety glass doors on the front and side for access to the mould area, as well as a door protecting the ejector chamber from the service side, which can be opened for maintenance.
The control system offers advanced functionality such as continuous event logging (up to 10,000 notes), quality control packages for process monitoring, cycle time analysis, and data recording in DOS format for external analysis. It also includes a potential-free signal for dye dispensers and supports connection to an alphanumeric keyboard for additional production information input.
The machine is accompanied by a Krauss-Maffei LR 100 linear robot with a 10 kg load capacity. The robot features servo motor-driven axes with strokes of 550 mm (X), 1200 mm (Y), and 1500 mm (Z), a pneumatic foldable C-axis with 0-90° rotation torque of 30 Nm, and an A-axis with three positions (0°, 90°, 180°) and a torque of 3 Nm. It includes position measurement with an encoder, a mechanical joint according to Euromap 18, and a protective robot cover.
Overall, the machine appears clean and well-maintained with no visible damage or rust, and hydraulic cylinders are visible on the right side for the clamping mechanism. The control panel is centrally located and equipped with numerous buttons and a display screen, facilitating operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Fully hydraulic closing system, MC 4 control system with color monitor, integrated control panel and built-in disc drive.
1 complete plasticizing system for thermoplastics with a screw diameter of 45 mm
- Levels for the foundation of the Nolato machine
- Hydraulic blockade of reverse rotation of the auger
- Hydraulic auger drive with standard speed
- SVO open nozzle in 2-piece design (nozzle body with screw-in nozzle).
- A device for sorting good and defective parts.
Pneumatic pendulum. Pendulum speed approx. 3 sec. Free-standing device under the machine's discharge shaft. Including electrical standard connector and software (Pos. 42.42).
- Single pneumatic valve on the movable mold clamping plate for the blowing function (1 piece of 3/2 separating valve with 1 magnetic coil). Control to choose between road/time or time/time. Possibility to manually set the flow using 1 throttle on the valve outlet. Connection size ¼”
- Door protecting the ejector chamber from the service side, with the possibility of opening
- Mechanical standard joint according to Euromap 18 for handling device on fixed mold clamping plate (with console for KM max. 300 C)
- Ejector force increased on entry/exit from 22 kN/10 kN to 40.0 kN/28.0 kN with reduced ejector speed.
- Control of the rear position of the hydraulic ejector and the ejector plate in the mold
- Chromed columns of the closing unit and the injection unit
- Oil cooler with increased capacity for inlet water temperature up to 31°C at 4 - 6 bar inlet water pressure at the connection points
- Adjustable stagnation pressure for hard PVC processing
- Hydraulic 1-fold control of the core on the movable mold clamping plate on the opposite side of the service. Connection size ½” internal thread (speed and pressure adjustable on the monitor screen). Plug layout according to Euromap 13 (Han 16 A)
- 4-fold rotameter without thermometers and without solenoid valves
- Hydraulic pump motor with class F insulation
- Potential-free signal for HAN 3 A dye dispenser.
- The start of the pressure depends on the hydraulic pressure
- Additional software for continuous logging of events (Logbuch) and viewing them by scrolling the screen backwards (max. 10,000 notes) in the range of: - changes of machine setting data; - alarm reports and acknowledgments; - enabling or disabling the control with date, time and current cycle, and registering a password (standard) or a magnetic card (Pos. 89.6711); can be entered using a printer (Pos. 89.972 or Pos. 89.9721). Additional possibility of statistical analysis on the monitor with graphical presentation of alarms in semi-automatic and automatic operation of the machine.
- Quality control package:
process control (cycles - actual values) by specifying the tolerance range, actual value indicator, actual value memory - with the possibility of printing
- Cycle time analysis package:
an indicator of individual times and total cycle time for the last current cycle and any selected cycle. Graphical presentation of successive cycles or individual times running in parallel.
- Recording cycle parameters in DOS format:
The actual values of each cycle are stored on a separate diskette in DOS. Data analysis on an external PC in a standard program, e.g. EXCEL
- Standard connector for connecting an alphanumeric keyboard AT type MF2 for free text input of additional production information on 3 sides of the screen.
- TFT color monitor
- Set of set and actual value curves for the following parameters: injection speed, injection pressure, pressure, stagnation pressure and number of screw revolutions
- PV-regulation of the injection speed, clamping pressure, stagnation pressure and start of clamping pressure depending on the hydraulic pressure

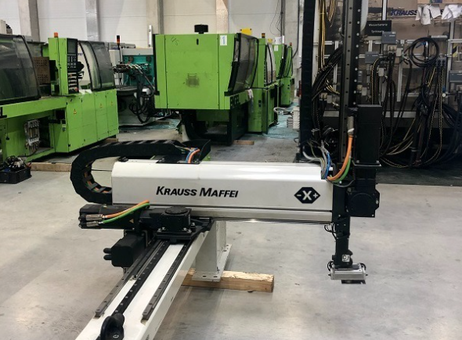

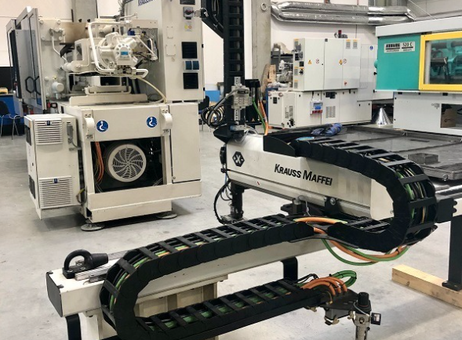

Equipment of the LR 100 robot:
Robot LR 100 MANUFACTURER: KRAUSS - MAFFEI
- Krauss-Maffei LR 100 linear robot
load capacity 10 kg
- (gripper + drives + parts)
the side of storage opposite to the service
axles:
stroke from form (X axis)
- 550 mm, servo motor
vertical stroke (Y axis) with engine brake
- 1200 mm, servo motor
transverse stroke (Z axis)
- 1500 mm, servo motor
foldable axle (C axis for putting down)
- 0-90°, pneumatic
- torque Md = 30 Nm
Position measurement with an encoder
- Mechanical joint according to EUROMAP 18
- Robot cover
- AC pneumatic axis consisting of:
- C axis (rotation around the Z axis between the Y axis and the gripper) rotation 0 and 90 °, torque Md = 30 Nm
- with A axis of rotation (rotation around the X axis between the Y axis and the gripper) 3 positions: 0 - 90° and 180° torque Md = 3 Nm.
Delivery instead of pneumatic C axis, ZE R31.2501.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
