| Manufacturer | KIHEUNG |
|---|---|
| Model | POINT U 6 |
| Year | 2012 |
| Location | Germany
|

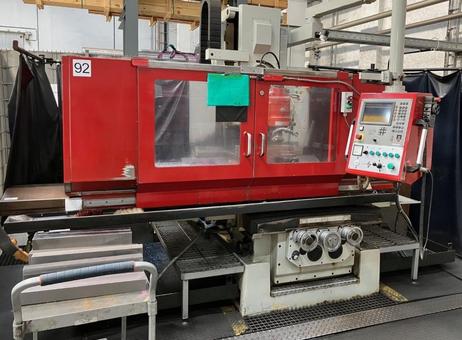

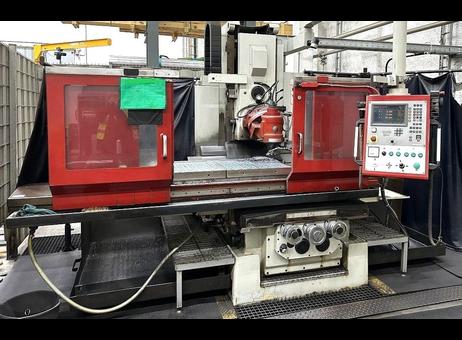

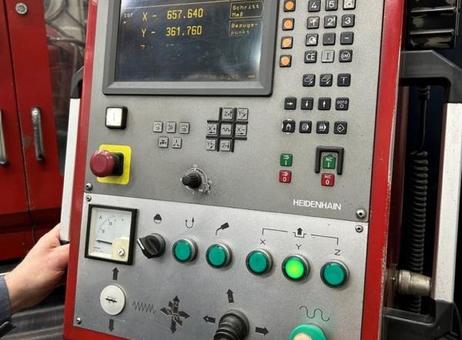

This KIHEUNG POINT U 6 is a universal bed type milling machine designed for versatile machining tasks. Manufactured in 2012 in South Korea, it features an NC control system with a HEIDENHAIN TNC 124 controller, providing precise and reliable operation. The machine offers substantial travel distances with 1600 mm on the X-axis, 710 mm on the Y-axis, and 700 mm on the Z-axis, accommodating a wide range of workpieces.
The milling machine is equipped with a robust spindle featuring an SK 50 DIN 69871 taper, capable of stepless speed adjustment from 40 to 1600 revolutions per minute. The spindle drive delivers 11 kW of power, ensuring effective cutting performance. Feed rates are 2000 mm/min for the X and Y axes and 1000 mm/min for the Z axis, with rapid traverse speeds reaching up to 5000 mm/min on X and Y, and 2500 mm/min on Z. A 3 kW feed motor supports these movements.
The worktable measures 2200 by 550 mm, supporting a maximum load of 3000 kg, allowing for heavy and large components to be machined. The distances from the table to the vertical and horizontal spindle range from 50 to 750 mm and 60 to 760 mm respectively, providing flexibility for various machining setups.
The machine requires a total power input of 15 kW and weighs approximately 8 tons. Its overall dimensions are 3.50 meters in length, 2.82 meters in width, and 2.70 meters in height.

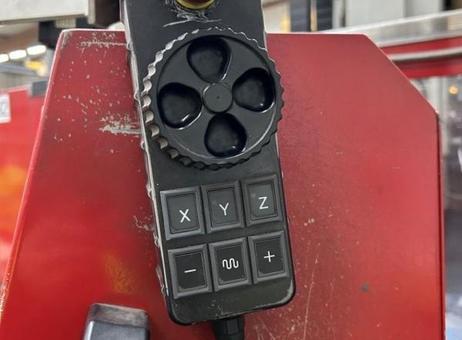

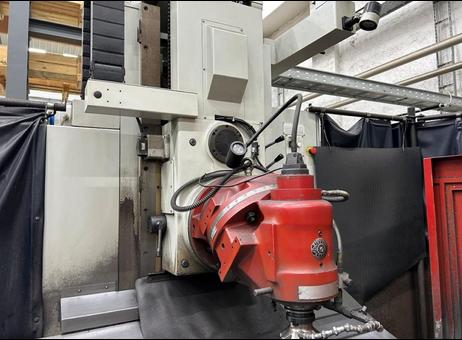

Included accessories are a universal milling head with hydraulic tool clamping, an electronic handwheel for manual control, a table housing, and a coolant system to support machining operations. The machine is available for immediate delivery, quoted ex works and loaded on truck.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category: Bed Type Milling Machine - Universal
Make: KIHEUNG
Model: POINT U 6
Year of Manufacture: 2012
Control Type: NC
Current Location: D - 77815 Bühl
Origin: South Korea
Delivery Terms: Immediately
Quotation: Ex works, loaded on truck
X-Travel: 1600 mm
Y-Travel: 710 mm
Z-Travel: 700 mm
Control: HEIDENHAIN, TNC 124
Table Surface Area: 2200 x 550 mm
Spindle Taper: SK 50 DIN 69871
Spindle Turning Speed: Stepless 40 - 1600 U/min
Spindle Drive: 11 kW
Feed X/Y/Z-axis: 2000/2000/1000 mm/min
Rapid Traverse X/Y/Z Axis: 5000/5000/2500 mm/min
Feed Motor: 3 kW
Distance Table / Vertical Spindle: 50 - 750 mm
Distance Table / Horizontal Spindle: 60 - 760 mm
Table Load Max: 3000 kg
Total Power Requirement: 15 kW
Weight of the Machine: Approximately 8 t
Dimensions of Machine (L x W x H): 3.50 x 2.82 x 2.70 m
Accessories: Universal milling head with hydraulic tool clamping, electronic handwheel, table housing, coolant
