| Manufacturer | INNSE |
|---|---|
| Model | TP 160 |
| Year | 1980 |
| Location | Romania
|
| Category | Lathes - Heavy-duty lathes (above 3001 mm) |
| Max. turning diameter | 450 mm |
| Center height | 1200 mm |
| Faceplate diameter | 1750 mm |
| Max workpiece weight | 125000 kg |
| Spindle motor power | 149.14243 kW |
| Overhauled | yes |
| Year of overhauling | 2004 |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 23/04/2026 |
| Product id | P210325152 |
| Language |
INNSE TP 160
Velký soustruh INNSE TP 160
INNSE TP 160
INNSE TP 160 Schwerdrehbank
INNSE TP 160
INNSE TP 160 heavy duty lathe
Torno de gran capacidad INNSE TP 160
Tour grande capacité INNSE TP 160
INNSE TP 160
INNSE TP 160
Tornio pesante INNSE TP 160
INNSE TP 160
INNSE TP 160
Tokarka ciężka INNSE TP 160
INNSE TP 160
INNSE TP 160
INNSE TP 160 Тяжёлый токарный станок
INNSE TP 160
INNSE TP 160
Ağır Tip Torna INNSE TP 160
|
The INNSE TP 160 is a heavy-duty lathe manufactured in 1980 and overhauled in 2004, designed for machining large and heavy workpieces. It features a center height of 1200 mm and a maximum turning diameter over the carriages of 1600 mm, with a maximum diameter over the bed cavers of 2000 mm. The lathe supports a maximum turning diameter of 450 mm with the tool retracted. It allows a maximum turning length of 31,400 mm when steady rests are removed, and 26,200 mm for simultaneous operation of two parts as separate lathes. The machine can handle very heavy workpieces, with a maximum weight fixed between centers at maximum speed rated at 125,000 kg. Additionally, the lathe can support a maximum load of 160,000 kg when the workpiece is fixed between 90° or 75° centers at a speed of 10 m/min.
The lathe is equipped with left and right faceplates measuring 1750 mm and 1600 mm in diameter, respectively. It has clamping axial forces of 100,000 daN on the left and 55,000 daN on the right, with clamping forces of 35,000 daN and 25,000 daN on the left and right clamping jaws correspondingly. The main spindle motor delivers a power of approximately 149 kW. Speed ranges for the faceplate are from 0.8 to 160 rpm, providing versatility for different machining requirements.
Feed rates include longitudinal feeds ranging from 0.2 to 6000 mm/min and transversal feeds from 0.1 to 1500 mm/min, powered by motors with 6 daNm torque each. The quills on the left and right front bearings have diameters of 400 mm and 180 mm, respectively, with a travel length of 150 mm. The tailstock quills have a positioning feed rate of 36.3 mm/min and a rapid feed rate of 2400 mm/min.

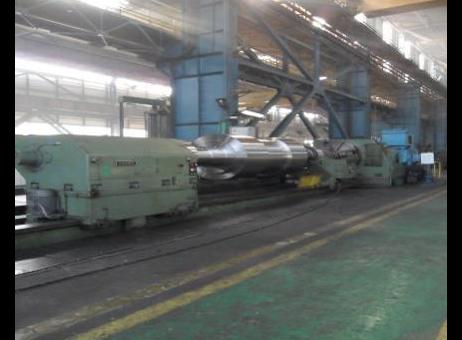

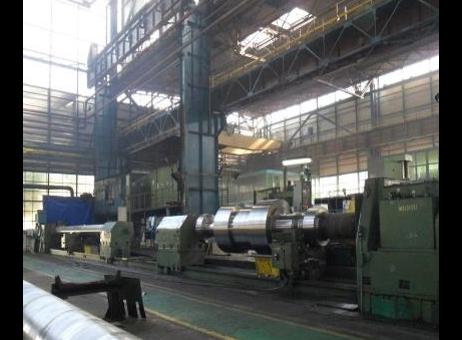

Steady rests are included, capable of supporting loads up to 80,000 kg, with a bearing diameter range of 200 to 1200 mm. The machine's components visible include the headstock, tailstock, steady rests, and a large cylindrical metal workpiece mounted on the lathe. The lathe is situated in an industrial workshop environment with adequate lighting and appears to be in good condition with no visible damage or defects. No safety guards or covers on lathe components are visible in the available images.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Max. turning length with removed steady rests 31400 mm
Max. turning length for 2 parts simultaneous operated (as 2 apart lathers) 26200 mm
Centers height 1200 mm
Max. turning diameter over carriages 1600 mm
Max. diameter over bed cavers 2000 mm
Min. turning diameter with tool gets out 450 mm 0
Max. turning depth on max turning diameter 450 mm

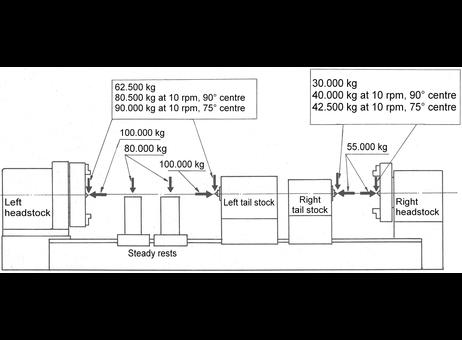

Max. wight of work piece fixed between centers at max. speed 125000 Kg
Max. load of work piece fixed between 90°centers at max. speed of 10m/min 160000 Kg
Max. load of work piece fixed between 75°centers at max. speed of 10m/min 160000 Kg
Clamping axial left / right force s 100000 / 55000 daN
Centers angles 90°
Face plate left / right diameter 1750/1600 mm
Clamping force of a one left /right clamping jaw 35000 / 25000 daN
Main spindles diameters of left / right front bearings 530 / 400 mm
Face plate speed ranges 0.8-10-160 rpm
Power of main drive motors 200 HP
Transversal travels 800 mm
Longitudinal feeds ranges 0.2-6000 mm/min
Transversal feeds ranges 0.1-1500 mm/min
Torque of longitudinal feeds motors 6 daNm
Torque of transversal feeds motors 6 daNm
Quills diameters of left / right front bearings 400 / 180 mm
Quills travels 150 mm
Positioning feed of tail stock quills 36.3 mm/min
Rapid feed of tail stocks 2400 mm/min
Max. load on a steady rest 80000 Kg
Positioning feed 1000 mm/min
Range of steady rest bearing diameters with blocks 200-1200 mm
Range of steady rest bearing diameters with blocks 200-1200 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
