| Manufacturer | IMA>IMA ILAPAK |
|---|---|
| Model | WA 14/50 + VT2000 OF P |
| Year | 2023 |
| Location | France
|
Complete Ilapak bagging line comprising a Vegatronic VT2000 OF P vertical form-fill-seal machine, a Weightronic WA 14/50 14-head multihead weigher, product-feeding conveyors and a stainless steel gantry platform. The line is specified for cold and humid environments, including deep-frozen products. Maximum line dimensions are 4.81 × 3.00 × 7.35 m (H), according to the technical data sheet. The equipment is dismantled.
LINE COMPONENTS
• PA.MA Service PTNMSX belt conveyor
• PA.MA Service PTNMSX-Z cleated Z-type lift
• Ilapak Weightronic WA 14/50 combination weigher
• Ilapak Vegatronic VT2000 OF P vertical bagging machine
• FQS stainless steel platform
VEGATRONIC VT2000 OF P
The open-frame VFFS machine has a tube and forming head, vertical longitudinal weld and horizontal cross-welding jaws with an integrated cutting blade. Film transport is belt-driven and bag length is encoder-controlled. Maximum mechanical output is 70 sachets per minute. Film reel specifications are up to 600 mm in diameter, 400 mm wide, with a 76 mm chuck and maximum weight of 50 kg. The current forming size is Ø 170 mm and can be changed on request. Features include a rear-loading VEROL reel holder with pneumatic expandable shaft, film-tensioning idler roller and touchscreen HMI.
WEIGHTRONIC WA 14/50
The weigher has 14 heads, each with a pre-dosing bucket and weighing bucket, and 15 load cells. It includes a central dispensing cone, electromagnetic radial vibration channels, stepper-motor-operated baskets, timing hopper and four removable discharge chutes. Maximum speed is 90 strokes per minute. Bucket capacity is 5.0 l; maximum discharge volume is 12.5 l, with a discharge weight range of 100–3,000 g. Functions include weighing, piece counting, mixing across up to four sectors and multiple discharges per bag. An Ilapak touchscreen provides recipes, statistics and alarm history. An AXIS F1035-E camera is specified above the weigher, with real-time HMI display.
CONVEYORS AND PLATFORM
The PTNMSX conveyor has an AISI 304 stainless steel frame, modular PP belt, 533 mm effective width and 2,405 mm effective length. The PTNMSX-Z lift has an AISI 304 stainless steel structure, cleated modular PP belt, 403 mm effective width and 5,300 mm effective length. Both have hinged side panels; the Z-lift also includes a stainless steel loading hopper and inspection hatches. Conveyor controls are connected to the bagging machine control cabinet. The FQS gantry is a bolted, dismantlable stainless steel structure with weigher support, staircase and handrails.
Documentation listed includes EC declarations, incorporation declarations, user manuals, risk assessments, electrical and pneumatic diagrams, illustrated parts lists, recommended spare-parts lists and food-contact certificates.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Ilapak Italia S.p.A. (IMA Group)
Year: 2023
Type: Complete bagging line
LINE-UP
1. Belt conveyor – PA.MA Service PTNMSX
2. Z-type lift with cleats – PA.MA Service PTNMSX-Z
3. 14-head combination weigher – Ilapak Weightronic WA 14/50
4. Vertical form-fill-seal (VFFS) bagging machine – Ilapak Vegatronic VT2000 OF P
5. Stainless steel platform (gantry) – FQS
Maximum line dimensions: 4.81 x 3.00 x 7.35 m (H) (technical data sheet)
Designed for use in cold/damp environments (deep-frozen products)

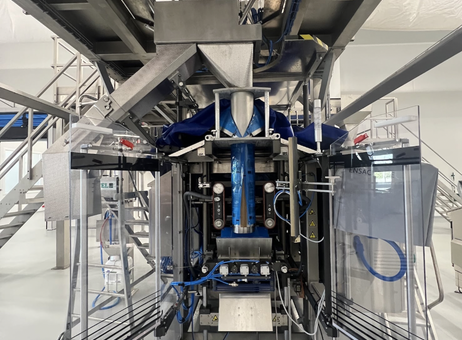

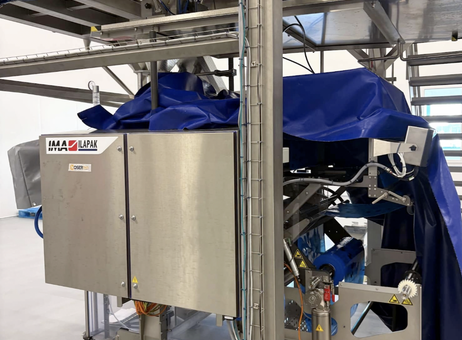

1. VEGATRONIC VT2000 OF P VERTICAL BAGGING MACHINE
Vertical form-fill-seal (VFFS) bagging machine, Open Frame version
Forming tube and neck
Vertical longitudinal seal
Horizontal cross-seal jaws with integrated cutting blade
Film drive via belts
Bag length controlled by encoder
Maximum mechanical output: 70 bags/min

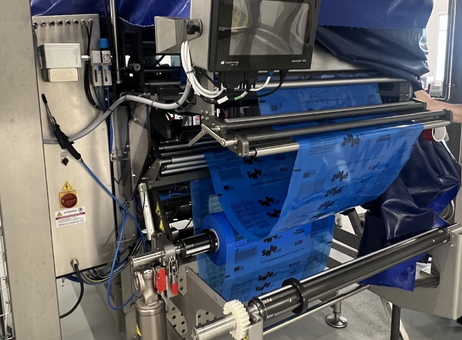

Film reel:
Max. Ø: 600 mm
Width: 400 mm
Core: Ø 76 mm
Max. weight: 50 kg
Current format: Ø 170 mm (can be changed on request)

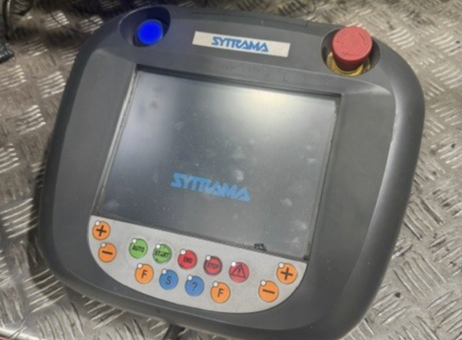

HMI touch-screen control

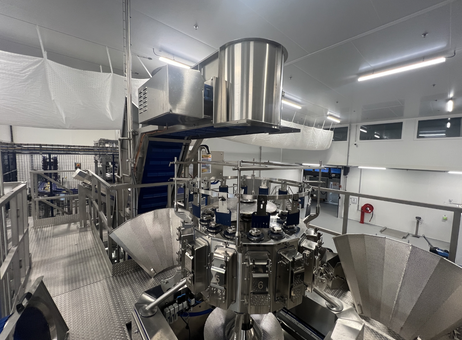

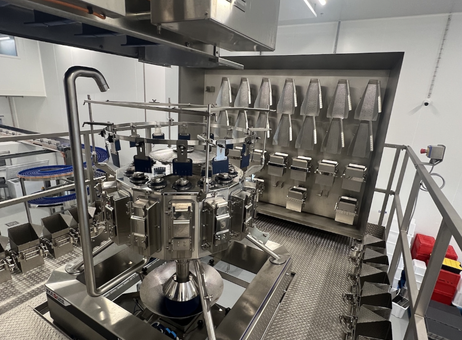

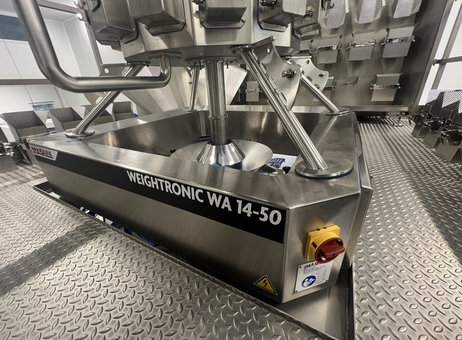

2. WEIGHTRONIC WA 14/50 MULTIHEAD WEIGHING MACHINE
14 heads – 1 pre-dosing basket + 1 weighing basket per head
15 load cells: 14 weighing baskets + 1 beneath the central cone
Central distribution cone
Electromagnetic radial vibrating channels, which can be dismantled without tools
Ouverture des paniers par moteurs pas à pas – cames paramétrables
Timing hopper
Unloading via 4 removable chutes into the outlet hopper
Maximum speed: 90 strokes per minute
Bucket capacity: 5.0 l
Volume maximal de vidange (par déversement) : 12,5 l
Plage de poids de vidange (par déversement) : 100 g - 3 000 g
Maximum length of parts: 150 mm
Modes: weighing or piece counting, mixing of up to 4 batches, multiple discharge per bag
Automatic tare and calibration
Ilapak HMI touchscreen
Control of up to 4 external feeders
Contact parts that can be removed without tools and are numbered per head
AXIS F1035-E surveillance camera above the weighing machine – real-time display on the HMI (augmented reality mode)

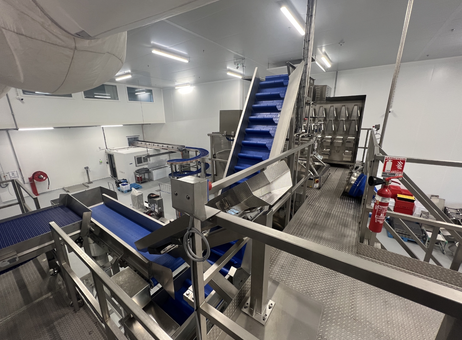

3. PRODUCT POWER SUPPLY (PA.MA SERVICE)
PTNMSX belt conveyor:
- AISI 304 stainless steel frame
- Modular PP belt
- Effective width: 533 mm
- Effective length: 2405 mm
- Loading/unloading height: 3080 mm
- Speed: 22 m/min
- SEW SA37 gear motor – 0.37 kW – IP65
- Power supply: 400 V three-phase – 50 Hz
- Wash ramp with 10 nozzles

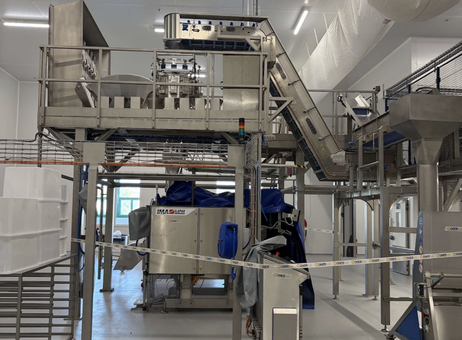

PTNMSX-Z Z-lift:
- AISI 304 stainless steel structure
- Modular PP belt with cleats – pitch 203.2 mm
- Effective width: 403 mm
- Effective length: 5,300 mm
- Loading height: 2,660 mm
- Unloading height: 5,215 mm
- Speed: 24 m/min
- SEW SA47 gear motor – 0.75 kW
- Power supply: 400 V three-phase – 50 Hz
- Stainless steel loading hopper
- Inspection hatches
Conveyor control via the bagging machine control cabinet

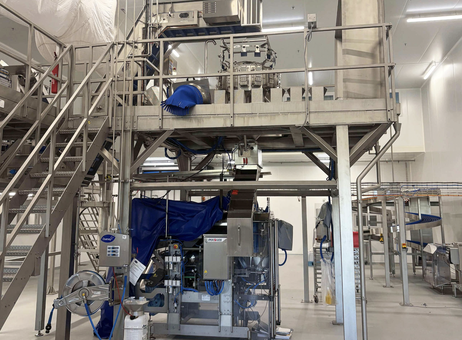

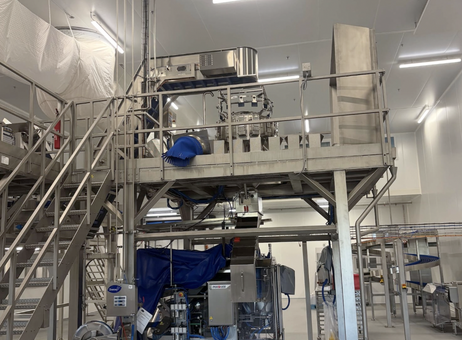

4. FQS GANTRY PLATFORM
Stainless steel tubular structure designed for washing
Weighing machine support above the bagging machine
Staircase with stringers and steps made of folded sheet metal
Stainless steel handrails
Bolted assembly (dismantlable)
DOCUMENTATION AVAILABLE
EC Declarations (production lines and machinery)
Declarations of incorporation for conveyors
User manuals (FR / IT)
Risk assessments (FR)
Electrical and pneumatic diagrams
Illustrated parts lists (IPB)
Recommended spare parts lists (RSPL)
Food contact certificates
Equipment dismantled and stored on Osertech's premises.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
