Contact us to receive an offer.
| Manufacturer | Hwacheon |
|---|---|
| Model | Vesta 1000 12K |
| Year | 2016 |
| Location | Czech Republic
|
This listing features a Hwacheon Vesta 1000 12K vertical machining center, manufactured in 2016. It is designed for high productivity machining tasks and comes equipped with a FANUC Series Oi-MF control system. The machine has a robust spindle motor with a power output of 11 kW, capable of reaching a maximum spindle speed of 12,000 rpm, suitable for a wide range of machining operations.
The working table measures 1100 mm in length and 502 mm in width, providing ample space for various workpieces. The machine offers axis travels of 1000 mm on the X-axis, 550 mm on the Y-axis, and 500 mm on the Z-axis, allowing for versatile machining capabilities. Rapid traverse rates are 36 m/min on both the X and Y axes and 30 m/min on the Z axis, enhancing operational efficiency.
Additional specifications include a BT40 spindle taper and tooling capacity that supports tools up to 300 mm in length, with maximum tool diameter options of 80 mm or 150 mm and a maximum tool weight of 8 kg. The machine dimensions are 3335 mm in length, 2200 mm in width, and 2670 mm in height, with a total weight of 6500 kg.

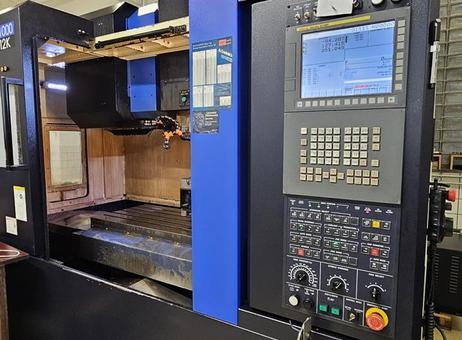

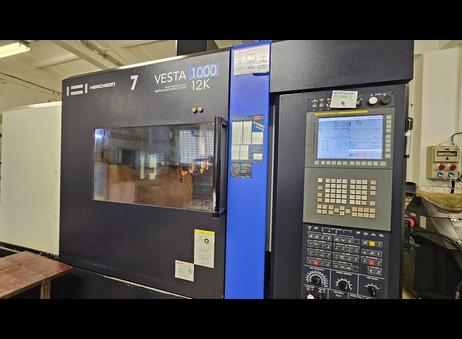

The equipment package includes a tool probe, a workpiece probe, and a 4th axis TSUDAKOMA, which expands the machine's versatility for complex machining tasks. The machine features a front door with a window that allows visibility into the machining area. The control panel is located on the right side and includes a screen along with numerous buttons and knobs for operational control.
This vertical machining center is suitable for precise and efficient machining operations in various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Characteristic:
Control system: FANUC Series Oi-MF

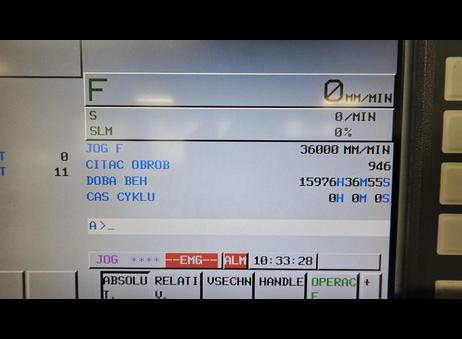

Hours on: 15976 h
Length of the working table: 1100 mm
Width of the working table: 502 mm
Power of the spindle drive: 11 kW
Maximum rotary speed of the spindle: 12000 1/min
X-Axis travels: 1000 mm
Y-Axis travels: 550 mm
Z-Axis travels: 500 mm
Taper: BT40
Max. tool lenght: 300 mm
Max. tool weight: 8 kg
Max. tool diameter: 80/150 mm
Rapid traverse X/Y/Z: 36/36/30 m/min
Machine height: 2670 mm
Machine length: 3335 mm
Machine width: 2200 mm
Machine weight: 6500 kg
Equipment:
Tool probe
Workpiece probe
4th axis TSUDAKOMA
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 1144 |
| Last activity | Oct. 27, 2026 |
Characteristic:
Control system: FANUC Series Oi-MF
Hours on: 15976 h
Length of the working table: 1100 mm
Width of the working table: 502 mm
Power of the spindle drive: 11 kW
Maximum rotary speed of the spindle: 12000 1/min
X-Axis travels: 1000 mm
Y-Axis travels: 550 mm
Z-Axis travels: 500 mm
Taper: BT40
Max. tool lenght: 300 mm
Max. tool weight: 8 kg
Max. tool diameter: 80/150 mm
Rapid traverse X/Y/Z: 36/36/30 m/min
Machine height: 2670 mm
Machine length: 3335 mm
Machine width: 2200 mm
Machine weight: 6500 kg
Equipment:
Tool probe
Workpiece probe
4th axis TSUDAKOMA
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a Hwacheon Vesta 1000 12K vertical machining center, manufactured in 2016. It is designed for high productivity machining tasks and comes equipped with a FANUC Series Oi-MF control system. The machine has a robust spindle motor with a power output of 11 kW, capable of reaching a maximum spindle speed of 12,000 rpm, suitable for a wide range of machining operations.
The working table measures 1100 mm in length and 502 mm in width, providing ample space for various workpieces. The machine offers axis travels of 1000 mm on the X-axis, 550 mm on the Y-axis, and 500 mm on the Z-axis, allowing for versatile machining capabilities. Rapid traverse rates are 36 m/min on both the X and Y axes and 30 m/min on the Z axis, enhancing operational efficiency.
Additional specifications include a BT40 spindle taper and tooling capacity that supports tools up to 300 mm in length, with maximum tool diameter options of 80 mm or 150 mm and a maximum tool weight of 8 kg. The machine dimensions are 3335 mm in length, 2200 mm in width, and 2670 mm in height, with a total weight of 6500 kg.
The equipment package includes a tool probe, a workpiece probe, and a 4th axis TSUDAKOMA, which expands the machine's versatility for complex machining tasks. The machine features a front door with a window that allows visibility into the machining area. The control panel is located on the right side and includes a screen along with numerous buttons and knobs for operational control.
This vertical machining center is suitable for precise and efficient machining operations in various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 1144 |
| Last activity | Oct. 27, 2026 |
