Contact us to receive an offer.
| Manufacturer | Hermle |
|---|---|
| Model | UWF 1200 RT |
| Year | 1993 |
| Location | Germany
|

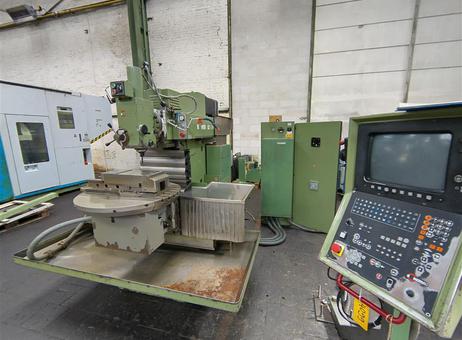

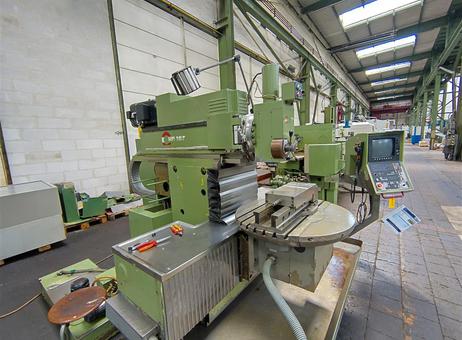

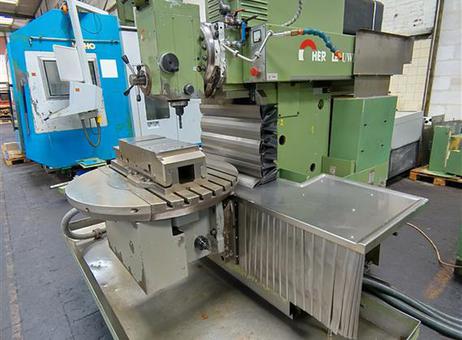

The Hermle UWF 1200 RT is a CNC universal milling machine designed for tool room applications, featuring a rotary table for versatile machining operations. Manufactured in 1993, this machine has robust dimensions of approximately 3500 mm in length, 4400 mm in width, and 2100 mm in height, with a total weight of around 4000 kg. It offers substantial travel ranges with an X-axis travel of 850 mm, Y-axis travel of 6360 mm, and Z-axis travel of 500 mm, allowing for the machining of large and complex parts.

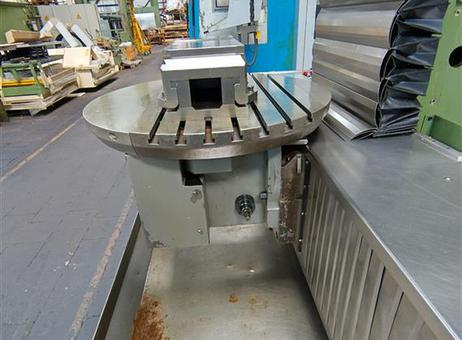

The spindle motor delivers 12 kW of power, with a maximum spindle speed of 4200 rpm, suitable for a wide range of milling tasks. The spindle taper is ISO 40. The machine is equipped with a Heidenhain TNC 407 CNC control system supporting 4-axis operation, including an NC rotary table for enhanced flexibility. The rotary table measures 800 mm in diameter and features T-slots, with a vise mounted for workpiece securing.
Additional features include a coolant device to assist in machining processes and a horizontal/vertical head configuration to accommodate different milling orientations. The machine is equipped with an electronic hand panel for manual control inputs. A work area lamp is attached to provide illumination during operations.

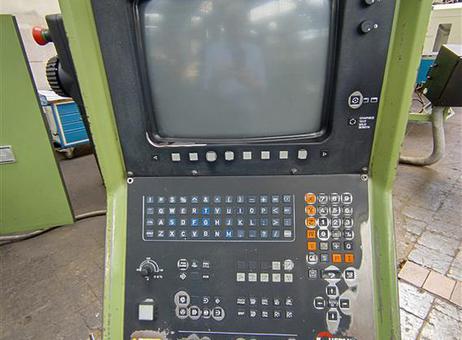

The machine shows signs of use with visible surface wear and some rust, particularly on the base tray beneath the machine and around the rotary table area. The control panel, featuring a CRT screen and multiple buttons and knobs, also exhibits signs of paint wear and usage marks. Despite these cosmetic conditions, the machine appears intact and complete with its main components and accessories present, including the control cabinet behind the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Hermle UWF 1200 RT
Tool Room Milling Machine (rotary table)
Total power requirement 15 kW
Weight of the machine ca. 4 t
Dimensions of the machine ca. 3.5 × 4.4 × 2.1 m
X-travel 850 mm
Y-travel 6360 mm
Z-travel 500 mm
Spindle turning speed range 25 – 4200 rpm
Feed range 1 – 10000 mm/min
Table dimensions 800 mm
Spindle motor 12 kW
Spindle taper: ISO 40
Machine with Heidenhain TNC 407 CNC control for 4 axis
NC rotary table
coolant device
horizontal/vertical head
vize, electronic hand panel
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 48 |
| Last activity | Oct. 26, 2026 |
Hermle UWF 1200 RT
Tool Room Milling Machine (rotary table)
Total power requirement 15 kW
Weight of the machine ca. 4 t
Dimensions of the machine ca. 3.5 × 4.4 × 2.1 m
X-travel 850 mm
Y-travel 6360 mm
Z-travel 500 mm
Spindle turning speed range 25 – 4200 rpm
Feed range 1 – 10000 mm/min
Table dimensions 800 mm
Spindle motor 12 kW
Spindle taper: ISO 40
Machine with Heidenhain TNC 407 CNC control for 4 axis
NC rotary table
coolant device
horizontal/vertical head
vize, electronic hand panel
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Hermle UWF 1200 RT is a CNC universal milling machine designed for tool room applications, featuring a rotary table for versatile machining operations. Manufactured in 1993, this machine has robust dimensions of approximately 3500 mm in length, 4400 mm in width, and 2100 mm in height, with a total weight of around 4000 kg. It offers substantial travel ranges with an X-axis travel of 850 mm, Y-axis travel of 6360 mm, and Z-axis travel of 500 mm, allowing for the machining of large and complex parts.
The spindle motor delivers 12 kW of power, with a maximum spindle speed of 4200 rpm, suitable for a wide range of milling tasks. The spindle taper is ISO 40. The machine is equipped with a Heidenhain TNC 407 CNC control system supporting 4-axis operation, including an NC rotary table for enhanced flexibility. The rotary table measures 800 mm in diameter and features T-slots, with a vise mounted for workpiece securing.
Additional features include a coolant device to assist in machining processes and a horizontal/vertical head configuration to accommodate different milling orientations. The machine is equipped with an electronic hand panel for manual control inputs. A work area lamp is attached to provide illumination during operations.
The machine shows signs of use with visible surface wear and some rust, particularly on the base tray beneath the machine and around the rotary table area. The control panel, featuring a CRT screen and multiple buttons and knobs, also exhibits signs of paint wear and usage marks. Despite these cosmetic conditions, the machine appears intact and complete with its main components and accessories present, including the control cabinet behind the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 48 |
| Last activity | Oct. 26, 2026 |
Looking for a used Hermle UWF universal milling machine?
The Hermle UWF series includes high-precision universal milling machines designed for toolmaking, maintenance workshops, and precision engineering. Known for their rigid construction, swivelling milling heads, and smooth mechanical movements, UWF machines are valued for their accuracy and long-term reliability.
At Exapro, we connect buyers with verified sellers offering Hermle UWF machines suitable for versatile manual and semi-automatic milling operations across various metalworking applications.
Browse all Hermle UWF universal milling machines available on Exapro today.
