Contact us to receive an offer.
| Manufacturer | HAAS |
|---|---|
| Model | VF-2SS |
| Year | 2012 |
| Location | Switzerland
|

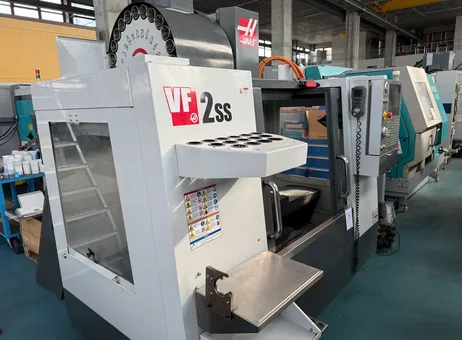

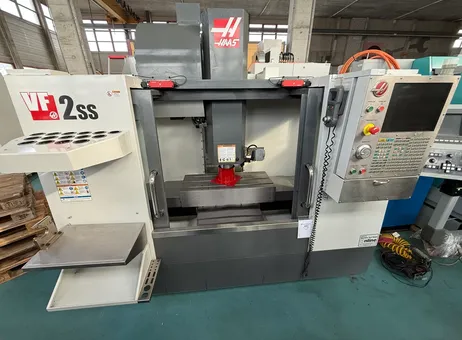

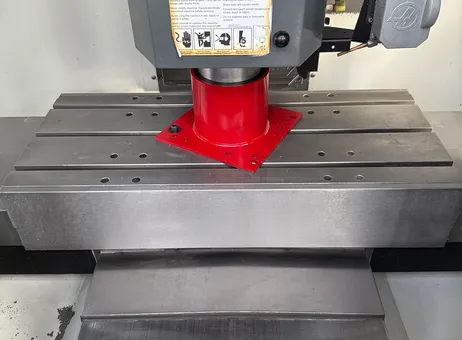

Vertical machining center with a 914 × 356 mm table and three T-slots, each 16 mm wide. The table has a stated maximum load of 680 kg. Axis travel is 762 mm longitudinally (X), 406 mm transversely (Y), and 508 mm vertically (Z).
The machine has a BT 40 spindle nose and a stepless, direct-drive spindle with speeds up to 12,000 rpm. The spindle motor is rated at 22.4 kW. The listed work feed rate is 21.2 m/min, with rapid traverse at 35.6 m/min.
The tool changer holds 24 tools. Maximum tool diameter is 64 mm, or 127 mm with adjacent pockets free. Maximum tool length is 279 mm and maximum tool weight is 5.4 kg. The stated tool-change time is 1.8 seconds, with an average chip-to-chip time of 2.4 seconds.
Additional listed equipment includes a fourth-axis (B-axis) table, a set of toolholders, a set of collets, a 208-litre coolant system, and a REGO-FIX 3D measuring feeler gauge. The machine requires a 5.5-bar air connection and is specified for 400 V, three-phase, 50 Hz power.
Approximate machine weight is 3,800 kg. Overall dimensions are 3,150 mm long, 2,600 mm wide, and 2,700 mm high. Feed range is not specified in the supplied details.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Table length 914 mm
Table width 356 mm
Number of T-channels 3
T-channel width 16 mm
Longitudinal travel (X-axis) 762 mm
Transversal travel (y-axis) 406 mm
Vertical travel (z axis) 508 mm
Table load max. 680 kg
Tool changer:
Number of tools 24
Tool diameter max. 64 mm
Diameter with free adjacent pockets 127 mm
Tool lenght 279 mm
Max. tool-weight 5.4 kg
Time of tool changing 1.8 s
Average chip-to-chip time 2.4 s
Spindle nose: BT 40
Spindle speeds:
stepless
up to 12000 t/min
Direct drive
Work feed rate 21.2 m/min
Feed range mm/min
Rapid traverse: 35.6 m/min
Air connect 5.5 bar
Voltage 50 Hz 3x 400 Volt
Spindle motor 22.4 kW
Machine's weight about 3800 kg
Overall dimensions machine:
Length 3150 mm
Width 2600 mm
Height 2700 mm
Various accessories:
Table 4th axis (B-axis)

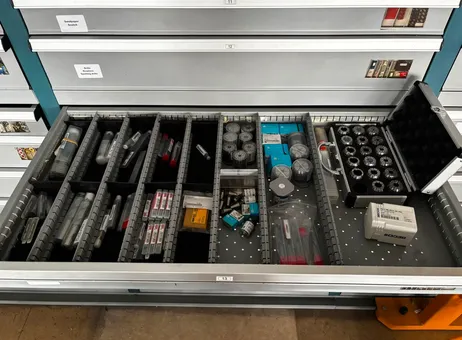

Set of toolholders
Set of collets
Coolant system 208 l
3D measuring feeler gauge REGO-FIX
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 256 |
| Last activity | Oct. 28, 2026 |
Table length 914 mm
Table width 356 mm
Number of T-channels 3
T-channel width 16 mm
Longitudinal travel (X-axis) 762 mm
Transversal travel (y-axis) 406 mm
Vertical travel (z axis) 508 mm
Table load max. 680 kg
Tool changer:
Number of tools 24
Tool diameter max. 64 mm
Diameter with free adjacent pockets 127 mm
Tool lenght 279 mm
Max. tool-weight 5.4 kg
Time of tool changing 1.8 s
Average chip-to-chip time 2.4 s
Spindle nose: BT 40
Spindle speeds:
stepless
up to 12000 t/min
Direct drive
Work feed rate 21.2 m/min
Feed range mm/min
Rapid traverse: 35.6 m/min
Air connect 5.5 bar
Voltage 50 Hz 3x 400 Volt
Spindle motor 22.4 kW
Machine's weight about 3800 kg
Overall dimensions machine:
Length 3150 mm
Width 2600 mm
Height 2700 mm
Various accessories:
Table 4th axis (B-axis)
Set of toolholders
Set of collets
Coolant system 208 l
3D measuring feeler gauge REGO-FIX
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Vertical machining center with a 914 × 356 mm table and three T-slots, each 16 mm wide. The table has a stated maximum load of 680 kg. Axis travel is 762 mm longitudinally (X), 406 mm transversely (Y), and 508 mm vertically (Z).
The machine has a BT 40 spindle nose and a stepless, direct-drive spindle with speeds up to 12,000 rpm. The spindle motor is rated at 22.4 kW. The listed work feed rate is 21.2 m/min, with rapid traverse at 35.6 m/min.
The tool changer holds 24 tools. Maximum tool diameter is 64 mm, or 127 mm with adjacent pockets free. Maximum tool length is 279 mm and maximum tool weight is 5.4 kg. The stated tool-change time is 1.8 seconds, with an average chip-to-chip time of 2.4 seconds.
Additional listed equipment includes a fourth-axis (B-axis) table, a set of toolholders, a set of collets, a 208-litre coolant system, and a REGO-FIX 3D measuring feeler gauge. The machine requires a 5.5-bar air connection and is specified for 400 V, three-phase, 50 Hz power.
Approximate machine weight is 3,800 kg. Overall dimensions are 3,150 mm long, 2,600 mm wide, and 2,700 mm high. Feed range is not specified in the supplied details.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
