Contact us to receive an offer.
| Manufacturer | Haas |
|---|---|
| Model | VF-2SS |
| Year | 2007 |
| Location | Hungary
|

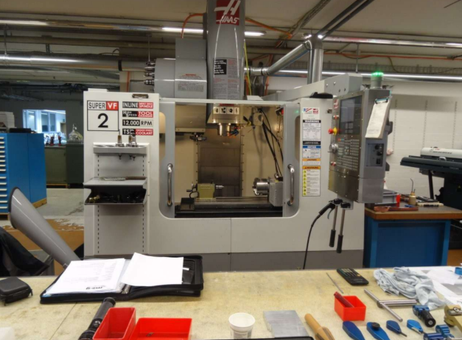

This Haas VF-2SS machining center, manufactured in 2007, is a high-performance CNC machine designed for precision milling tasks. It features a robust working envelope with X, Y, and Z axes travel distances of 762 mm, 408 mm, and 508 mm respectively. The machine is equipped with a working table measuring 456 x 914 mm, which includes three T-slots and can support a maximum load of 1360 kg.
The milling spindle has an ISO 40 taper and operates at speeds up to 12,000 RPM, driven by a 14.5 kW motor. The spindle incorporates an inline direct drive system, enhancing its performance and precision. Feed rates for the X, Y, and Z axes reach a maximum of 16.5 m/min during operation, with rapid feed rates up to 25.4 m/min.

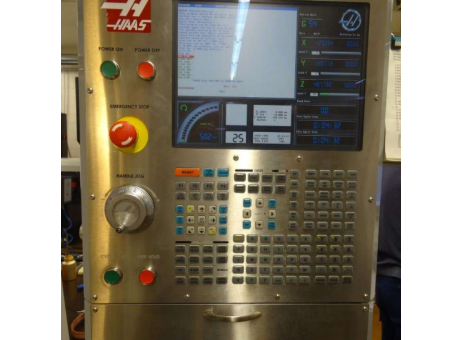

A 24-station automatic lateral tool changer is integrated, allowing efficient tool management. The CNC control system is provided by Haas Automation, with the control panel mounted on the right side of the machine, featuring a display screen and keypad.

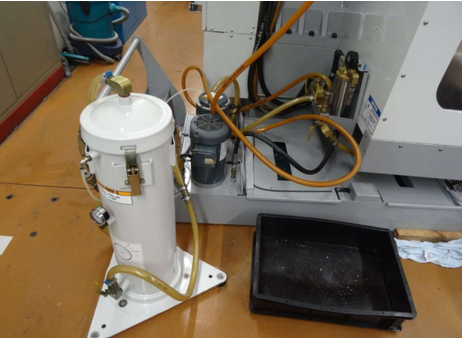

The machine includes a coolant system equipped with programmable coolant nozzles, a chip conveyor, high-pressure through-spindle coolant (TSC), and an external filtering unit. The coolant filtration system and pump unit are located next to the machine base.

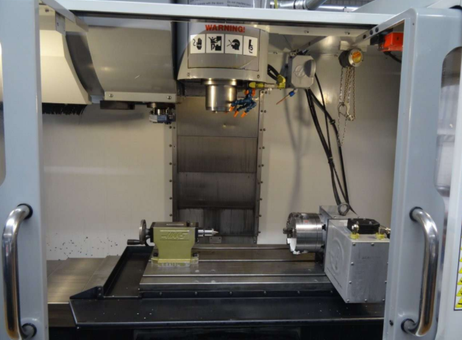

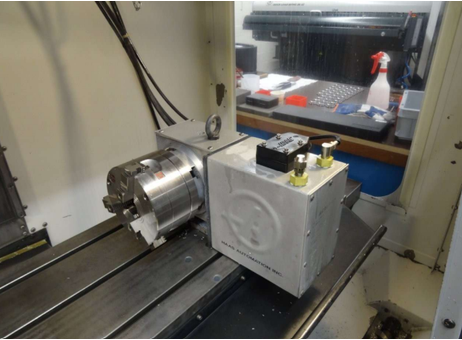

Additional accessories include a Wireless Intuitive Probing System (WIPS-R) and a Renishaw measuring probe, enhancing setup and measurement capabilities. The machine also has a rotary table with a chuck and tailstock installed, supported by a Haas Automation rotary axis drive unit, expanding its machining versatility.

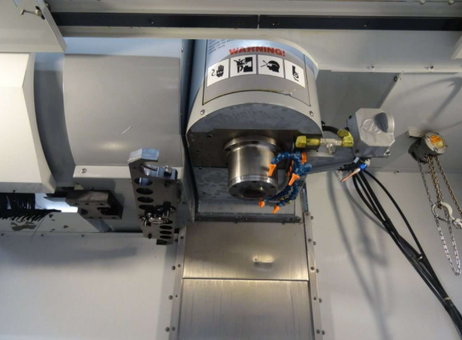

The machine and work area appear clean and well-maintained, with no visible chips or debris. Warning labels are present on the spindle head and electrical cabinet, indicating safety precautions. A tool holder rack is attached to the left side of the spindle area for convenient tool storage.
Please note, the delivery does not include the 3-jaw chuck and tailstock shown in the images. This machine is suitable for complex milling operations requiring high precision and reliability.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Technical data axis
X-Axis 762 mm
Y-Axis 408 mm
Z-Axis 508 mm
Working table
Table Size 456 x 914 mm
Number of T-Slots 3
Max. table load 1360 kgs.
Milling spindle
Spindle Taper ISO 40
Spindle Speed 12000 RPM
Spindle Drive 14.5 kW
Feed rates
Working feed X-Y-Z axis max. 16.5 m/min
Rapid feed X-Y-Z axis 25.4 m/min
Tool Changer 24 station automatic Tool changer, lateral
Control CNC Control Haas Automation
4th. Axis Haas Dividing Head HRT-160. Delivery without
3-jaw chuck and without Tailstock shown on pictures
Coolant Equipment Coolant system with chip conveyor
Programable coolant nose
High pressure TSC
External Filtering unit
Accessories
WIPS-R
Wireless Intuitive
Probing System
Renishaw Measuring Probe
Device for storing HRT-160
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machining center is this Haas VF-2SS?
This Haas VF-2SS is a 4-axis vertical machining center.
When was this machining center manufactured?
This machining center was manufactured in 2007.
What type of machining center is this Haas VF-2SS?
This Haas VF-2SS is a vertical machining center with 4 axes.
When was the machine manufactured?
The machine was manufactured in 2007.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 6 |
| Last activity | Oct. 27, 2026 |
Technical data axis
X-Axis 762 mm
Y-Axis 408 mm
Z-Axis 508 mm
Working table
Table Size 456 x 914 mm
Number of T-Slots 3
Max. table load 1360 kgs.
Milling spindle
Spindle Taper ISO 40
Spindle Speed 12000 RPM
Spindle Drive 14.5 kW
Feed rates
Working feed X-Y-Z axis max. 16.5 m/min
Rapid feed X-Y-Z axis 25.4 m/min
Tool Changer 24 station automatic Tool changer, lateral
Control CNC Control Haas Automation
4th. Axis Haas Dividing Head HRT-160. Delivery without
3-jaw chuck and without Tailstock shown on pictures
Coolant Equipment Coolant system with chip conveyor
Programable coolant nose
High pressure TSC
External Filtering unit
Accessories
WIPS-R
Wireless Intuitive
Probing System
Renishaw Measuring Probe
Device for storing HRT-160
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machining center is this Haas VF-2SS?
This Haas VF-2SS is a 4-axis vertical machining center.
When was this machining center manufactured?
This machining center was manufactured in 2007.
What type of machining center is this Haas VF-2SS?
This Haas VF-2SS is a vertical machining center with 4 axes.
When was the machine manufactured?
The machine was manufactured in 2007.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This Haas VF-2SS machining center, manufactured in 2007, is a high-performance CNC machine designed for precision milling tasks. It features a robust working envelope with X, Y, and Z axes travel distances of 762 mm, 408 mm, and 508 mm respectively. The machine is equipped with a working table measuring 456 x 914 mm, which includes three T-slots and can support a maximum load of 1360 kg.
The milling spindle has an ISO 40 taper and operates at speeds up to 12,000 RPM, driven by a 14.5 kW motor. The spindle incorporates an inline direct drive system, enhancing its performance and precision. Feed rates for the X, Y, and Z axes reach a maximum of 16.5 m/min during operation, with rapid feed rates up to 25.4 m/min.
A 24-station automatic lateral tool changer is integrated, allowing efficient tool management. The CNC control system is provided by Haas Automation, with the control panel mounted on the right side of the machine, featuring a display screen and keypad.
The machine includes a coolant system equipped with programmable coolant nozzles, a chip conveyor, high-pressure through-spindle coolant (TSC), and an external filtering unit. The coolant filtration system and pump unit are located next to the machine base.
Additional accessories include a Wireless Intuitive Probing System (WIPS-R) and a Renishaw measuring probe, enhancing setup and measurement capabilities. The machine also has a rotary table with a chuck and tailstock installed, supported by a Haas Automation rotary axis drive unit, expanding its machining versatility.
The machine and work area appear clean and well-maintained, with no visible chips or debris. Warning labels are present on the spindle head and electrical cabinet, indicating safety precautions. A tool holder rack is attached to the left side of the spindle area for convenient tool storage.
Please note, the delivery does not include the 3-jaw chuck and tailstock shown in the images. This machine is suitable for complex milling operations requiring high precision and reliability.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 6 |
| Last activity | Oct. 27, 2026 |
