Contact us to receive an offer.
| Manufacturer | GRAZIANO |
|---|---|
| Model | SAG 24 CNC |
| Year | |
| Location | Italy
|
| Category | Lathes - Parallel lathes (0 - 3000 mm) |
| Length between centers | 1500 mm |
| Center height | 525 mm |
| Ø above the bed | 1050 mm |
| Spindle nose | |
| Spindle bore | 114 mm |
| Turning speed | 1500 rpm |
| Spindle motor power | 26.84564 kW |
| Overhauled | no |
| Tailstock | no |
| Steady | no |
| Weight | 11000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 22/10/2026 |
| Product id | P240801324 |
| Language |
струг GRAZIANO SAG 24 CNC
Soustruh GRAZIANO SAG 24 CNC
GRAZIANO SAG 24 CNC drejebænk
GRAZIANO SAG 24 CNC Drehmaschine
τόρνος GRAZIANO SAG 24 CNC
GRAZIANO SAG 24 CNC lathe
Torno GRAZIANO SAG 24 CNC
Tour GRAZIANO SAG 24 CNC
tokarilica GRAZIANO SAG 24 CNC
GRAZIANO SAG 24 CNC esztergapad
Tornio GRAZIANO SAG 24 CNC
tekinimo staklės GRAZIANO SAG 24 CNC
GRAZIANO SAG 24 CNC draaibank
Tokarka GRAZIANO SAG 24 CNC
torno GRAZIANO SAG 24 CNC
strung GRAZIANO SAG 24 CNC
GRAZIANO SAG 24 CNC Токарный станок
strug GRAZIANO SAG 24 CNC
GRAZIANO SAG 24 CNC svarv
Torna GRAZIANO SAG 24 CNC
|
This listing features a Graziano SAG 24 CNC industrial lathe, designed for heavy-duty machining tasks. The machine has a total weight of approximately 11,000 kg, indicating its robust construction suitable for demanding operations. It offers a length between centers of 1,500 mm and a center height of 525 mm, providing ample capacity for various turning applications. The lathe accommodates a maximum diameter above the bed of 1,050 mm and features a spindle bore diameter of 114 mm, allowing it to handle sizable workpieces.
The spindle motor delivers a power output of about 26.8 kW (approximately 36 HP) with a maximum turning speed of 1,500 rpm. These specifications support efficient and precise machining processes. The CNC system utilized is the ECS 2302, enabling automated control for enhanced productivity.

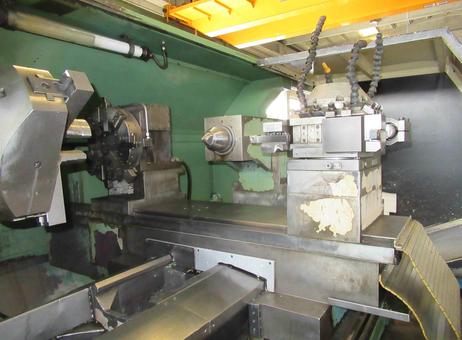

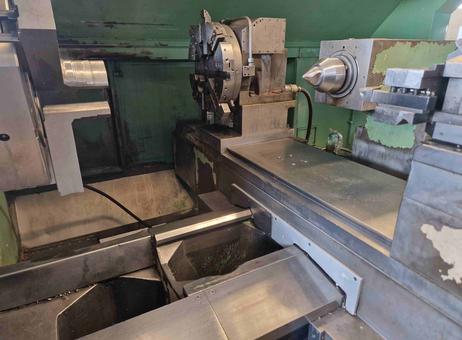

Included with the machine are several accessories to support versatile operations: a platform with a four-jaw independent chuck of 700 mm diameter, a hydraulic self-centering chuck measuring 400 mm in diameter, an automatic square turret, and an 8-position turret. Various tool holders are also part of the package, along with a chip evacuator and complete fairing to help manage debris and maintain a safer working environment.

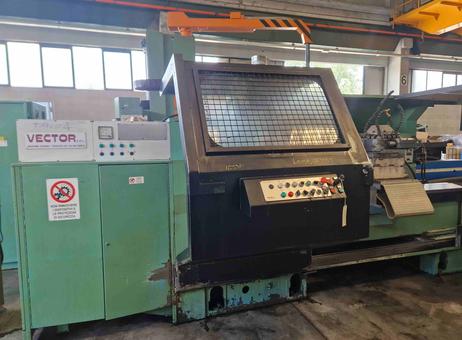

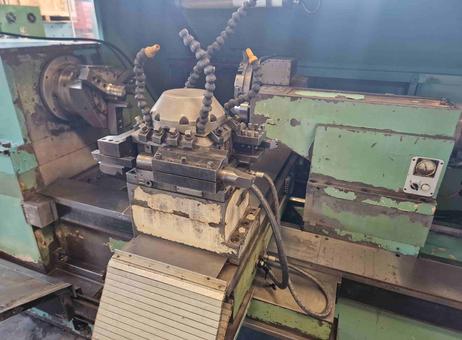

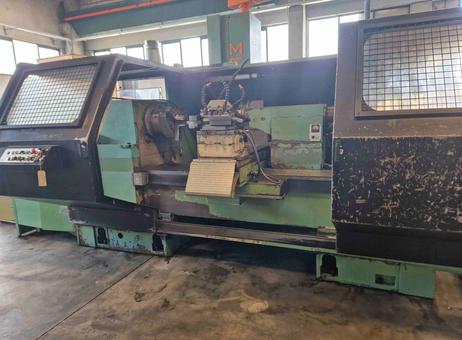

The lathe is housed within a protective black and green casing that shows some wear and paint chipping consistent with regular use and age. The machine includes a control panel equipped with multiple buttons and an emergency stop for operational safety. A protective mesh window on the front panel allows for monitoring the machining process. Coolant hoses and multiple tool holders are integrated into the central tool post to support effective tool management and cooling.
Overall, this Graziano SAG 24 CNC lathe is a substantial and well-equipped machine suitable for industrial turning applications, offering a combination of power, capacity, and CNC control. Its condition reflects typical wear from use but remains a comprehensive setup for machining needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Overhauled in 2003.
Complete with:
- no. 1 platform with four independent jaws Ø 700 mm.
- no. 1 hydraulic self-centering chuck Ø 400 mm.
- no. 1 automatic square turret
- no. 1 8-position turret
- various toolholders
- chip evacuator
- complete fairing
Height Punches: 525 mm.
Distance Punches: 1,500 mm.
O On the Carriage: 700 mm.
O On the Bench: 1,050 mm.
O In the Hollow: 1,250 mm.
Hollow Length: 450 mm.
Bench Width: 600 mm.
Spindle Motor Power: 36 Hp.
Spindle Rotation Speed: 0 to 1,500 rpm.
O Spindle Bore: 114 mm.
O Tailstock sleeve: 120 mm.
Tailstock sleeve stroke: 170 mm.
Cnc: CNC ECS 2302
Total Weight: 11,000 kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 124 |
| Last activity | Oct. 26, 2026 |
