Contact us to receive an offer.
| Manufacturer | GIMAR |
|---|---|
| Model | 190 HL - 19 m3 |
| Year | |
| Location | France
|

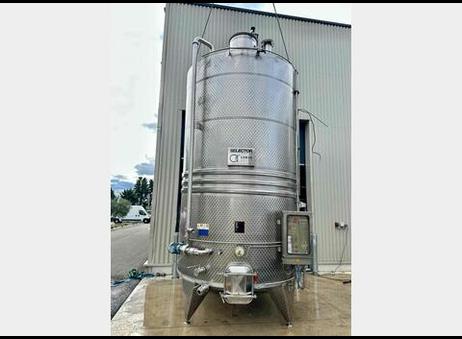

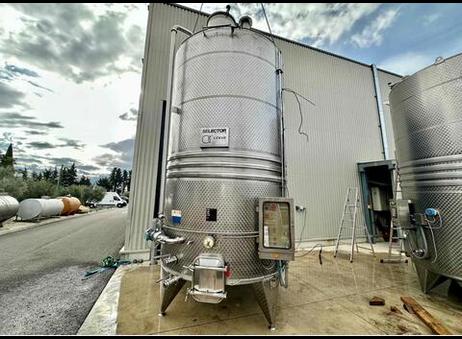

This GIMAR 190 HL stainless steel tank is designed for industrial use with a capacity of 19,000 liters (190 HL). It features a robust construction with a large stainless steel tank body and a conical bottom supported by multiple sturdy legs. The tank stands at a total height of 5450 mm and has a diameter of 2500 mm, with a collar height of 4300 mm.

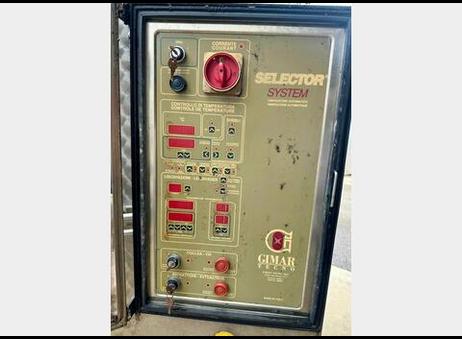

The tank includes a temperature-controlled system, supported by a control panel labeled "SELECTOR SYSTEM" mounted on the side. This panel features a rotary switch, multiple buttons, indicator lights, and warning labels, indicating its role in managing the tank's operational parameters. The control panel shows signs of use with some dirt and wear marks but remains intact.

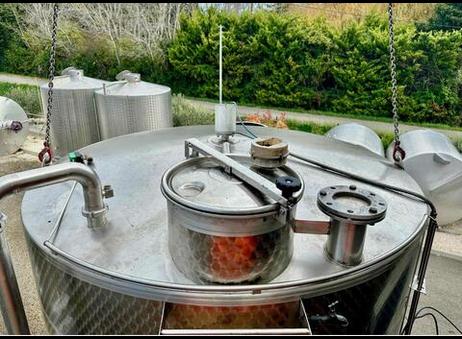

The roof of the tank is equipped with two lifting rings and an off-center chimney featuring a DN 600 mm hatch. The top surface includes various fittings and openings such as a manway with a clamp, a smaller opening with a flange, and additional pipes and sensors. The top surface is clean and well-maintained.

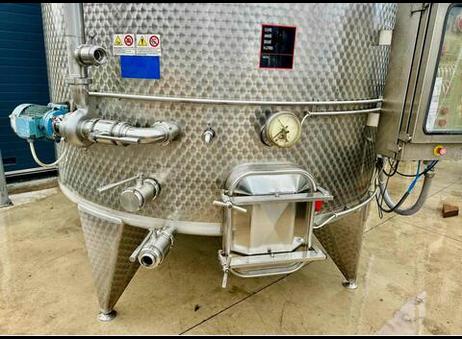

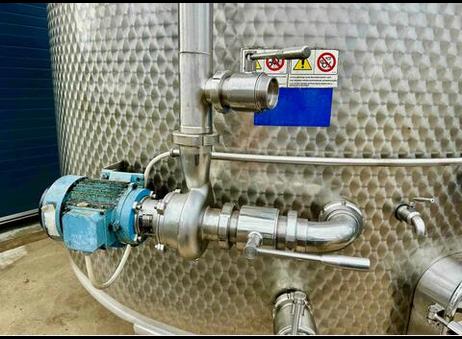

The tank's ring section features one ladder rung, three shell-shaped circuit towers, a pump, and a riser pipe. Several valves are attached, including DN 73 mm partial and total drain ball valves. Multiple valves, gauges, and piping are visible on the lower section, including a pressure gauge and valve handles. The tank has a rectangular access door opening outwards at the bottom of the ring measuring approximately 430 by 540 mm.

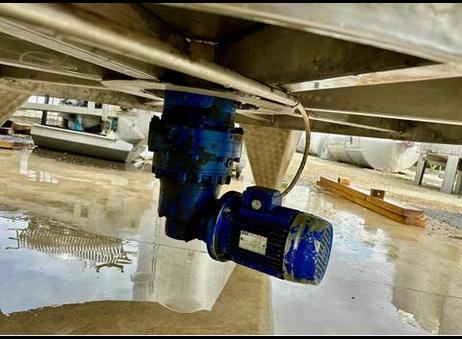

The bottom of the tank is flat with four feet, each 750 mm in height and equipped with adjustment screws. Underneath, an electric motor and gearbox are mounted, showing signs of use but no visible damage. The piping and pump connected to the tank appear intact with no visible leaks or damage.
The tank is finished with a waxed exterior and complies with CE standards. It is designed for use under atmospheric pressure and is suitable for products with a density of 1. Overall, the tank appears clean and in good condition with no visible dents, rust, or corrosion. Warning signs are present near the piping and control panel to ensure safe operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL FEATURES
- Stainless steel tank
- Brand : GIMAR
- Capacity : 190 HL
- Waxed exterior finish
- Temperature-controlled
ROOF
- 2 lifting rings
- 1 off-centre chimney with DN 600 mm hatch
RING
- 1 ladder rung
- 3 shell-shaped circuit towers
- 1 pump and riser pipe
- 1 DN 73 mm partial drain ball valve on connection
- 1 DN 73 mm total drain ball valve on connection
- 1 rectangular door opening outwards at the bottom of the ring 430/540 mm
BOTTOM
- Flat
- 4 feet, height 750 mm, with adjustment screws
DIMENSIONS
- Diameter : 2500 mm
- Collar heigh t: 4300 mm
- Total height : 5450 mm
ANNEXES
- Tank for product density 1
- Operating conditions : atmospheric pressure
- 6-month warranty
- Complies with CE standards
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 141 |
| Last activity | Oct. 28, 2026 |
