| Manufacturer | GEA Ecoflex GmbH |
|---|---|
| Model | VT40 BC-6 |
| Year | 2003 |
| Location | Netherlands
|
Overview:

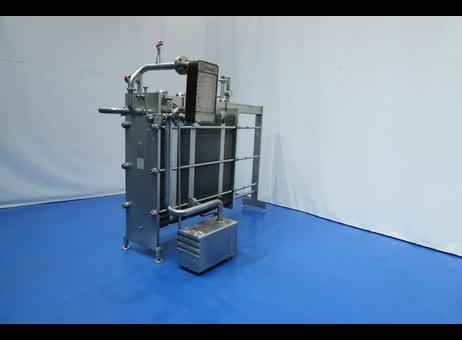

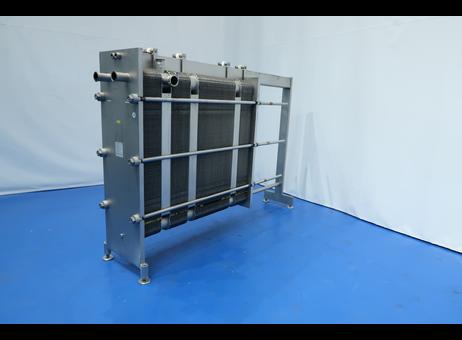

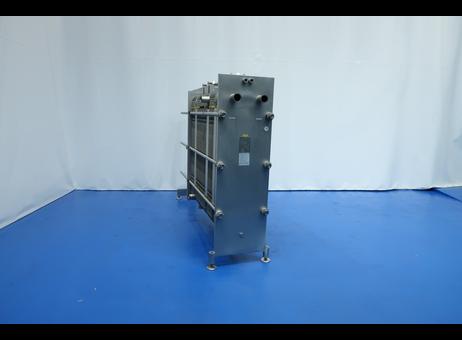

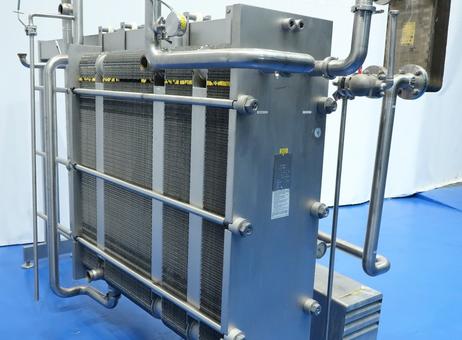

GEA Ecoflex GmbH VT40 BC-6 milk pasteuriser unit with Plate Heat Exchanger (PHE). The unit specification below is taken from the supplied product information. No images were provided, so visual condition and the presence of any additional accessories cannot be confirmed.
Key specifications (as listed):
- Brand: GEA Ecoflex GmbH
- Type: VT40 BC-6
- Capacity: 15.000 liter per hour
- Year: 2003
- Maximum pressure: 8 bar
- Maximum temperature: 130 °C
- Beam length: 254 cm
- PHE dimensions (lxwxh): 275 x 62 x 187
- Weight (listed): 3.505 kg
- Connections: 10 x 2,5" Tryclamp
Configuration and thermal details:
- Current plate configuration: 4 sections (regeneration 2x, heating, cooling)
- Temperature cycle listed: ± 4–55 (outlet to separator) – 75 – 4 °C
- Plate counts per section: 49 – 49 – 121 – 49 (total 268 plates)
- Connections head: 2 up; follower: 2 down
Included components (as listed):
- 1 matching ring key

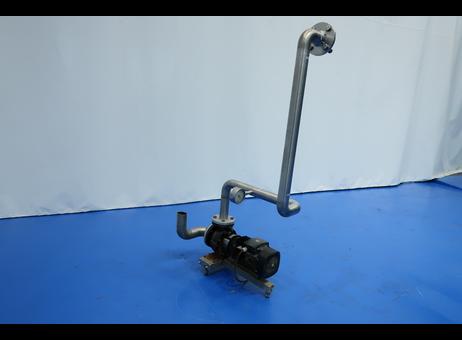

- Hotwater circulation pump: Grundfos NP 65-50-125
- Kelvion brazed heat exchanger for steam/hot water (GBS 700L-60)
- Part of piping and sensors (specified as part of the unit)
Notes and disclaimers:
- The description above only reflects the supplied product information. No claims are made about operational status, testing, refurbishment, or warranty. Buyers should request current condition reports, operational tests, and any further photos or documentation prior to purchase. No additional numeric specifications or details have been added beyond those provided in the original listing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Specifications
BrandGEA Ecoflex GmbH
TypeVT40 BC-6
Capacity15.000 liter per hour
Year2003
GEA Ecoflex GmbH VT40 BC-6
Milk pasteuriser unit, with Plate heat exchanger (PHE). Max pressure: 8 bar - max temperature: 130 °C. Beam length: 254 cm, connections: 10 x 2,5" Tryclamp. Current configuration 4 Sections: regeneration (2x), heating and cooling. temperature cycle: ± 4-55 (outlet to separator) - 75 - 4°C, 49-49-121-49 plates (total 268) - Connections head: 2 up, follower 2 down. With 1 x matching ringkey. Hotwater circulation pump (Grundfos NP 65-50-125) and Kelvion brazed hetatexchanger steam/hotwater (GBS 700L-60), part of piping and sensors. Dimensions PHE: 275x62x187 (lxwxh) - weight: 3.505 kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 321 |
| Last activity | Oct. 26, 2026 |
Specifications
BrandGEA Ecoflex GmbH
TypeVT40 BC-6
Capacity15.000 liter per hour
Year2003
GEA Ecoflex GmbH VT40 BC-6
Milk pasteuriser unit, with Plate heat exchanger (PHE). Max pressure: 8 bar - max temperature: 130 °C. Beam length: 254 cm, connections: 10 x 2,5" Tryclamp. Current configuration 4 Sections: regeneration (2x), heating and cooling. temperature cycle: ± 4-55 (outlet to separator) - 75 - 4°C, 49-49-121-49 plates (total 268) - Connections head: 2 up, follower 2 down. With 1 x matching ringkey. Hotwater circulation pump (Grundfos NP 65-50-125) and Kelvion brazed hetatexchanger steam/hotwater (GBS 700L-60), part of piping and sensors. Dimensions PHE: 275x62x187 (lxwxh) - weight: 3.505 kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
