| Manufacturer | Gab Neumann |
|---|---|
| Model | H-B-4,8 |
| Year | 1988 |
| Location | Netherlands
|

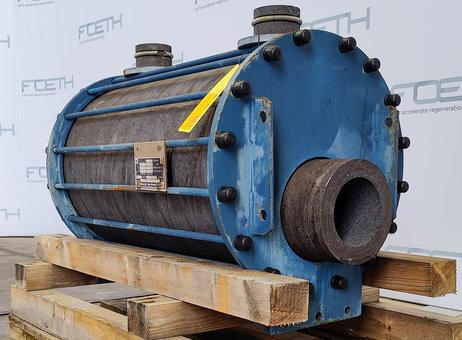

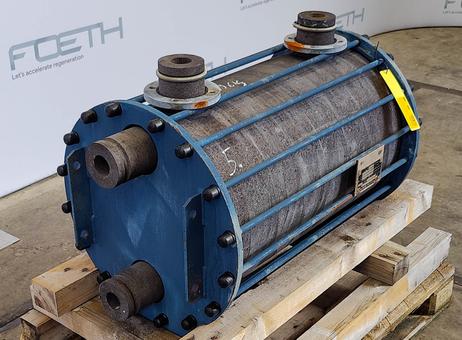

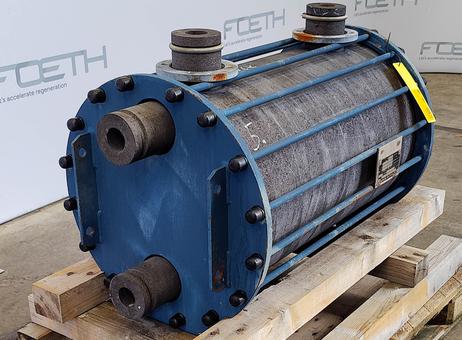

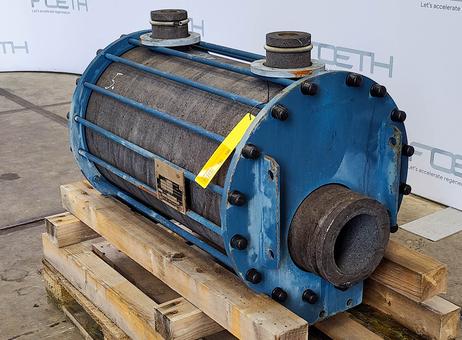

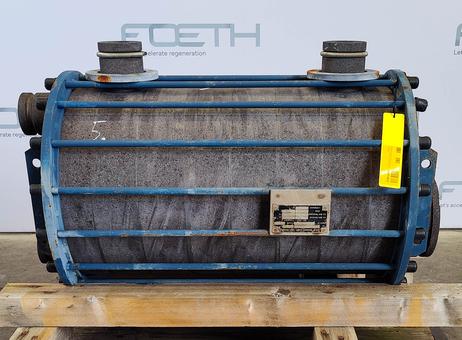

Gab Neumann H-B-4,8 horizontal shell-and-tube heat exchanger with graphite shell and graphite tubes. The listed heating surface is 4.8 m². Vacuum capability is specified for the shell side and for the tube side. The stated maximum temperature is 165 °C. Overall dimensions are 1100 mm long, 600 mm wide and 800 mm high, and the listed weight is 400 kg.
The equipment is described as a heat exchanger with separate shell and tube sides. Both the shell and tubes are identified as graphite, and the unit is specified in a horizontal configuration. The available information also notes vacuum capability on both sides. These details describe the listed design and configuration; no additional condition or operational status is stated.
This listing is suitable for buyers seeking a graphite shell-and-tube heat exchanger with a stated maximum temperature of 165 °C and the dimensions and weight provided above. The description does not make claims about testing, current working condition, refurbishment, warranty, or included accessories. No year of manufacture is specified in the confirmed product fields. Please refer to the stated model and manufacturer when assessing compatibility with a particular process or installation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: 356T1073
Location: Barneveld
Make: Gab Neumann
Type: H-B-4,8
Pressure
Vacuum possible: ✓
Working pressure shell: 3 Bar
Vacuum possible shell: ✓
Working pressure tubes: 3 Bar
Tubular vacuum possible: ✓
Main Features
Shell (Material): Graphite
Tube (Material): Graphite
Surface: 4.8 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 4.8m²
Tube capacity: 21ltr.
Tube length: 830mm
Max. temperature: -10/+165°C
Shell capacity: 19ltr.
Shell diameter: 480mm
Shell length: 830mm
Max. temperature: -10/+165°C
Shell connections: Dia: 50mm (2x)

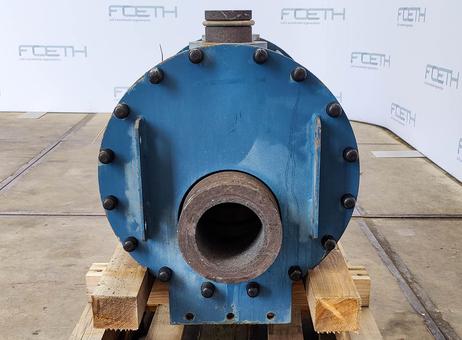

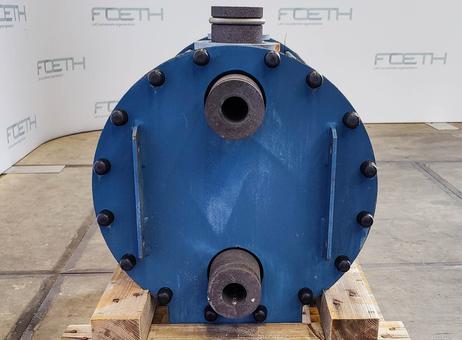

Cover connections: Dia: 150, 50mm(2x)
Material: Graphite
General
No.: 9391-7211
Year of construction: 1988
Floorspace: 1,1x0,6m
Total height: 0,8m
Weight: 400kg
