| Manufacturer | Fryma Koruma |
|---|---|
| Model | Dinex Lab |
| Year | 2009 |
| Location | France
|

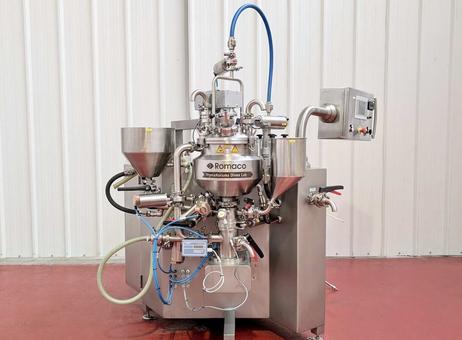

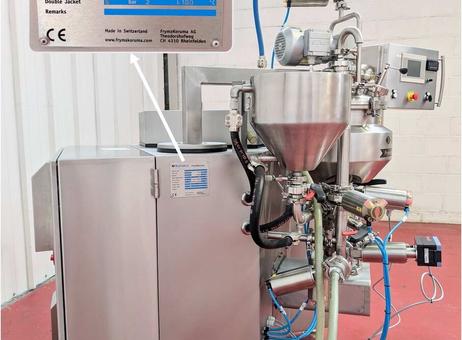

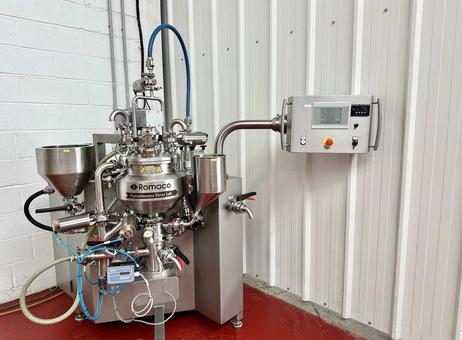

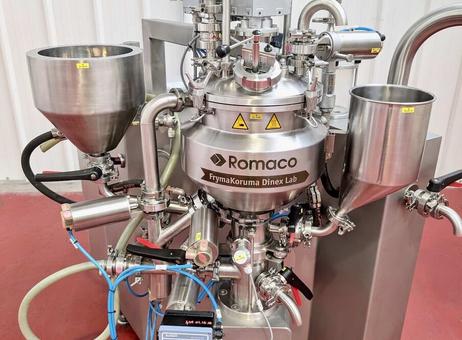

The Romaco FrymaKoruma Dinex Lab is a vacuum mixer and homogenizer designed for research and development or small-scale production applications. It is suitable for processing liquid and viscous semi-liquid products, enabling operations such as dispersion, homogenization, emulsification, grinding, and pumping.

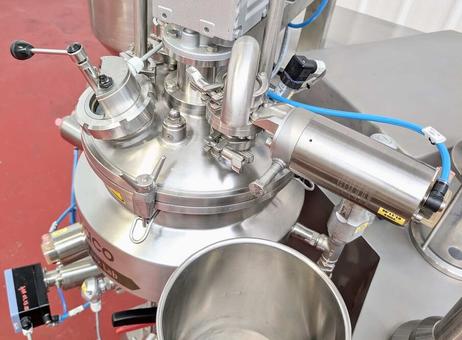

The central mixing vessel has a volume capacity of 18 liters and is constructed from stainless steel (AISI 316L), ensuring durability and hygiene. It operates under a pressure range from vacuum (-1 bar) up to atmospheric pressure (0 bar) and can handle temperatures up to 130°C. The vessel features a double jacket, which allows heating or cooling with a jacket pressure rating of up to 6 bar and a volume of approximately 2 liters. Temperature control is managed via an integrated regulator.

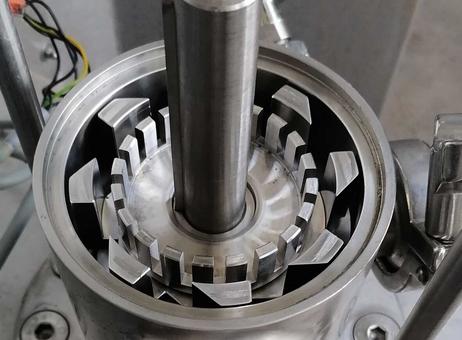

The machine includes a high-speed homogenizer with two operational modes: pumping with discharge and dispersion with high shear force. The homogenizing tool measures 100 mm, with rotor and stator dimensions of 20 x 4 mm and 30 x 4 mm respectively. The homogenizer is powered by a 7.5 kW VEM motor running at 2890 RPM. Additionally, a scraper mixer with slow agitation is driven by a 0.37 kW SEW motor.
A Sterling SIHI LEMA 25 liquid ring vacuum pump is incorporated, offering a power rating of 1.1 kW and a maximum capacity of 16 m³/h. The system is equipped with two stainless steel feed hoppers, one connected to the jacket with piping. Pneumatic and water supplies are supported at 6 bar pressure.

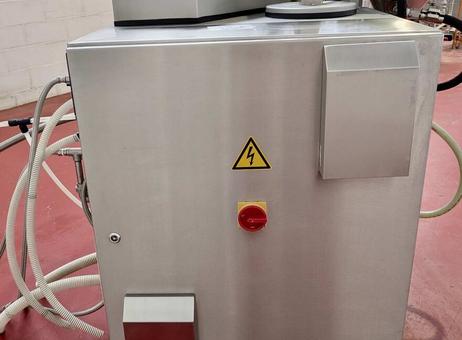

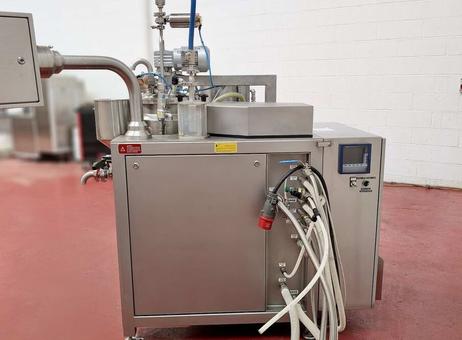

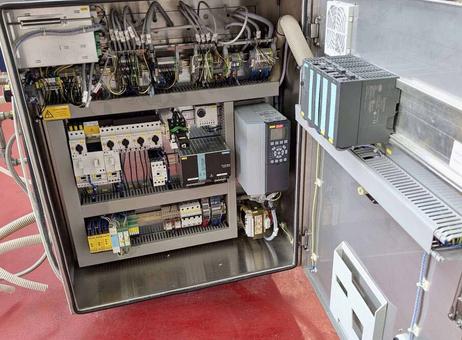

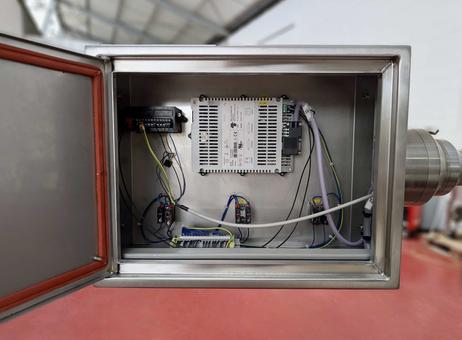

The machine features a control panel with display screen and buttons for operational control, along with digital control units and pneumatic actuators. Multiple pipes, valves, and hoses are connected for fluid transfer, and electrical and fluid connectors are located on the rear side panel. Safety features include an emergency stop switch with a red handle and high voltage warning labels.

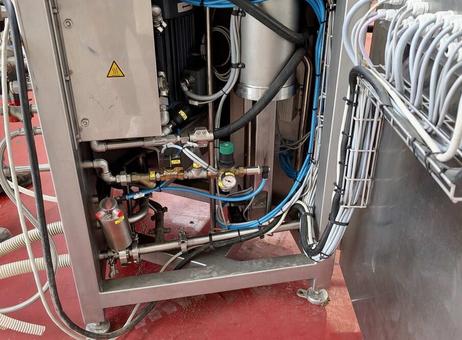

The equipment weighs approximately 750 kg and has a clean, well-maintained stainless steel construction with no visible damage or rust. Wiring and tubing are neatly arranged and secured, and the interior of the hoppers is clean and free of residue. Paper documentation is included with the machine. Manufactured in 2009, this unit is suitable for precise and versatile mixing and homogenizing tasks in laboratory or pilot plant environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Romaco - Frymakoruma
Model: Dinex Lab
Year: 2009
Type: Vacuum mixer for R&D or small-scale production
Application: liquid and/or viscous (semi-liquid) products = dispersion, homogenization, emulsion, grinding, and pumping of the product
Tank:
Pressure: -1 / 0 bar
Volume: 18 L
Temperature: 130°C
Jacket:
Pressure: 6 bar
Volume: 2 L
Temperature: 180°C
Homogenizer: high-speed agitation
2 modes = Pumping with discharge / Dispersion with high shear force
Tool size: 100 mm
Rotor: 20 x 4 mm
Stator: 30 x 4 mm

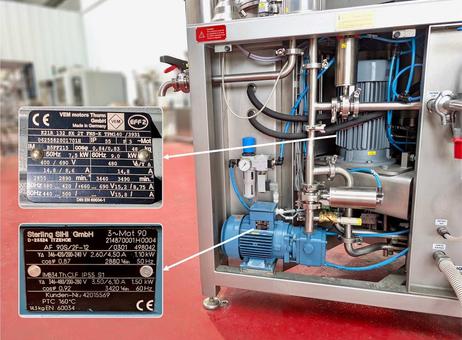

VEM motor 7.5 kW / 2890 RPM

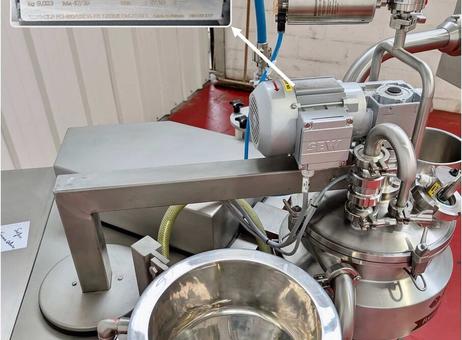

Scraper mixer: slow agitation
SEW 0.37 KW motor
Sterling SIHI LEMA 25 liquid ring vacuum pump
Power 1.1 KW - Max. 16 m³/h.
CIP (clean in place)
2 x feed hoppers, 1 of which is connected to the jacket with its piping
Air pressure: 6 bar
Water pressure: 6 bar
Temperature control regulator
Single-acting seal: reconditioned by Burgmann
Paper documentation
Weight: 750 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
