| Manufacturer | FPT |
|---|---|
| Model | RONIN |
| Year | 2011 |
| Location | Italy
|
Overview:

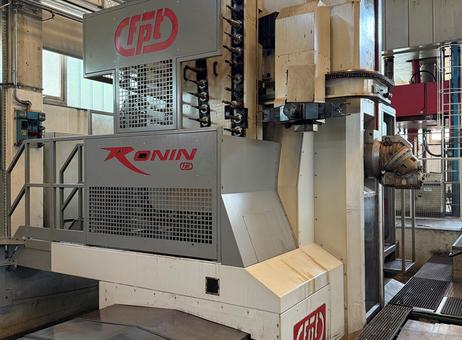

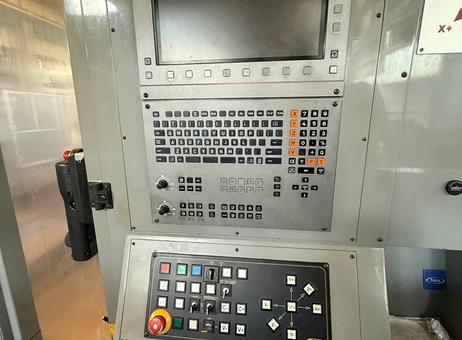

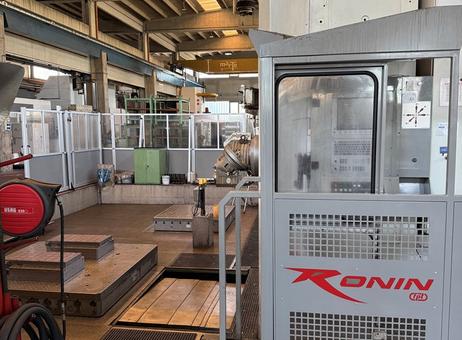

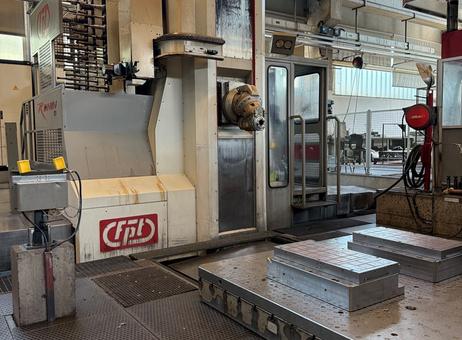

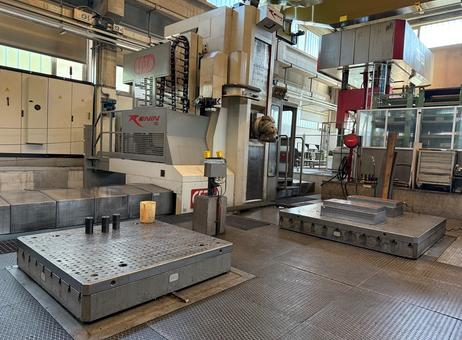

This listing is for an FPT RONIN model CNC moving-column milling machine (model 10160). The machine is described as used and listed with YEAR 2011. Control is a Heidenhain 530 CNC.
Axes and travels:
- X-axis: 8,000 mm
- Y-axis: 1,500 mm
- Z-axis (vertical): 2,500 mm
- V-axis travel: 1,500 mm
Feed and spindle:
- Rapid feed rate: 35,000 mm/min
- Working feed rate: 15,000 mm/min
- Spindle connection: ISO 50
- Maximum spindle speed: 7,000 rpm

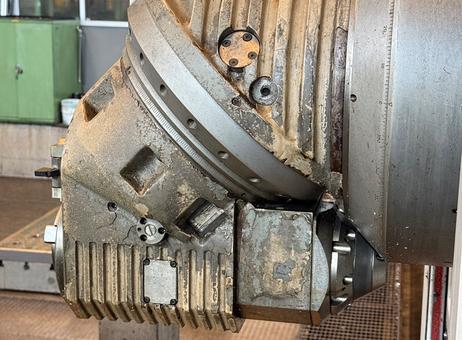

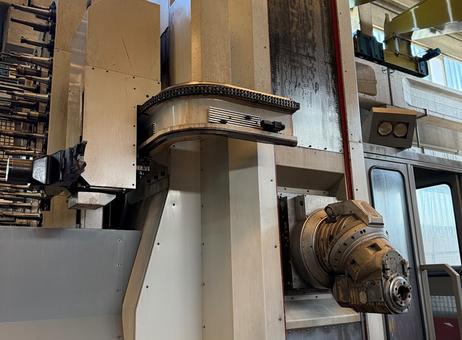

- Continuous dual-rotation automatic head (TUPC)
Tables and capacity:

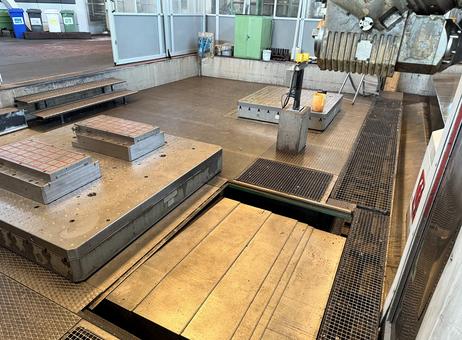

- 1 TRT ROTOTRASLATE hydraulic table — dimensions 2,000 x 2,000 mm — load capacity 15 tons
- 1 rotary table — dimensions 1,500 x 1,500 mm — load capacity 15 tons
Tooling and automation:

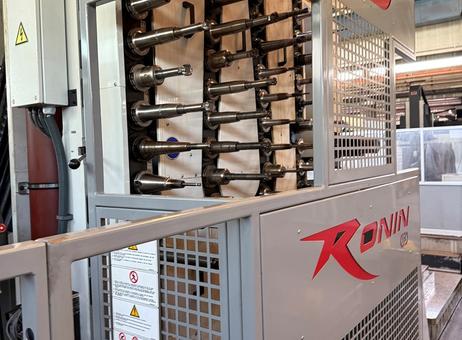

- Tool changer with 80 positions
Installed power and utilities:
- Total installed power: 88.8 kW
Included accessories and options (as listed):
- Internal spindle high-pressure system: 20 bar
- External spindle high-pressure system: 4 bar
- Chip conveyor

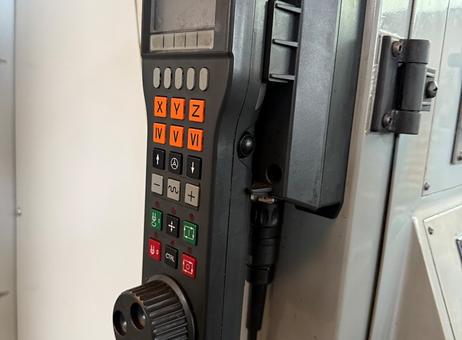

- Radio-frequency remote control panel for the Heidenhain CNC
- Laser probe and associated software for tool integrity verification and for tool length and radius measurement
- Workpiece measurement and alignment probe
Condition note:
The machine is described as USED (YEAR 2011) in the provided information. No additional condition, testing status, refurbishment, or warranty details are specified in the provided description, and no further claims about operational status are made here.
For purchase consideration, the listed technical specifications and included accessories should be reviewed against any inspection report or seller documentation you obtain.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
FPT
10160
FPT RONIN Model CNC Moving Column Milling Machine
Heidenhain 530 CNC Control
X-axis mm 8,000
Y-axis mm 1,500
Z-axis (vertical) mm 2,500
Rapid feed rate 35,000 mm/min
Working feed rate 15,000 mm/min
Continuous dual-rotation automatic head (TUPC)
ISO 50 spindle connection
Max. speed 7,000 rpm
1 TRT ROTOTRASLATE table
HYDRAULIC
Dimensions mm 2,000 x 2,000
V-axis travel mm 1,500
Load capacity 15 tons
1 ROTARY table
Dimensions mm 1,500 x 1,500
Load capacity 15 tons
Tool changer 80 positions
Total installed power 88.8 kW
Complete with:
- Internal spindle high pressure 20 bar
- External spindle high pressure 4 bar
- Chip conveyor
- Radio-frequency remote control panel for Heidenhain CNC
- Laser probe and software for tool integrity verification and tool length and radius measurement
- Workpiece measurement and alignment probe
USED MACHINE
YEAR 2011
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
