| Manufacturer | FPT |
|---|---|
| Model | EV AREA M160 |
| Year | 2005 |
| Location | Italy
|
This is a FPT EV AREA M160 travelling column milling machine, manufactured in 2005. It features a large working envelope with a longitudinal (X) axis travel of 16,000 mm, a vertical (Y) axis travel of 3,500 mm, and a transverse RAM (Z) axis travel of 1,500 mm. The machine's overall dimensions measure approximately 21,900 mm in length, 9,859 mm in width, and 5,341 mm in height.

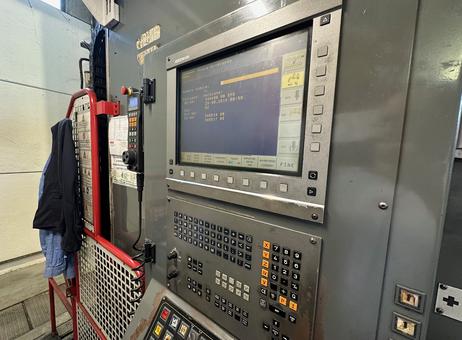

The machine is equipped with hydrostatic supporting axes and is controlled by a CNC system using a Heidenhain TNC530 controller. The drives are Siemens brand, and it includes a pressurized optical lines measurement system. It has 60 stations with tool attachment via ISO50 spindle cones.
The milling head is of type TUPCG, featuring A and C axes capable of 360 degrees rotation with a resolution of 0.001 degrees. There is a head change pick-up station with two positions, and the spindle includes a 500 mm extension. The coolant system uses CTS refrigerant with a SELS4 type.
Additional features include a chip conveyor running longitudinally and a mobile operator platform to facilitate operation. Documentation provided includes use and maintenance manuals, electrical diagrams, and CE certification.
The machine is situated in a clean indoor industrial environment and shows no visible damage. It has a large metal worktable with T-slots for mounting workpieces and is surrounded by a protective cage with mesh panels around the operator area. Hydraulic or pneumatic hoses and cables are connected to the machine column.
This milling machine is suitable for heavy-duty machining tasks requiring large travel distances and precise control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Longitudinal (X) 16000 mm
Vertical (Y) 3500 mm
Transverse RAM (Z) 1500 mm
Supporting axes hydrostatic
CNC
Measurement system pressurized optical lines
Drives SIEMENS
CNC Heidenhain TNC530
Stations 60
Tool attachment ISO50
HEAD CHANGE PICK-UP STATION
Positions 2
HEAD
Type TUPCG
Spindle cone ISO50
Axis A 360.000x0.001 °
C-axis 360.000x0.001 °
Refrigerant CTS
Type SELS4
Spindle cone ISO50
Refrigerant CTS
Notes 500mm spindle extension
EXTRA
Machine dimensions 21900x9859x5341(+762) mm
Mobile operator platform Yes
Use and maintenance books Yes
Electrical diagrams Yes
CE Certification Yes
Chip conveyor longitudinal
Availability ready
Main interventions/updates carried out on the machine constant maintenance FPT service
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
