| Manufacturer | FOREST-LINE |
|---|---|
| Model | SERAMILL V3 270 2T |
| Year | 2008 |
| Location | Switzerland
|

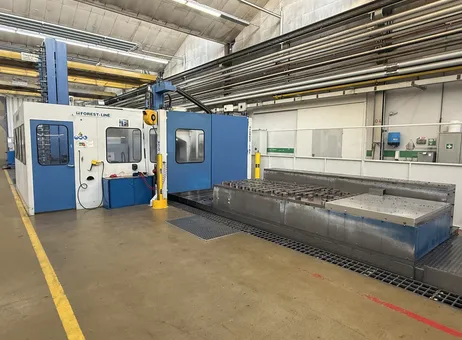

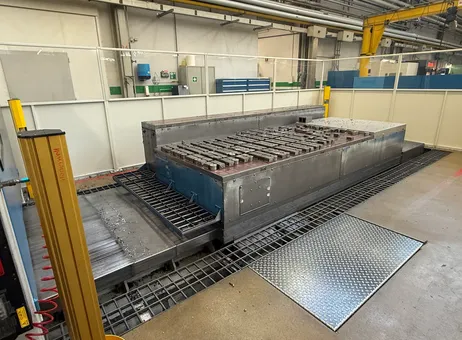

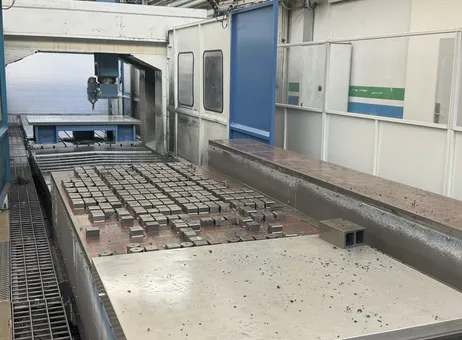

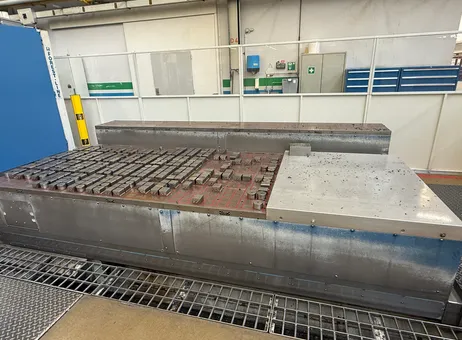

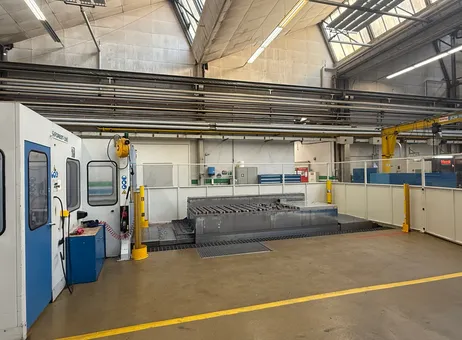

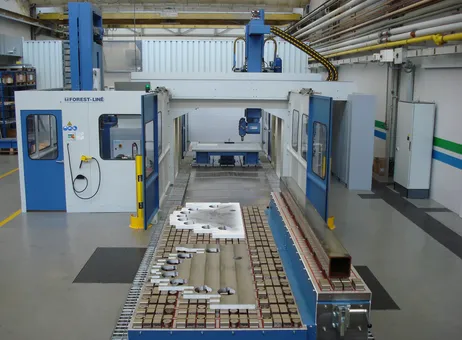

This listing is for a FOREST-LINE SERAMILL V3 270 2T gantry milling machine, controlled by a SINUMERIK 840D system and manufactured in 2008. The machine features two tables with dimensions of 3000 mm by 2000 mm and 4000 mm by 2000 mm respectively, providing a total clamping surface of 8100 mm in length and 2000 mm in width. It includes 9 T-channels, each 22H12 mm wide, spaced 200 mm apart.
The machine's axes travel are as follows: X axis has a maximum travel of 9600 mm (5000 mm when using one table), Y axis 3400 mm, and Z axis 1250 mm. It is equipped with rotary axes A and C, with the A axis capable of +/- 135° rotation in 2.5° increments and the C axis providing full 360° rotation also in 2.5° increments, both utilizing revolving units with Hirth serration for precision.
The distance between columns measures 2700 mm, and the maximum table load capacity is 10,000 kg. The spindle features an SK 50 nose and a universal milling head, with spindle speeds ranging from 10 to 7500 revolutions per minute. Feed rates for the X, Y, and Z axes range from 1 mm/min up to 30,000 mm/min, with rapid traverse speeds of 30,000 mm/min for X and Z axes and 40,000 mm/min for the Y axis.
The machine operates on 400 Volt, 50 Hz, 3-phase power, with a spindle motor rated at 31 kW and spindle torque of 430 Nm. Total power consumption is approximately 90 kVA. Overall dimensions are 22,000 mm in length, 7,500 mm in width, and 5,020 mm in height.
Included accessories are a tool holder with 700 pieces, an automatic tool setting device by BLUM, a Touch Probe from M&H, a chip conveyor, a coolant system including coolant through spindle (CTS), and various spare parts.
Please note that the buyer is responsible for dismantling and collecting the machine on site. Viewings are available by appointment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Type: SERAMILL V3 270 2T
Manufacturer: FOREST-LINE
Group: Milling machine gantry type
Subgroup: Milling machine gantry type
Control: SINUMERIK 840D
Year: 2008
The buyer must dismantle and pick up the machine on site. Viewings are available by appointment.
Number of tables 2
Table length 3000 mm
Table width 2000 mm
Table length 4000 mm
Table width 2000 mm
Clamping surface:
Length 8100 mm
Width 2000 mm
Number of T-channels 9
T-channel width 22H12 mm
Distance of the T-slots 200 mm
X axis 9600 mm
X axis (with 1 table) 5000 mm
Y axis 3400 mm
Z axis 1250 mm
A axis +/- 135° / 2.5°
Revolving unit with Hirth serration
C axis 360° / 2.5°
Revolving unit with Hirth serration
Distance between columns 2700 mm
Table load max. 10000 kg
Spindle nose SK 50

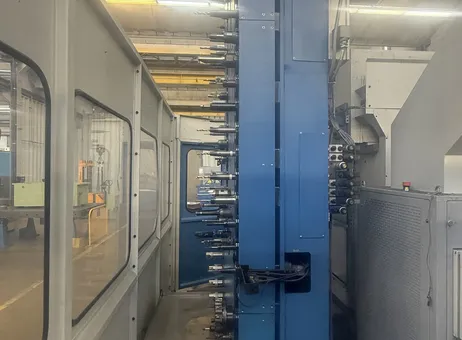

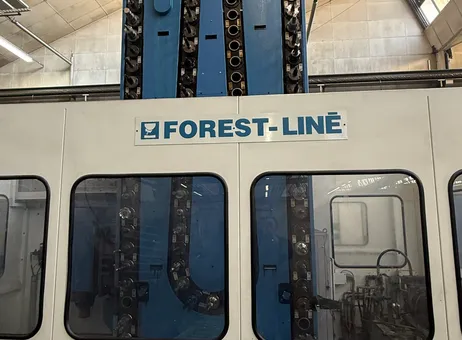

Tool magazine number of tool places 120
Universal milling head
Spindle speeds:
from 10 t/min
up to 7500 t/min
Feeds:
X axis from 1 mm/min
up to 30000 mm/min
Y axis from 1 mm/min
up to 30000 mm/min
Z axis from 1 mm/min
up to 30’000 mm/min
Rapid traverse:
X axis 30’000 m/min
Y axis 40’000 m/min
Z axis 30’000 m/min
Voltage 50 Hz 3x 400 Volt
Spindle motor 31 kW
Spindle torque 430 Nm
Total power required 90 kVA
Length 22000 mm
Width 7500 mm
Height 5020 mm
Various accessories:
Tool holder 700 pce
Automatic setting tool BLUM
Touch Probe M&H
Chip conveyor
Coolant system
Coolant through spindle (cts)
Various spare parts
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
