| Manufacturer | FIL |
|---|---|
| Model | FBM300 |
| Year | |
| Location | Italy
|
Overview

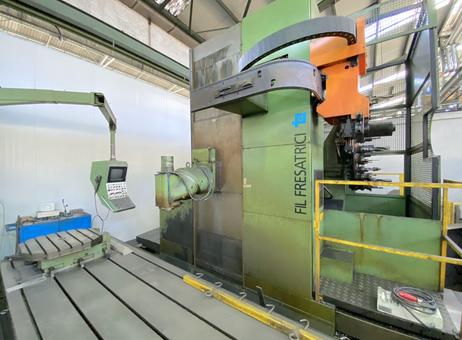

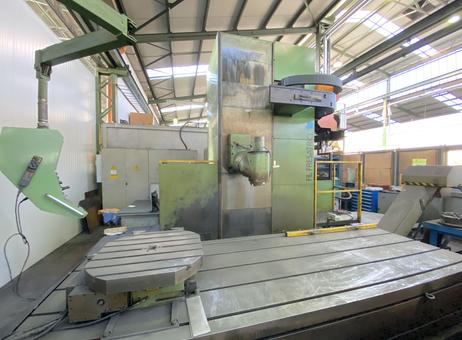

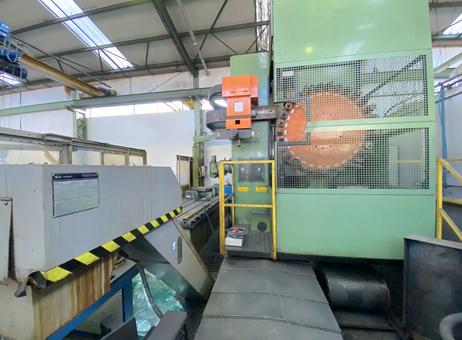

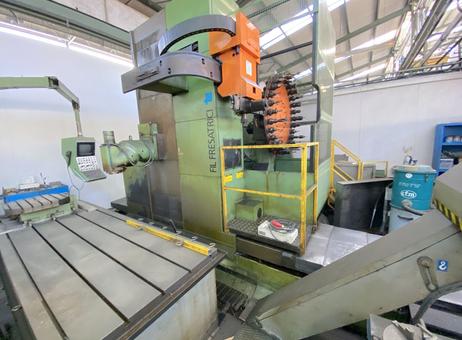

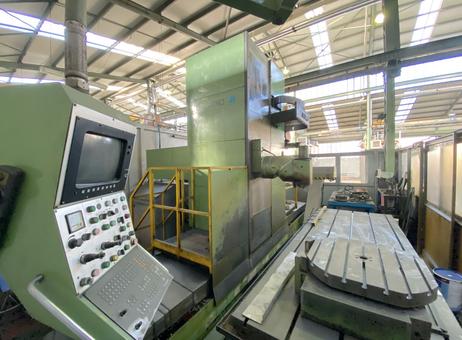

This listing is for an FIL FBM300 portal-type CNC milling machine with a working capacity of 3000 x 1500 x 1000 mm (118.11 x 59.06 x 39.37 in). The machine is equipped with a Heidenhain TNC426CA CNC control and Siemens drives. Remote handwheel and pendulum-cycle preparation are provided (Heidenhain HR332).
Key technical specifications
- Working area (X × Y × Z): 3000 × 1500 × 1000 mm (118.11 × 59.06 × 39.37 in)

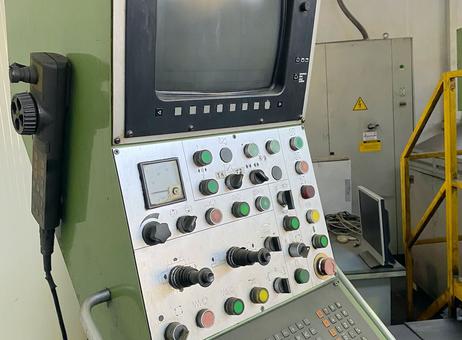

- CNC: Heidenhain TNC426CA
- Measuring system: Optical scales

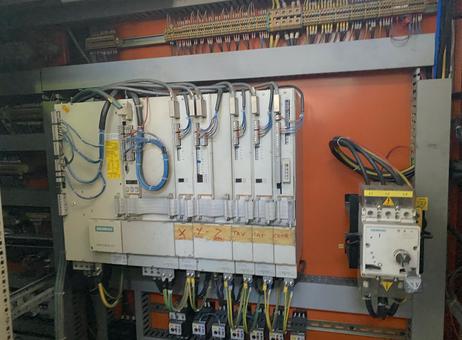

- Drives: Siemens
Spindle
- Power: 33 Kw
- Max speed: 3000 rpm
- Taper: ISO 50
- Speed ranges: ZF 10–200 rpm and 200–3000 rpm
Feeds and rapids
- Rapid travel (X, Y, Z): 10 m/min (393.70 ipm)
- Feedrates (X, Y, Z): 5–10 m/min (196.85–393.70 ipm)

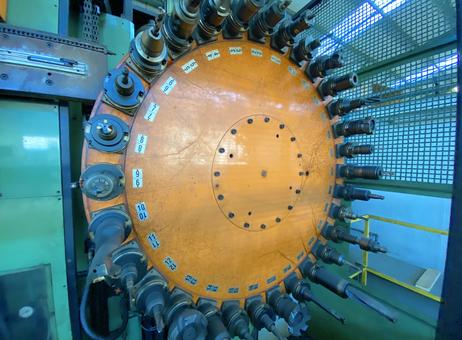

Automatic tool changer (ATC)
- Positions: 30
- Max tool diameter: 120 mm (4.72 in)
- Max tool length: 500 mm (19.69 in)
- Max tool weight: 25 kg
- Tool holder: ISO50 DIN69871
- Max diameter with adjacent empty positions: 400 mm (15.75 in)
- Positioning: Horizontal/Vertical

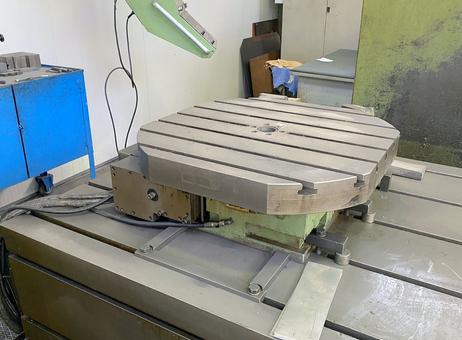

Table and rotary axis
- Table surface: 700 × 700 × h278 mm (27.56 × 27.56 × h10.94 in)
- Table capacity: 3500 kg
- Resolution (B axis): 360000 °
- Rotation speed: 10 rpm or °/min
- Notes: Haidenhain encoder, possibility of vertical/horizontal mounting, Siemens motor, CNC-controlled rotation, 5 T-slots 18 mm H8
Head and coolant

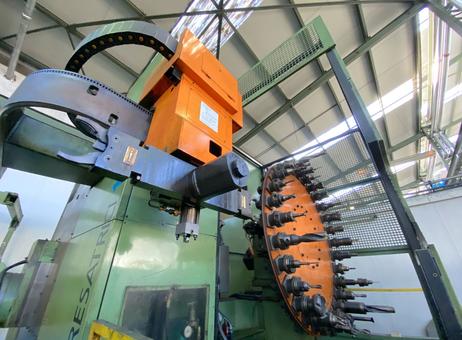

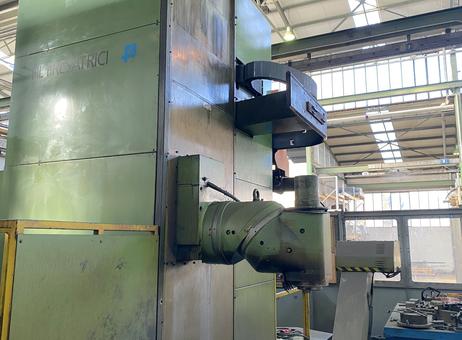

- Head type: Automatic birotary
- Axis A/C travel: 2.5 ° / 2.5 °
- Max speed (head): 3000 rpm
- Max power: 33 Kw
- Internal coolant: 30 lt/min
Mounting plane
- Dimensions (L × W × H): 3500 × 1200 × 800 mm (137.80 × 47.24 × 31.50 in)
- Capacity: 25000 Kg/m2
- Number of T-slots: 5 × 22 mm H8
Extras and documentation
- Included accessories: Continuously controlled rotary table, remote CNC handwheel, perimeter guarding
- High pressure coolant: Yes (30 lt/min) with 300-liter tank
- Filtration system: Yes
- Guarding: Yes
- Chip extractor: Yes
- Workpiece probe: Heidenhain TS220
- CE certification: Yes
- User and maintenance manuals and electrical diagrams: Yes
- Availability status listed as: READY
Notes
The information above is taken from the provided product specification. These data may be incomplete or contain inaccuracies and do not constitute a contractual guarantee. Inspection and verification of the machine and its documentation are recommended prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category
Milling Machine
Type
Portal-type
Brand
FIL
Model
FBM300
Capacity
3000x1500x1000 mm118.11x59.06x39.37 in
Technical specifications
Convert toMetricImperial
WORKING AREA
Longitudinal (X)
3000 mm118.11 in
Vertical (Y)
1500 mm59.06 in
RAM Transversal (Z)
1000 mm39.37 in
CNC
CNC
Heidenhain TNC426CA
Measuring system
Optical Scales
Drives
Siemens
Notes
Remote Heidenhain HR332 handwheel, cycle preparation for pendulum operation
SPINDLE
Spindle power
33 Kw
Rotation speed
3000 Rpm
Taper
ISO 50
Speed range
ZF 10-200Rpm / 200-3000Rpm
FEEDS
Rapid X
10 m/min393.70 ipm
X
5-10 m/min196.85-393.70 ipm
Y
5-10 m/min196.85-393.70 ipm
Z
5-10 m/min196.85-393.70 ipm
Rapid Y
10 m/min393.70 ipm
Rapid Z
10 m/min393.70 ipm
ATC
Positions
30
Max tool diameter
120 mm4.72 in
Max tool length
500 mm19.69 in
Max tool weight
25 Kg
Position
Horizontal/Vertical
Max diameter with adjacent empty positions
400 mm15.75 in
Tool holder
ISO50 DIN69871
TABLE
Surface
700x700xh278 mm27.56x27.56xh10.94 in
Capacity
3500 Kg
Resolution (B axis)
360000 °
Rotation speed
10 Rpm or °/min
Notes
HAIDENHAIN ENCODER, POSSIBILITY OF VERTICAL/HORIZONTAL MOUNTING, SIEMENS MOTOR, CNC CONTROLLED ROTATION, 5 T-SLOTS 18MM H8
Available on request
Yes
HEAD
Spindle taper
ISO 50
Type
AUTOMATIC BIROTARY
Axis A
2.5 °
Axis C
2.5 °
Max speed
3000 Rpm
Max power
33 Kw
Coolant
INTERNAL 30lt/min
MOUNTING PLANE
Dimension (LxWxH)
3500x1200x800 mm137.80x47.24x31.50 in
Capacity
25000 Kg/m2
Number of T-slots
5x22mm H8
EXTRAS
Included accessories
Continuously controlled rotary table, remote CNC handwheel, perimeter guarding
High pressure
Yes, 30lt/min, 300-liter tank
Filtration system
Yes
Guarding
YES
Chip extractor
YES
Availability
READY
CE Certification
Yes
User and maintenance manuals
Yes
Electrical diagrams
Yes
Workpiece probe
Heidenhain TS220
The data provided is based on information available to us, where possible obtained from the manufacturers. Therefore, despite good faith, due to the nature and complexity of the products, these data may be incomplete and/or inaccurate and in no case can their accuracy be guaranteed or constitute any contractual obligation. We always recommend inspecting the products and verifying the data.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
