Contact us to receive an offer.
| Manufacturer | FADAL |
|---|---|
| Model | VMC 3016 |
| Year | 1994 |
| Location | Poland
|

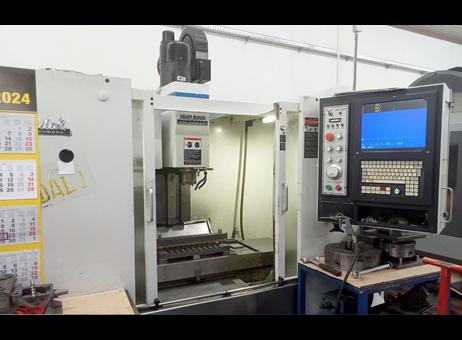

The FADAL VMC 3016 is a vertical machining center manufactured in 1994, designed for versatile and precise machining tasks. This model features a robust construction with dimensions of 2900 mm in length, 2055 mm in width, and 2070 mm in height, and it weighs 3765 kg. It is equipped with a worktable measuring 1000 x 400 mm, capable of supporting parts up to 453 kg. The machining envelope includes axis travels of 760 mm (X), 400 mm (Y), and 500 mm (Z), allowing for a wide range of machining operations.
The spindle is powered by an 11.2 kW motor with a maximum speed of 10,000 rpm, featuring an ISO 40 taper and delivering a spindle torque of 18.1 Nm. The spindle-to-table distance ranges from 101 to 609 mm, and the spindle axis to column spacing is 406 mm. The machine includes an automatic tool changer (ATC) with 21 tool pockets, supporting tool diameters up to 76.2 mm (114 mm with adjacent empty positions), tool lengths up to 381 mm, and tool weights up to 6.8 kg. Tool selection can be random or bidirectional.

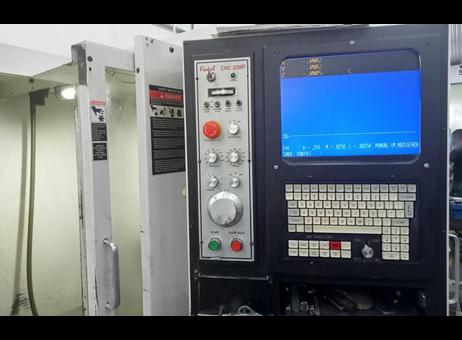

The machining center operates with precise axis positioning accuracy of 0.050 mm and repeatability of 0.025 mm, aided by 40 mm diameter ball screws. Rapid feed rates are 18 m/min for X and Y axes and 15 m/min for the Z axis, with cutting speeds ranging from 2.5 to 6350 mm/min. The machine is controlled by the FADAL CNC 32MP system, which features an intuitive interface with screen and keyboard controls, as well as emergency stop and start buttons.

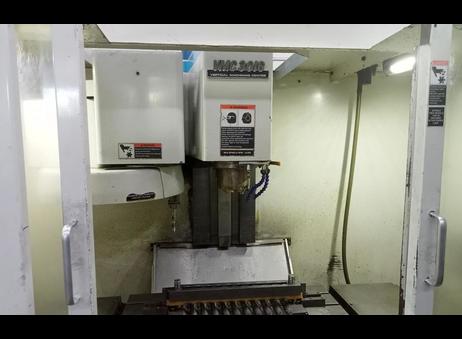

The workspace is well-lit and visible through open doors, with coolant nozzles and hoses near the spindle head to support machining operations. Workholding fixtures and clamps are mounted on the table, facilitating secure part setup. The machine shows signs of normal use, including some metal shavings and residue inside the machining area, but appears clean and well-maintained overall. Safety warning labels are present on the spindle head and inside the machine, ensuring operator awareness.
Overall, the FADAL VMC 3016 offers a solid combination of power, precision, and flexibility suitable for various machining applications requiring reliable vertical machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The FADAL VMC 3016 CNC vertical machining center was manufactured in 1994 in the United States. The machine designed for machining workpieces with a maximum weight of 453 kg is distinguished by its wide machining capabilities, precision and high efficiency, making it ideal for even the most intensive challenges. The machining process is carried out inside a large, fully lit workspace using an efficient spindle and cutting tools taken from a 21-position magazine. The movement of the X, Y, Z axes carried out on precise guides brings additional benefits in the form of excellent dynamics and feed repeatability. The whole is complemented by intuitive CNC control with many useful functions, in which machining programs are created in just a few steps. The VMC 3016 CNC machining center weighs 3765 kg.
- CNC control: FADAL CNC 32MP
- X/Y/Z axis feed: 760/400/500 mm
- X, Y axis rapid feed: 18 m/min
- Z axis rapid feed: 15 m/min
- X, Y, Z axis cutting speed: 2.5-6350 mm/min
- axis drive motor power (constant/peak): 2.4/4.7 kW
- maximum workpiece weight: 453 kg
- worktable dimensions (length x width): 1000 x 400 mm
- number of T-slots: 3
- T-slot width: 14 mm
- T-slot spacing: 110 mm
- distance from worktable to floor: 762 mm
- maximum spindle speed: 10000 rpm
- minimum spindle speed: 75 rpm
- power : 11.2 kW
- spindle taper : ISO 40
- spindle torque : 18.1 Nm
- distance from spindle nose to work table : 101-609 mm
- distance from spindle axis to column spacing : 406 mm
- automatic tool changer (ATC)
- maximum number of tools : 21
- tool selection : random/bidirectional
- maximum tool diameter : 76.2 mm
- maximum tool diameter (adjacent empty positions) : 114 mm
- maximum tool length : 381 mm
- maximum tool weight : 6.8 kg
- axis positioning accuracy : 0.050 mm
- axis repeatability accuracy : 0.025 mm
- screw ball diameter : 40 mm
- workspace lighting
- air pressure : 80 PSI
- noise level : 77 dB(A)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
