Contact us to receive an offer.
| Manufacturer | Engel |
|---|---|
| Model | victory 750/220 spex |
| Year | 2015 |
| Location | Slovakia
|
| Category | Injection moulding machines |
| Clamping force | 220 T |
| Screw diameter | 45 mm |
| Bi-metal screw | Yes |
| Equipped with robot | No |
| Robot interface | |
| Opening of the press | 758 mm |
| Mould size | |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Engel Victory 750 / 220 spex |
| Last availability date | 12/02/2026 |
| Product id | P260119081 |
| Language |

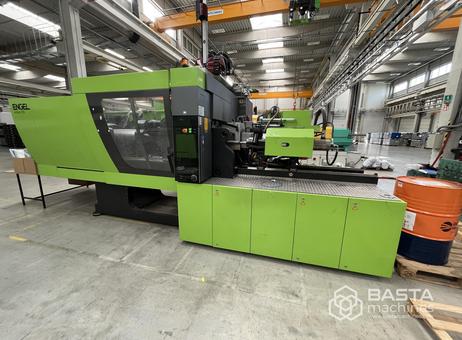

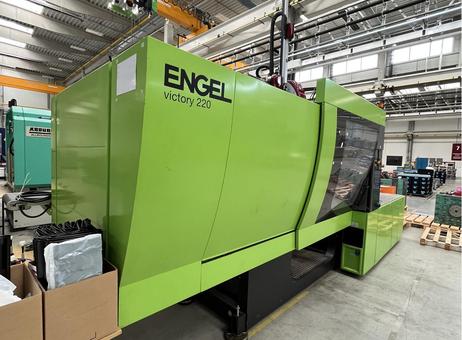

Engel victory 750/220 spex
Engel victory 750/220 spex (2015) tiebarless
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
Engel victory 750/220 spex
|
This Engel Victory 750/220 Spex injection moulding machine, manufactured in 2015, features a hydraulic drive system and a clamping force of 220 tons. It is equipped with a bi-metal screw with a diameter of 45.0 mm, designed for efficient injection molding processes. The machine's injection unit includes an S8 screw geometry (G1, LD20) suitable for applications such as 30% glass fiber reinforced materials, with a shot volume of 318 cm³.

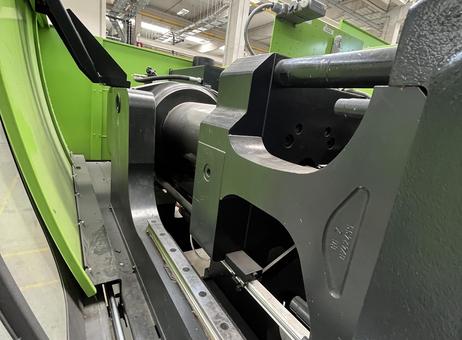

The clamping unit offers a minimum mold height of 300 mm and a maximum opening of 758 mm, providing flexibility for various mold sizes. The machine is controlled via an Engel CC300 control panel, which is visible on the side and includes buttons and a display for operational management.

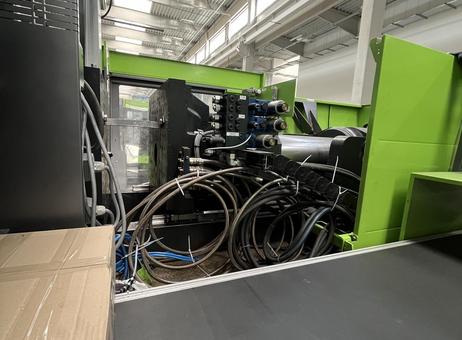

The exterior of the machine is primarily green and black, with intact panels showing only minor surface wear and marks, indicating careful usage. The clamping unit, including tie bars and platen, appears well-maintained with some minor signs of use. Hydraulic and electrical connections at the rear are organized and intact, with multiple hoses and cables properly arranged.
This model does not come equipped with a robot. Additionally, the machine includes Euromap 67 interface compatibility, mold heating control with 8 zones, 2 pneumatic valves, 4 hydraulic valves, and 4 core pullers, supporting complex molding tasks.
The machine's overall condition is good, with cleanliness and maintenance evident, although detailed operational history and hours of use are not specified. Further complete machine data is available upon request for interested buyers seeking detailed technical information.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Controll : CC300 Clamping force: 220 t Injection unit Screw diameter: 45 mm (S8 Screw Geometrie G1, LD20) 30% GF Shot volume: 318 cm3 Type: Horizontal Drive: Hydraulic Clamping unit Min mould height: 300 mm max opening : 758 mm Equipment: Euromap 67 Mould heating controll 8 zones 2x Pneumatic valve 4x hydraulic valves 4x Core pullers Hours: ca 37000 Wittmann W818-4597 available Complete machine data on request.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
