| Manufacturer | Engel |
|---|---|
| Model | e-victory 310/80 |
| Year | 2008 |
| Location | Slovakia
|

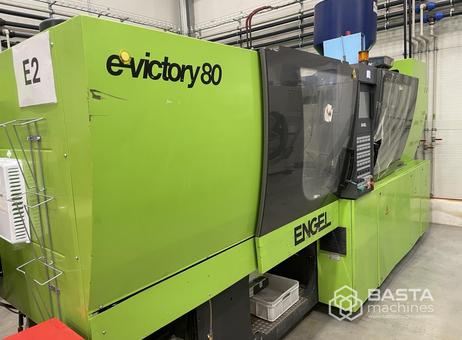

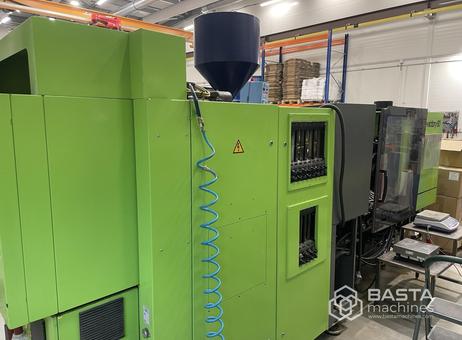

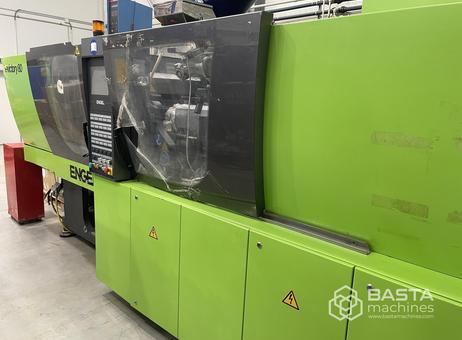

This Engel e-victory 310/80 injection molding machine, manufactured in 2008, is a robust hydraulic horizontal type designed for precision molding tasks. It features a clamping force of 80 tonnes (800 kN) and a screw diameter of 35 mm, suitable for handling a variety of molding applications. The machine has tie bar spacing of 670 mm horizontally and 600 mm vertically, providing ample space for mold installation and operation.
The injection unit offers a maximum injection pressure of 2000 bar and a shot volume of approximately 154 cm³, with an injection speed reaching up to 222 mm/s. The maximum stroke volume is 160 mm. The machine is equipped with a bi-metal screw, enhancing its durability and performance during operation. The opening of the press is 670 mm, allowing for flexible mold height accommodation.
The clamping plates measure 670 by 600 mm, with a central ring diameter of 125 mm. The machine weight is approximately 5700 kg, reflecting its solid construction. Cooling is managed through 12 circuit coolers, including 8 on the fixed side and 4 on the movable side, each with float pressure gauges to monitor performance. It also includes integrated control for hydraulic cores and features 24 heating zones regulated for precise temperature control.

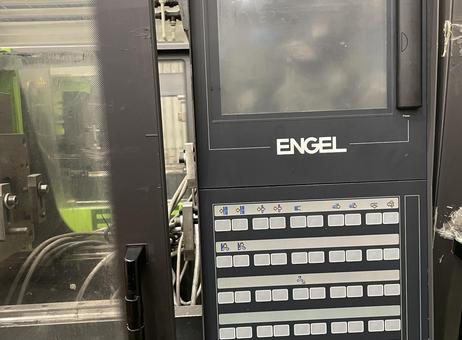

From the visible components, the machine has a control panel equipped with multiple buttons and a screen, protected by a transparent cover that shows some wear and scratches. Safety features include visible warning signs for electrical hazards and a red emergency stop button on the control panel. The machine's exterior displays some scratches and scuff marks, indicating typical wear consistent with industrial use.
This Engel e-victory 310/80 is not equipped with a robot, emphasizing manual operation. Overall, it is a well-constructed injection molding machine suitable for various production environments requiring reliable hydraulic injection molding capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Clamping force: 80 t Screw diameter: 35 mm Distance between tie bars V: 600 mm Distance between tie bars H: 670 mm Shot volume: 154 cm3 Type: Horizontal Drive: Hydraulic Engel e-victory 310/80 Year of manufacture 2008, 48765 engine hours Machine weight 5700Kg Prümer sneku 35mm, standard Minimum mold height 245mm, distance between plates 635mm pri maximum opening Dimensions of clamping plates 670x600mm, diameter of the central ring 125mm Closing force 80 tonnes (800kN) Maximum injection pressure 2000bar, injection speed 222mm/s Maximum stroke volume 160mm (154cm") Number of circuit coolers 12 with float pressure gauge (8x fixed side, 4x movable) 1x control of hydraulic cores Integrated regulator and 24 heating zones.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 48 |
| Last activity | Oct. 29, 2026 |
Clamping force: 80 t Screw diameter: 35 mm Distance between tie bars V: 600 mm Distance between tie bars H: 670 mm Shot volume: 154 cm3 Type: Horizontal Drive: Hydraulic Engel e-victory 310/80 Year of manufacture 2008, 48765 engine hours Machine weight 5700Kg Prümer sneku 35mm, standard Minimum mold height 245mm, distance between plates 635mm pri maximum opening Dimensions of clamping plates 670x600mm, diameter of the central ring 125mm Closing force 80 tonnes (800kN) Maximum injection pressure 2000bar, injection speed 222mm/s Maximum stroke volume 160mm (154cm") Number of circuit coolers 12 with float pressure gauge (8x fixed side, 4x movable) 1x control of hydraulic cores Integrated regulator and 24 heating zones.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Engel e-victory 310/80 injection molding machine, manufactured in 2008, is a robust hydraulic horizontal type designed for precision molding tasks. It features a clamping force of 80 tonnes (800 kN) and a screw diameter of 35 mm, suitable for handling a variety of molding applications. The machine has tie bar spacing of 670 mm horizontally and 600 mm vertically, providing ample space for mold installation and operation.
The injection unit offers a maximum injection pressure of 2000 bar and a shot volume of approximately 154 cm³, with an injection speed reaching up to 222 mm/s. The maximum stroke volume is 160 mm. The machine is equipped with a bi-metal screw, enhancing its durability and performance during operation. The opening of the press is 670 mm, allowing for flexible mold height accommodation.
The clamping plates measure 670 by 600 mm, with a central ring diameter of 125 mm. The machine weight is approximately 5700 kg, reflecting its solid construction. Cooling is managed through 12 circuit coolers, including 8 on the fixed side and 4 on the movable side, each with float pressure gauges to monitor performance. It also includes integrated control for hydraulic cores and features 24 heating zones regulated for precise temperature control.
From the visible components, the machine has a control panel equipped with multiple buttons and a screen, protected by a transparent cover that shows some wear and scratches. Safety features include visible warning signs for electrical hazards and a red emergency stop button on the control panel. The machine's exterior displays some scratches and scuff marks, indicating typical wear consistent with industrial use.
This Engel e-victory 310/80 is not equipped with a robot, emphasizing manual operation. Overall, it is a well-constructed injection molding machine suitable for various production environments requiring reliable hydraulic injection molding capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
