Contact us to receive an offer.
| Manufacturer | Engel |
|---|---|
| Model | E-Victory 170H/50V/120 combi |
| Year | 2015 |
| Location | Slovakia
|

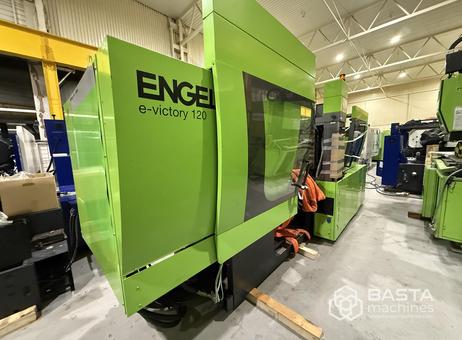

This listing is for an Engel E-Victory 170H/50V/120 combi injection moulding machine, manufactured in 2015. The machine has a clamping force of 120 tons (1200 kN) and features an opening stroke of 505 mm. It is equipped with a bi-metal screw with a diameter of 25 mm, capable of applying a specific injection pressure of 2400 bar. The machine includes two injection units: the first with a 25 mm screw diameter and a maximum swept volume of 59 cm³, and the second with a 20 mm screw diameter and a maximum swept volume of 25 cm³. Both injection units have maximum screw speeds of 400 and 450 rpm respectively, and injection rates around 104–109 cm³/s. The machine also features an ejector stroke of 130 mm with an ejector force of 39.8 kN and a pump drive power of approximately 21.4 kW.

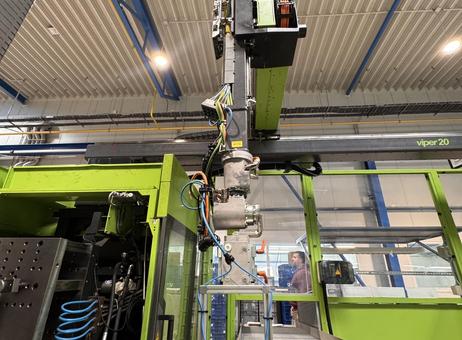

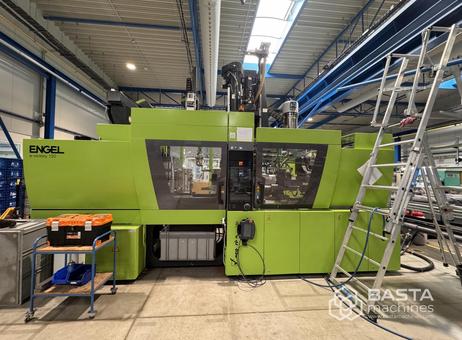

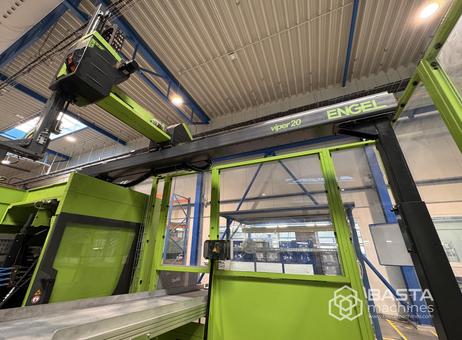

This Engel E-Victory model is equipped with an Engel Viper 20 robotic arm, providing automation capabilities. The robotic arm is mounted above the machine and includes cable and hose connections to support its function. The machine is enclosed within a green protective housing with transparent panels, allowing visibility into the working area while providing safety. The front panel includes glass viewing windows and a control panel with buttons and a display on the front right side for operational control.

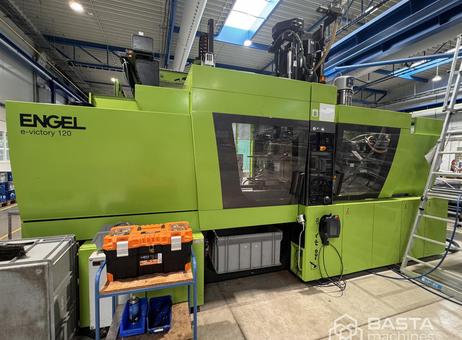

The machine is presented clean and appears well-maintained within a factory environment. Additional accessories visible include a toolbox with an orange lid and a blue trolley placed in front of the machine. Overhead structures and piping are present above the machine, indicating integration into a larger production setup. This machine is suitable for industrial injection moulding applications requiring precise control and automation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Engel E-Victory 170H/50V/120 combi (2015) 2k machine Robot Engel Viper 20 Linear CC300 controll Clamping force: 1200 kN Opening stroke: 505 mm Ejector stroke: 130 mm Ejector force: 39.8 kN Pump drive power: 21.361 kW Injection unit 1 Screw diameter: 25 mm Max. swept volume: 59 cm³ Screw speed max: 400 r/min Screw speed max (current): 400 r/min Injection rate: 109 cm³/s Injection rate (increased): 109 cm³/s Specific injection pressure: 2400 bar Specific injection pressure (increased): 2400 bar Injection unit 2 Screw diameter: 20 mm Max. swept volume: 25 cm³ Screw speed max: 450 r/min Injection rate: 104 cm³/s Specific injection pressure: 2400 bar Machine with conveyor. Working hours : 41.427 h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 48 |
| Last activity | Oct. 27, 2026 |
Engel E-Victory 170H/50V/120 combi (2015) 2k machine Robot Engel Viper 20 Linear CC300 controll Clamping force: 1200 kN Opening stroke: 505 mm Ejector stroke: 130 mm Ejector force: 39.8 kN Pump drive power: 21.361 kW Injection unit 1 Screw diameter: 25 mm Max. swept volume: 59 cm³ Screw speed max: 400 r/min Screw speed max (current): 400 r/min Injection rate: 109 cm³/s Injection rate (increased): 109 cm³/s Specific injection pressure: 2400 bar Specific injection pressure (increased): 2400 bar Injection unit 2 Screw diameter: 20 mm Max. swept volume: 25 cm³ Screw speed max: 450 r/min Injection rate: 104 cm³/s Specific injection pressure: 2400 bar Machine with conveyor. Working hours : 41.427 h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for an Engel E-Victory 170H/50V/120 combi injection moulding machine, manufactured in 2015. The machine has a clamping force of 120 tons (1200 kN) and features an opening stroke of 505 mm. It is equipped with a bi-metal screw with a diameter of 25 mm, capable of applying a specific injection pressure of 2400 bar. The machine includes two injection units: the first with a 25 mm screw diameter and a maximum swept volume of 59 cm³, and the second with a 20 mm screw diameter and a maximum swept volume of 25 cm³. Both injection units have maximum screw speeds of 400 and 450 rpm respectively, and injection rates around 104–109 cm³/s. The machine also features an ejector stroke of 130 mm with an ejector force of 39.8 kN and a pump drive power of approximately 21.4 kW.
This Engel E-Victory model is equipped with an Engel Viper 20 robotic arm, providing automation capabilities. The robotic arm is mounted above the machine and includes cable and hose connections to support its function. The machine is enclosed within a green protective housing with transparent panels, allowing visibility into the working area while providing safety. The front panel includes glass viewing windows and a control panel with buttons and a display on the front right side for operational control.
The machine is presented clean and appears well-maintained within a factory environment. Additional accessories visible include a toolbox with an orange lid and a blue trolley placed in front of the machine. Overhead structures and piping are present above the machine, indicating integration into a larger production setup. This machine is suitable for industrial injection moulding applications requiring precise control and automation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
