| Manufacturer | Dörries |
|---|---|
| Model | CTE 320/3400 |
| Year | 1981 |
| Location | Germany
|

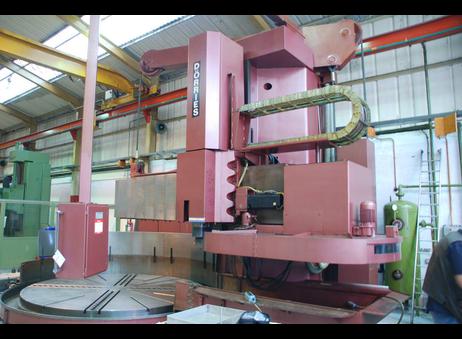

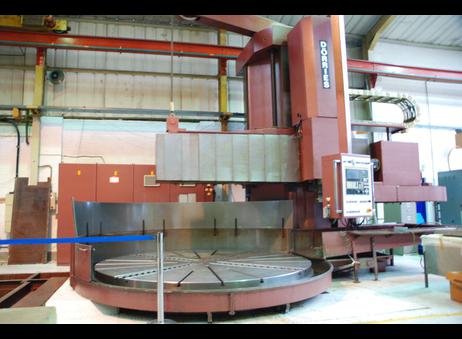

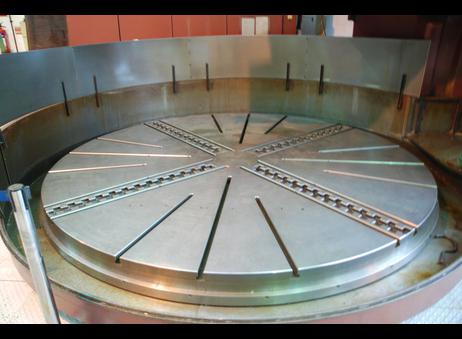

This listing is for a Dörries vertical turret lathe, model CTE 320/3400, manufactured in 1981. The machine features a large circular worktable with a faceplate diameter of 3200 mm and a swing diameter of 5100 mm, capable of handling workpieces with a maximum weight of 60,000 kg. The turning height is 2505 mm, providing ample space for machining large components.

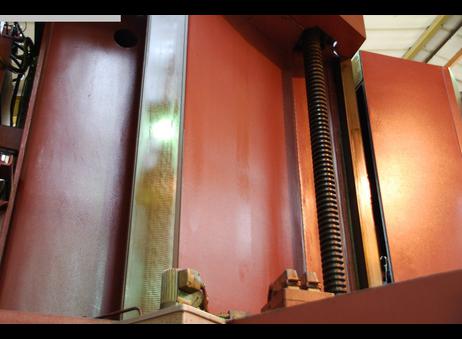

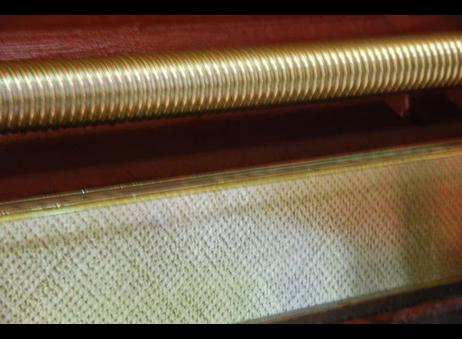

The machine is equipped with a single vertical column that includes a visible ball screw mechanism for vertical movement, supported by linear guides. The crossbar has an adjustment range of 1500 mm, and the ram stroke can reach up to 1250 mm. Additionally, the support adjustment extends to 2000 mm, allowing for flexible positioning during operation.
The lathe has a table load capacity of 60 tonnes and a rotation speed range of 0.8 to 100 rpm, controlled continuously. It is powered by a 75 kW main spindle drive. The feed rate ranges from 1 to 1000 mm per minute, with a rapid traverse speed of 6000 mm per minute. The machine's overall dimensions are approximately 9300 mm in length, 6100 mm in width, and 6000 mm in height, with a total weight of about 70 tonnes.

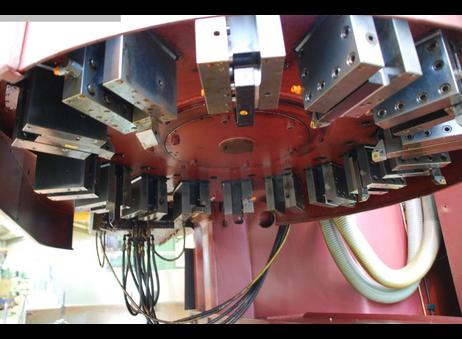

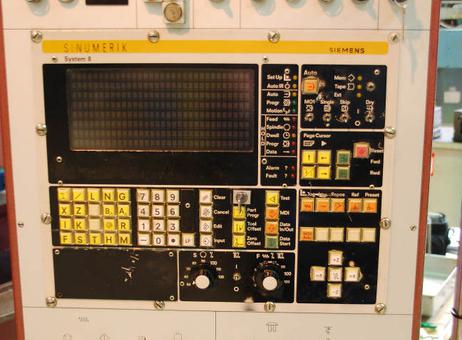

Control is provided by a Siemens 8T CNC system, with a 16-position tool changer to facilitate diverse machining tasks. The control panel is mounted on the right side of the machine for operator convenience. A vertical protective guard surrounds the worktable perimeter, enhancing safety during operation.

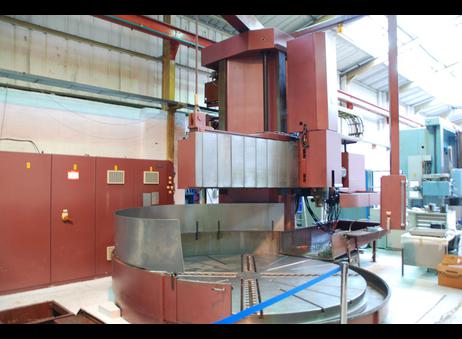

The machine is painted in a reddish-brown color and is situated in a workshop environment. A blue safety barrier ribbon is visible in front of the machine, indicating adherence to safety protocols. Optional upgrades include new electrical equipment and Siemens SINUMERIK 840D sl CNC control, which can be installed by a specialist company.
This vertical turret lathe is suitable for heavy-duty machining of large and heavy components, offering robust construction and precise CNC control for demanding industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Vertical turret lathe - single column
Make Dörries
Type CTE 320/3400
Year of construction 1981
Control CNC
Faceplate diameter 3200 mm
Swing diameter 5100 mm
Turning height 2505 mm
Crossbar - adjustment 1500 mm
Ram stroke - max. 1250 mm
Support adjustment 2000 mm
Control Siemens 8 T
Tool changer 16 PCS
Table load 60 t
Faceplate speed range - continuously 0.8-100 rpm
Feed 0.0 1-1000 mm / min
Rapid traverse 6000 mm / min
Main spindle drive power 75 kW
Machine weight approx. 70 t
Space requirement approx. 9.3 x 6.1 x 6.0 m
DESCRIPTION
Machine is in excellent condition.
The machine can optionally also be equipped with new electrical equipment incl.
Siemens CNC control SINUMERIK 840D sl can be delivered.
The conversion will be carried out by a specialist company, warranty on parts 12
Months and 6 months personnel service.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this Dörries CTE 320/3400 manufactured?
This Dörries CTE 320/3400 vertical turret lathe was manufactured in 1981.
Is the machine currently connected?
This Dörries CTE 320/3400 vertical turret lathe is currently not connected.
Does this Dörries CTE 320/3400 have a Siemens control option?
This Dörries CTE 320/3400 vertical turret lathe includes the option for a Siemens SINUMERIK 840D sl control system.
What is the service guarantee period for this equipment?
This equipment has undergone a recent revision, with a guarantee on parts for 12 months and 6 months of service from specialized personnel.
Is this machine currently in production?
This Dörries CTE 320/3400 vertical turret lathe is not currently in production.
What types of parts has this equipment been used to machine?
This equipment has been used for machining various types of parts.
Are foundation plans included with this Dörries CTE 320/3400?
This Dörries CTE 320/3400 vertical turret lathe is available with foundation plans included.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
